Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 4 images and 11 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — MA6892
Ventilation Hose — MA6892 (198608 – 999999)

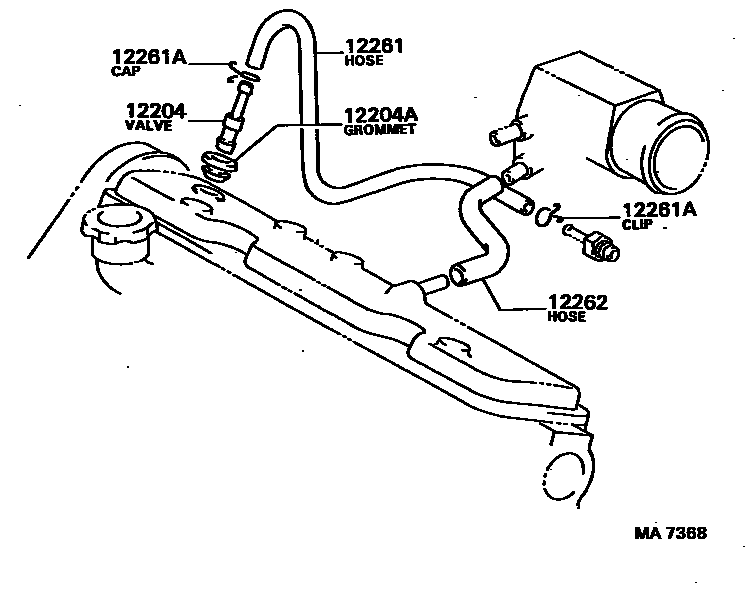

Toyota CAMRY Ventilation Hose EPC diagram — MA7368
Ventilation Hose — MA7368 (198608 – 999999)

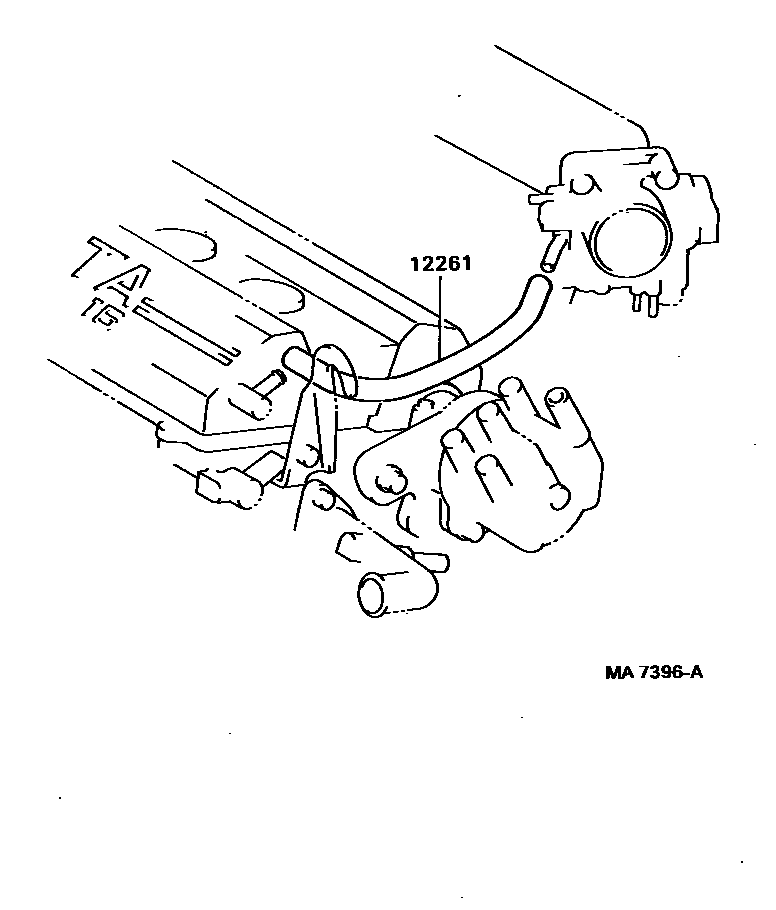

Toyota CAMRY Ventilation Hose EPC diagram — MA7396A
Ventilation Hose — MA7396A (198608 – 999999)

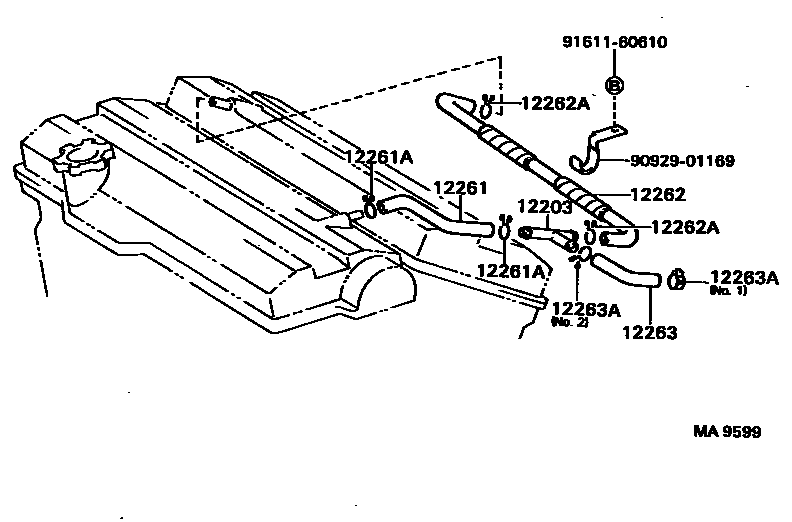

Toyota CAMRY Ventilation Hose EPC diagram — MA9599
Ventilation Hose — MA9599 (198704 – 999999)

PNC and OE references

PNCPart nameOE numbers
12203Ventilation pipe sub-assembly90413-10210
12204Ventilation valve sub-assembly12204-63010
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-10011
12222BClip (for ventilation duct)96132-31000
12261Ventilation Hose12261-62010 · 12261-63030 · 12261-64040 · 12261-74020 · 12261-88361
12261AClip or clip (for vent hose)90467-14001 · 90467-14017 · 90467-14082 · 90467-15006 · 90467-15120
12262Ventilation hose No. 212262-62010 · 12262-63020
12262AClamp (for vent hose No. 2)90467-14017 · 90467-15006
12263No. 3 ventilation hose12263-62010
12263AClip (for ventilation hose)90467-14017 · 90467-15006 · 90467-15016
