Toyota CAMRY Engine Mounting — Figure 1107

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 10 images and 22 PNC and OE references.

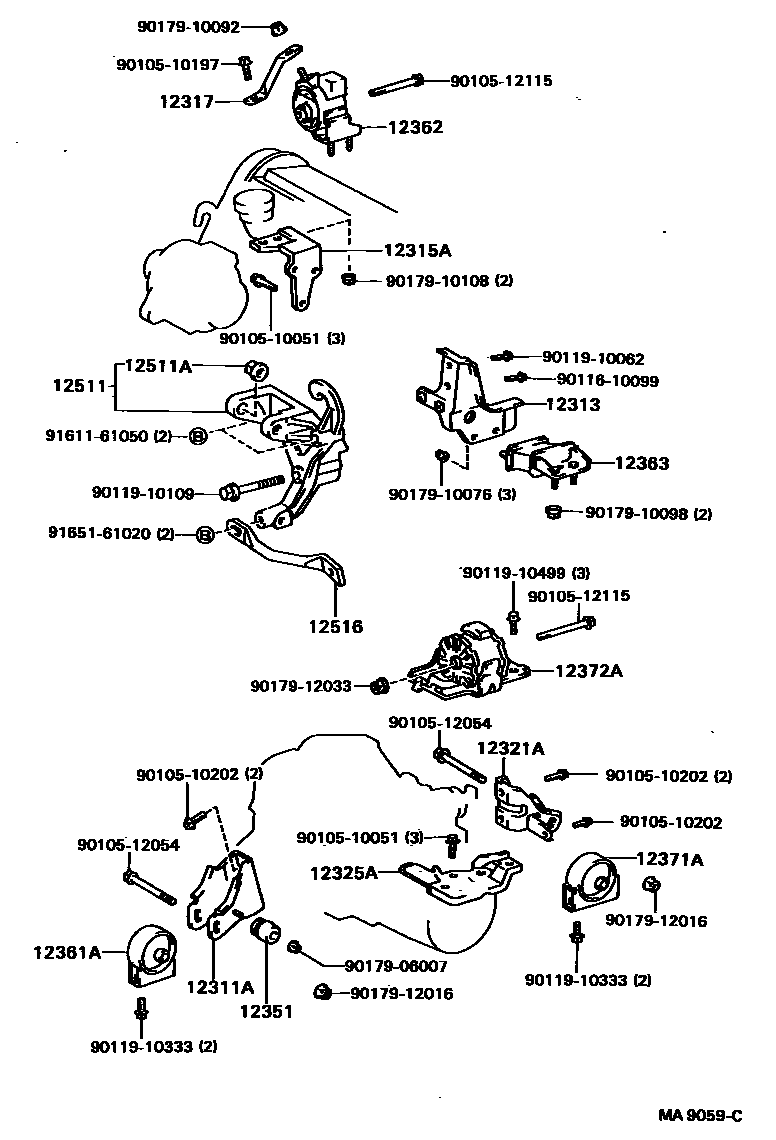

Toyota CAMRY Engine Mounting EPC diagram — MA9059C — Engine Mounting — MA9059C (198608 – 999999)

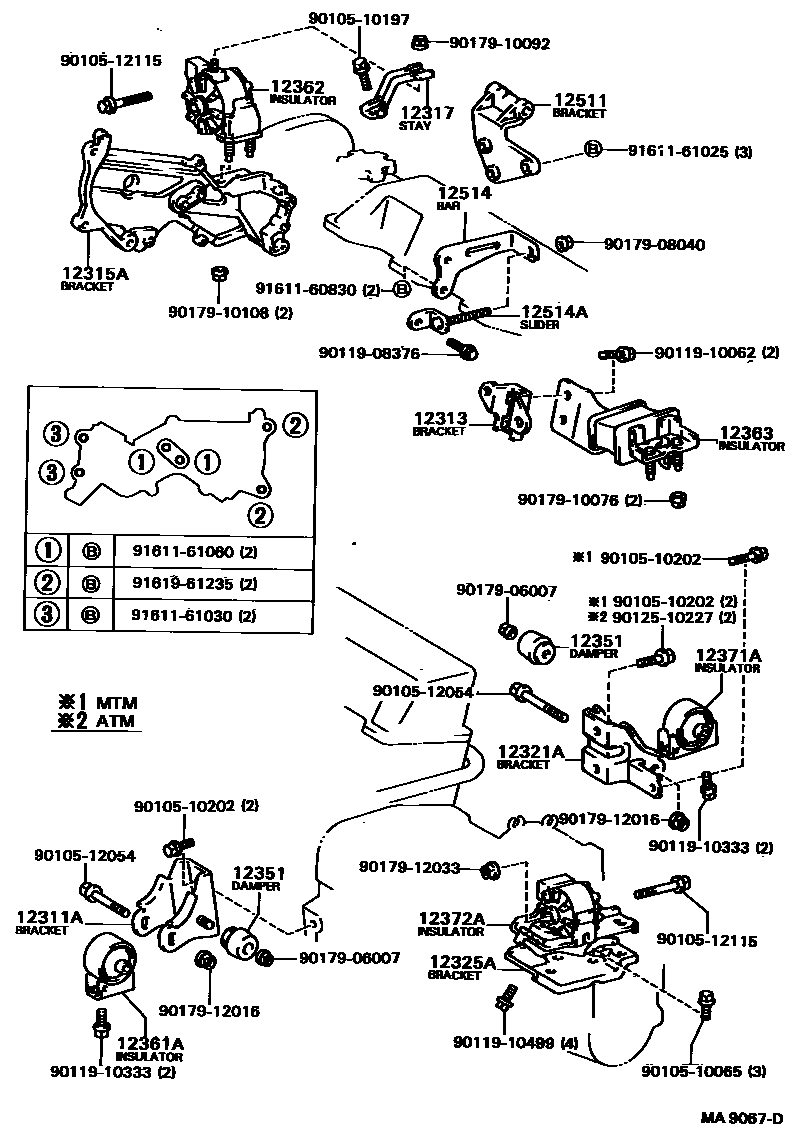

Toyota CAMRY Engine Mounting EPC diagram — MA9067D — Engine Mounting — MA9067D (198608 – 999999)

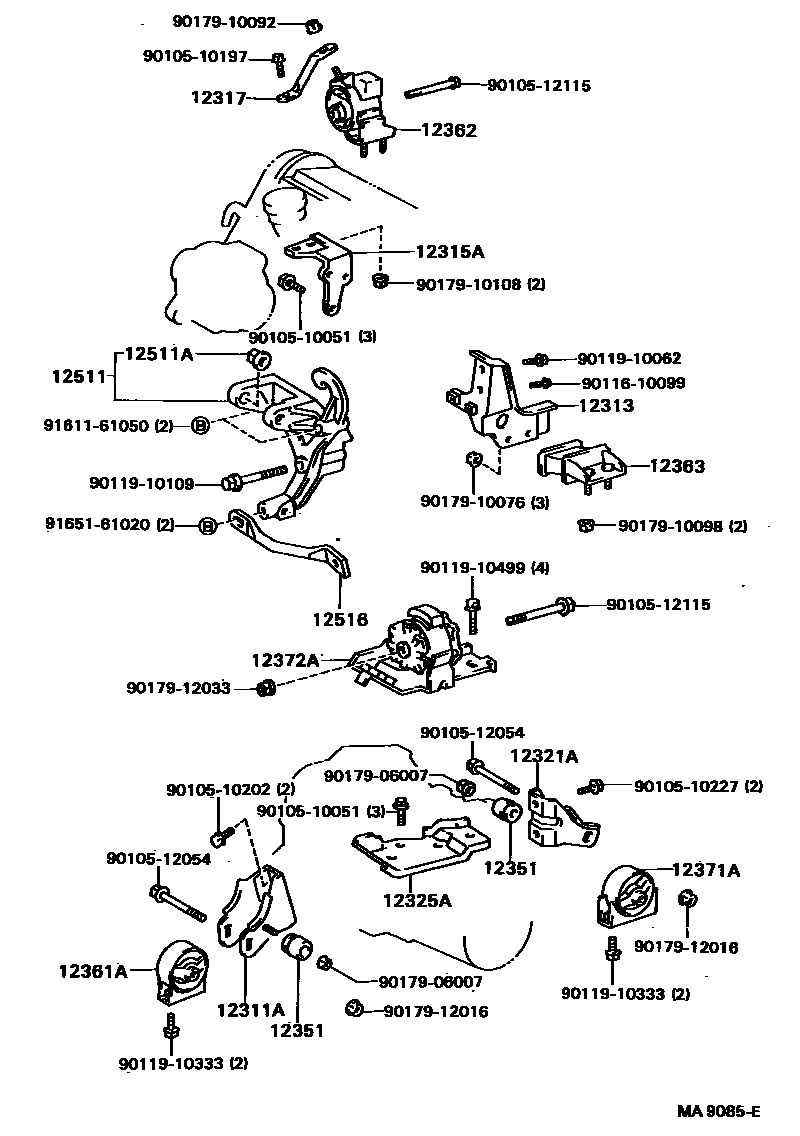

Toyota CAMRY Engine Mounting EPC diagram — MA9085E — Engine Mounting — MA9085E (198608 – 999999)

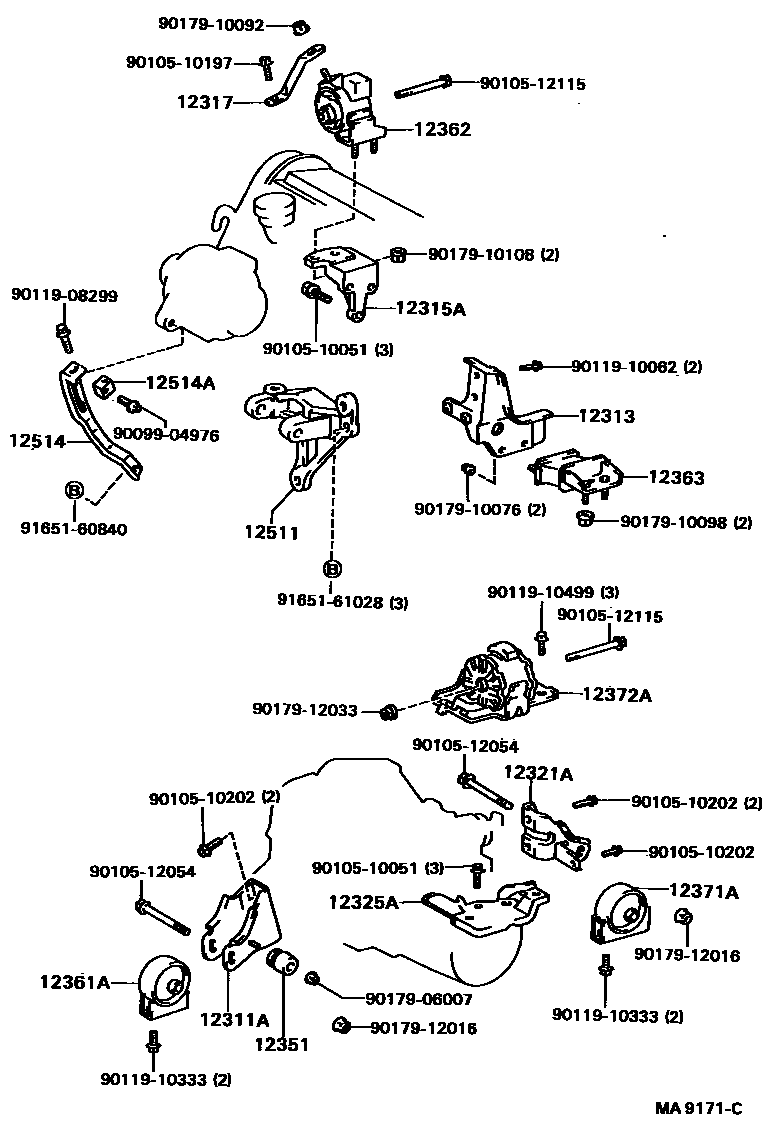

Toyota CAMRY Engine Mounting EPC diagram — MA9171C — Engine Mounting — MA9171C (198608 – 999999)

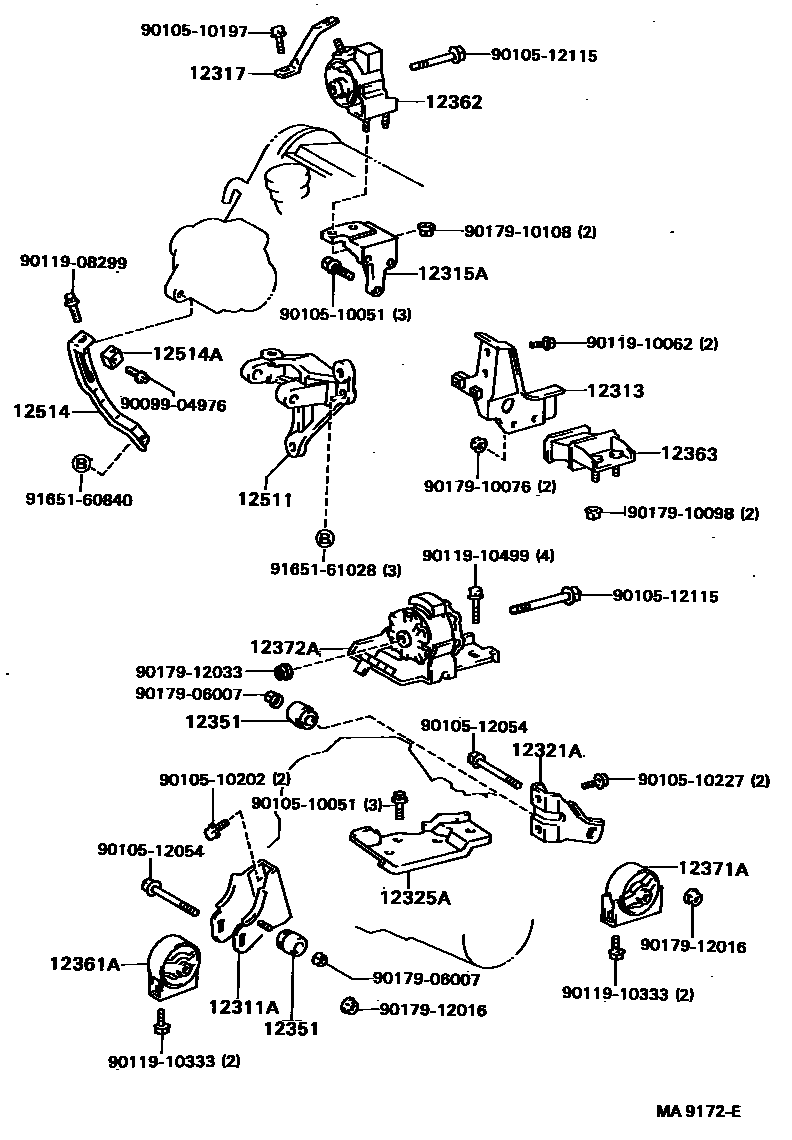

Toyota CAMRY Engine Mounting EPC diagram — MA9172E — Engine Mounting — MA9172E (198608 – 999999)

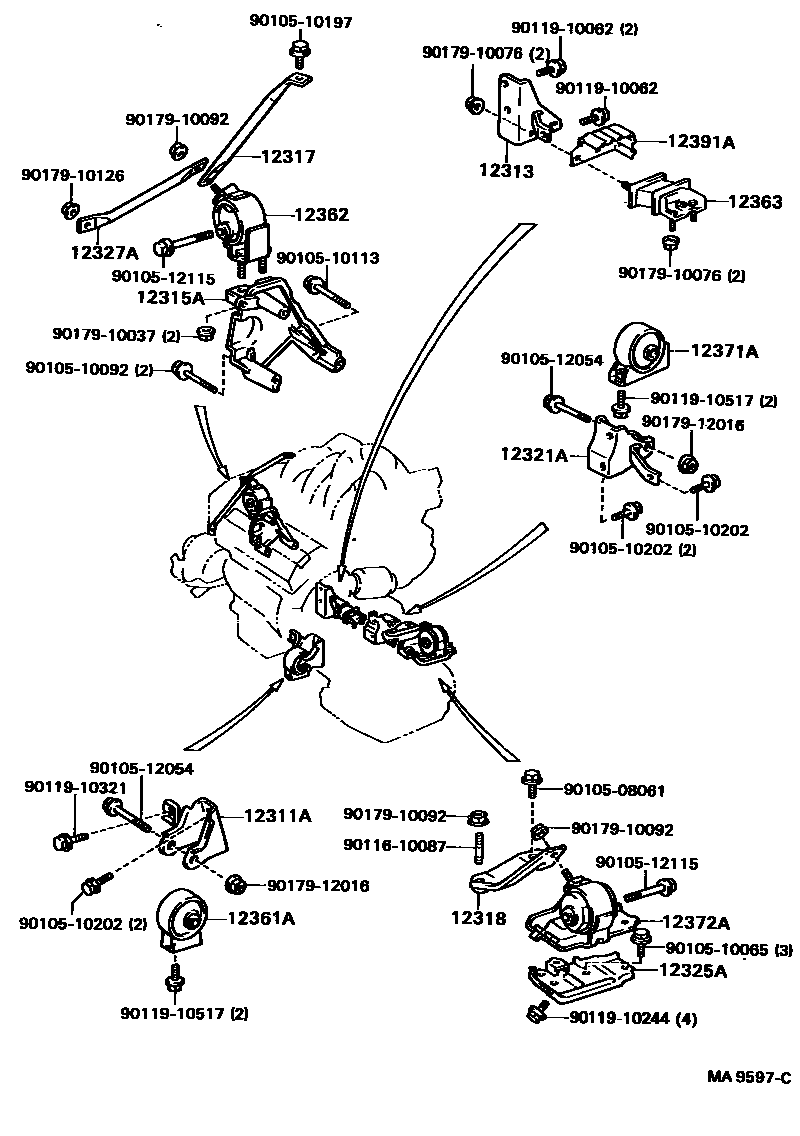

Toyota CAMRY Engine Mounting EPC diagram — MA9597C — Engine Mounting — MA9597C (198704 – 999999)

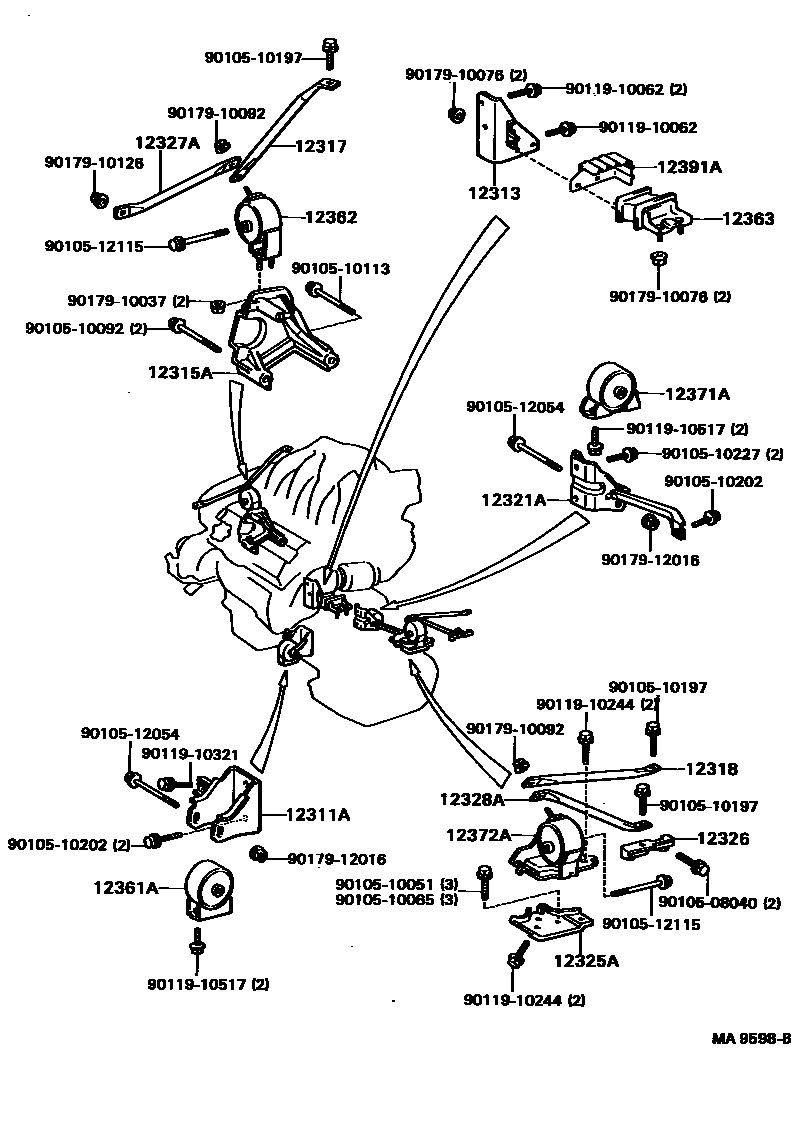

Toyota CAMRY Engine Mounting EPC diagram — MA9598B — Engine Mounting — MA9598B (198704 – 999999)

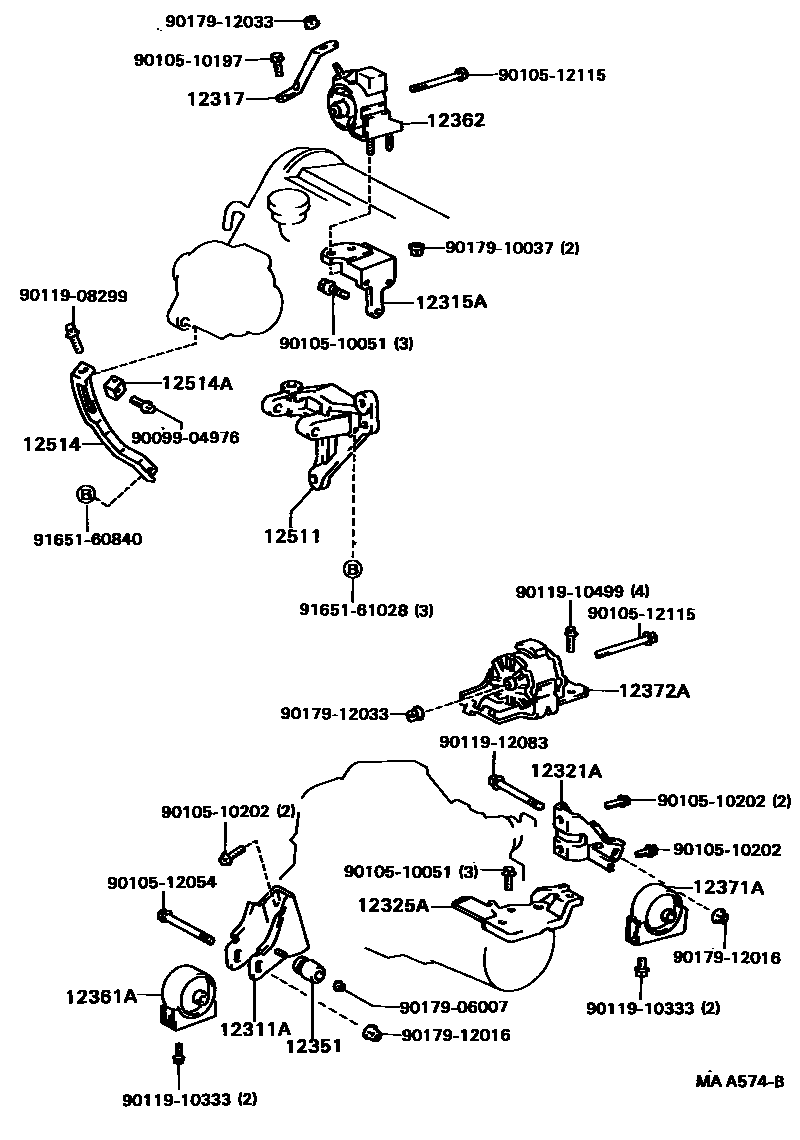

Toyota CAMRY Engine Mounting EPC diagram — MAA574B — Engine Mounting — MAA574B (198710 – 999999)

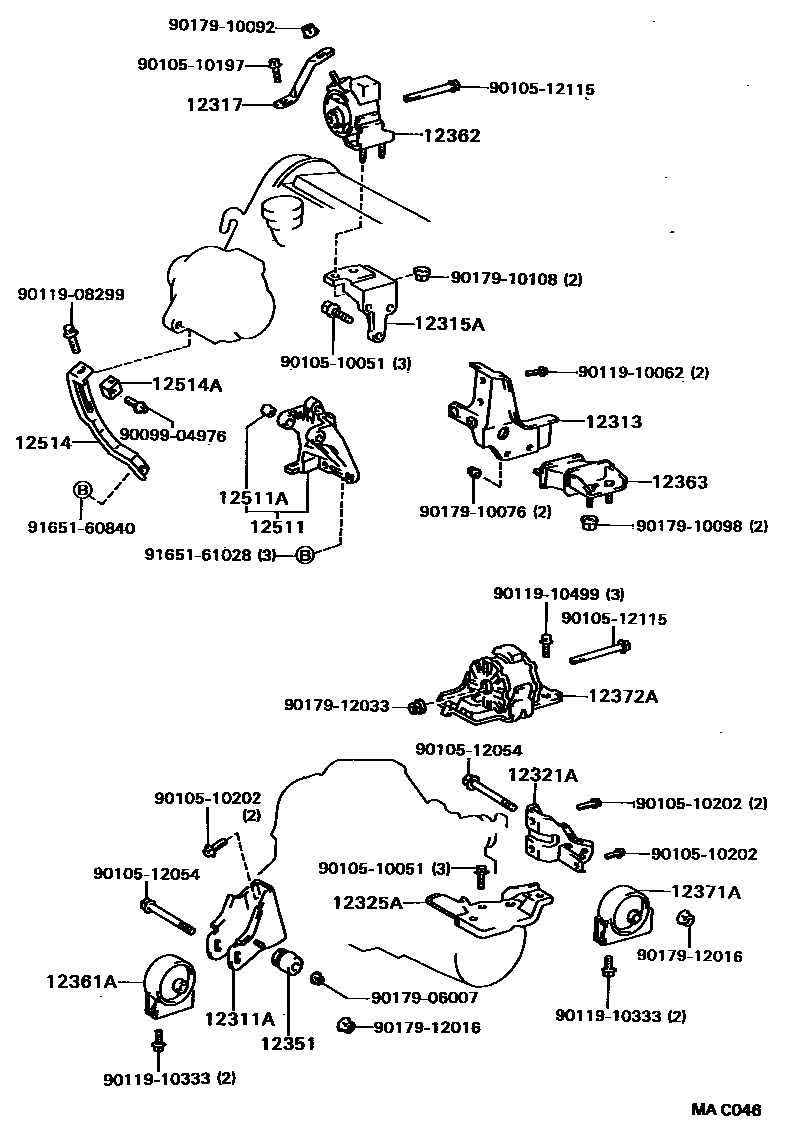

Toyota CAMRY Engine Mounting EPC diagram — MAC046 — Engine Mounting — MAC046 (198608 – 999999)

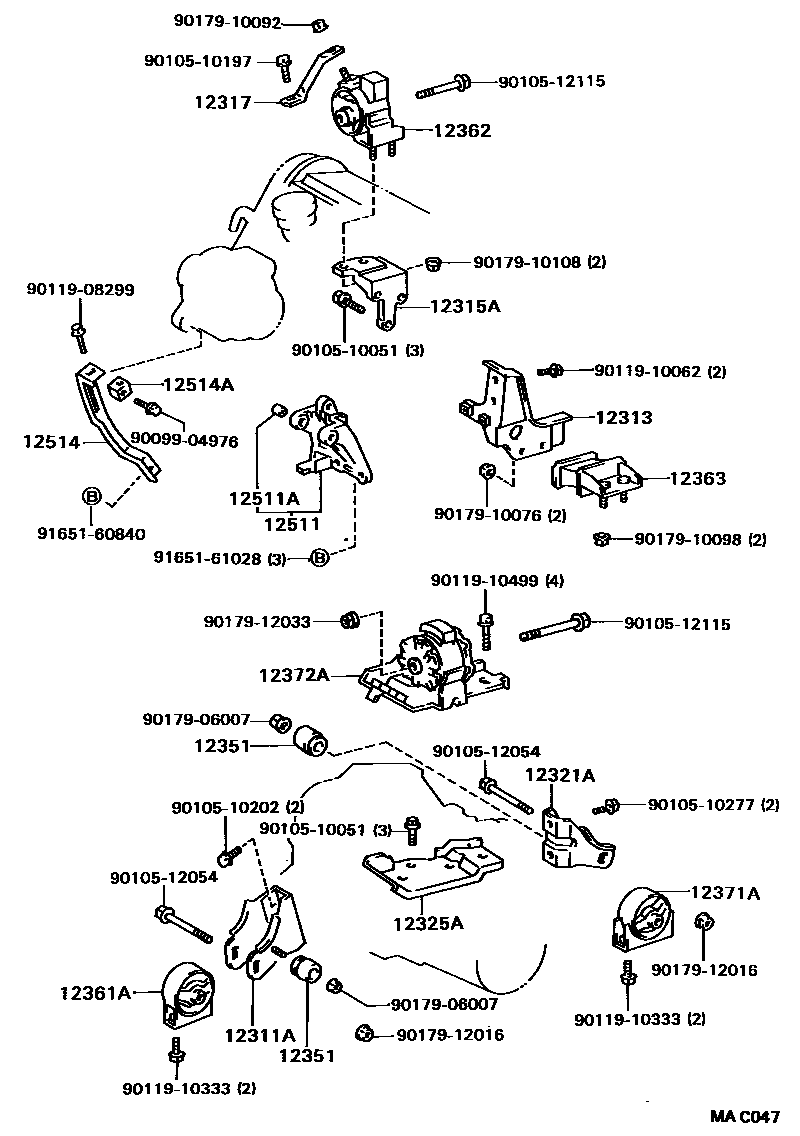

Toyota CAMRY Engine Mounting EPC diagram — MAC047 — Engine Mounting — MAC047 (198608 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12311A	Engine front mounting bracket (for transverse engine)	12311-62010 · 12311-74030 · 12311-74050
12313	Engine mount control bracket (for transversely mounted engines)	12313-62010 · 12313-64010 · 12313-74020
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-62010 · 12315-64040 · 12315-74030
12317	Engine right mounting bracket	12317-62010 · 12317-63020 · 12317-64010 · 12317-74010 · 12317-74020 · 12317-74060
12318	Engine left mounting bracket	12318-62010 · 12318-62020
12321A	Rear engine mounting bracket (for transverse engine)	12321-62010 · 12321-62020 · 12321-64110 · 12321-64120 · 12321-74060
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-62010 · 12325-62020 · 12325-74030 · 12325-74031 · 12325-74040 · 12325-74041
12326	Engine mounting bracket	12326-62010
12327A	Engine No. 2 right side mounting bracket	12327-62010
12328A	Engine No. 2 left side mounting bracket	12328-62010
12351	engine mount shock absorber	12351-63010 · 12351-64020
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-62010 · 12361-62011 · 12361-62020 · 12361-64110 · 12361-64120 · 12361-74010 · 12361-74020
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12362-62010 · 12362-64050 · 12362-74030 · 12362-74060
12363	Engine center mount vibration isolation pad	12363-64010 · 12363-74010 · 12363-74030
12371A	Engine rear mount vibration isolation pad	12371-62010 · 12371-62011 · 12371-64090 · 12371-64100 · 12371-74030 · 12371-74060
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-62010 · 12372-62020 · 12372-64060 · 12372-64070 · 12372-64071 · 12372-74040 · 12372-74050 · 12372-74052 · 12372-74080
12391A	Engine center mount vibration isolation pad	12391-62010
12511	No. 1 generator bracket	12511-63031 · 12511-64020 · 12511-74011 · 12511-74020
12511A	Generator bracket bushing	27351-70010 · 90387-10013
12514	Generator belt adjustment lever	12514-63020 · 12514-74010 · 16381-64020
12514A	Fan belt adjustment slider	16385-64011 · 16385-64020
12516	No. 2 generator bracket	12512-88362
