Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 30 PNC and OE references.

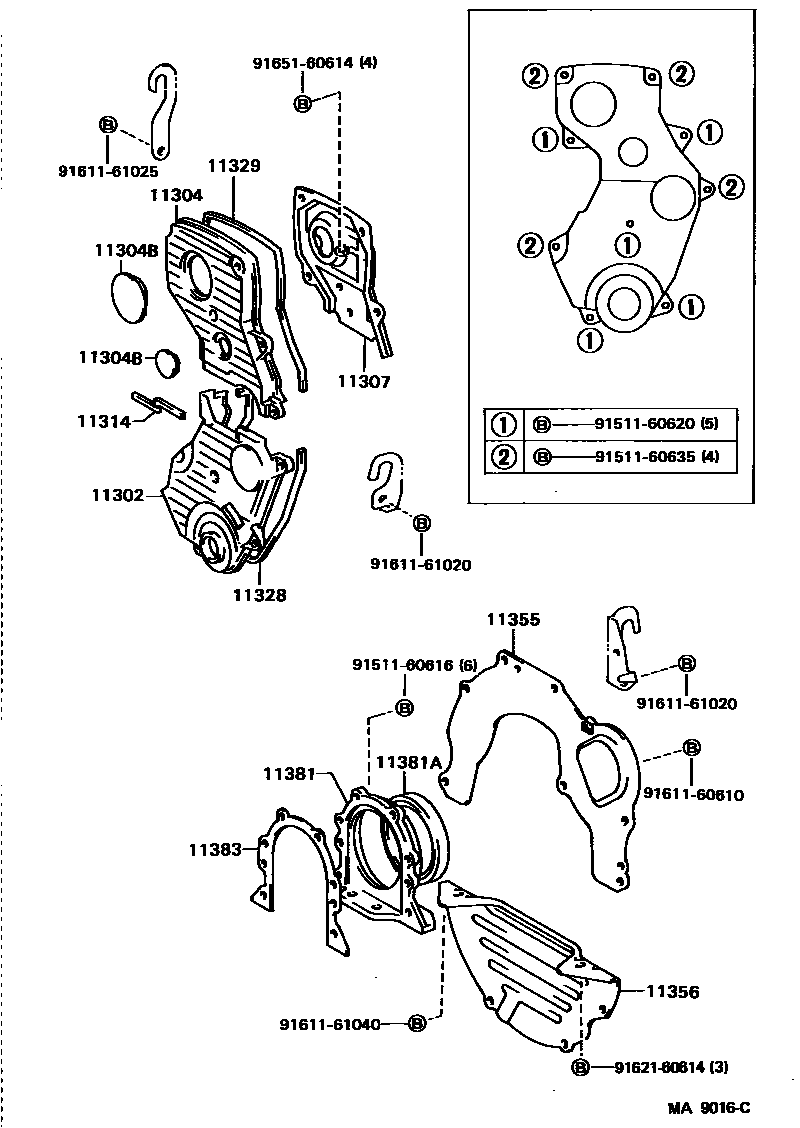

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MA9016C
Timing Gear Cover & Rear End Plate — MA9016C (198608 – 999999)

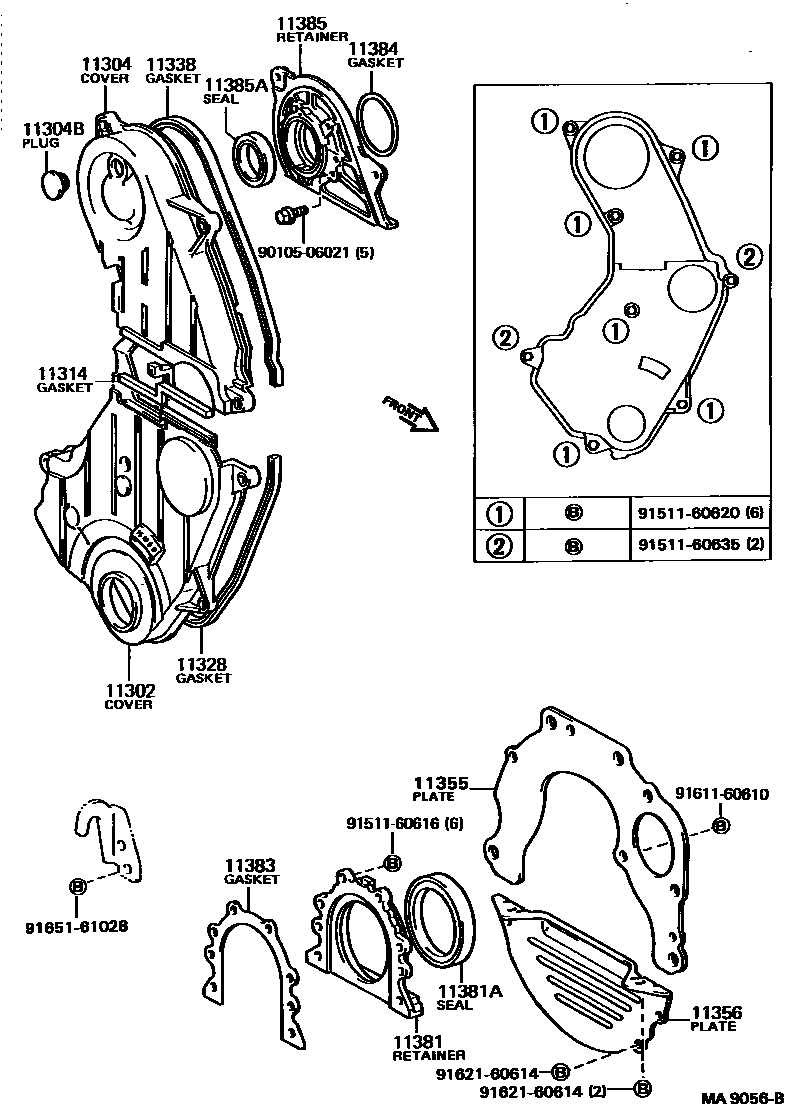

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MA9056B
Timing Gear Cover & Rear End Plate — MA9056B (198608 – 999999)

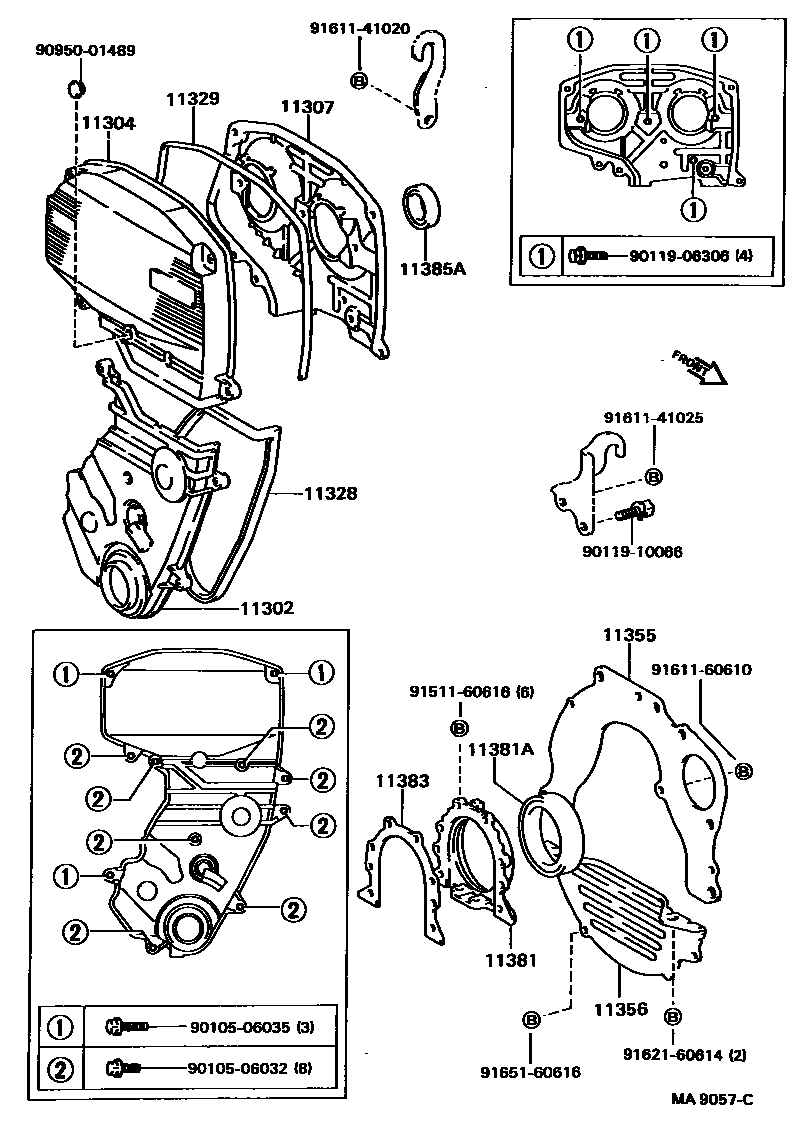

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MA9057C
Timing Gear Cover & Rear End Plate — MA9057C (198608 – 999999)

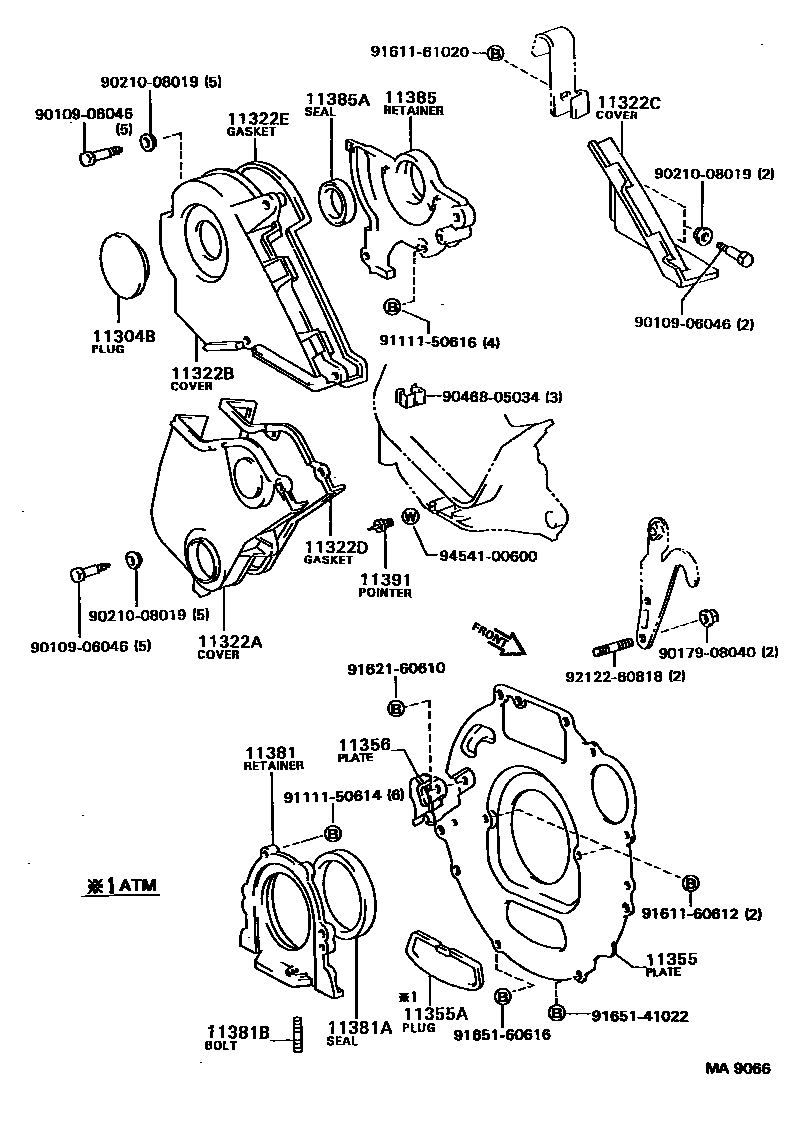

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MA9066
Timing Gear Cover & Rear End Plate — MA9066 (198608 – 999999)

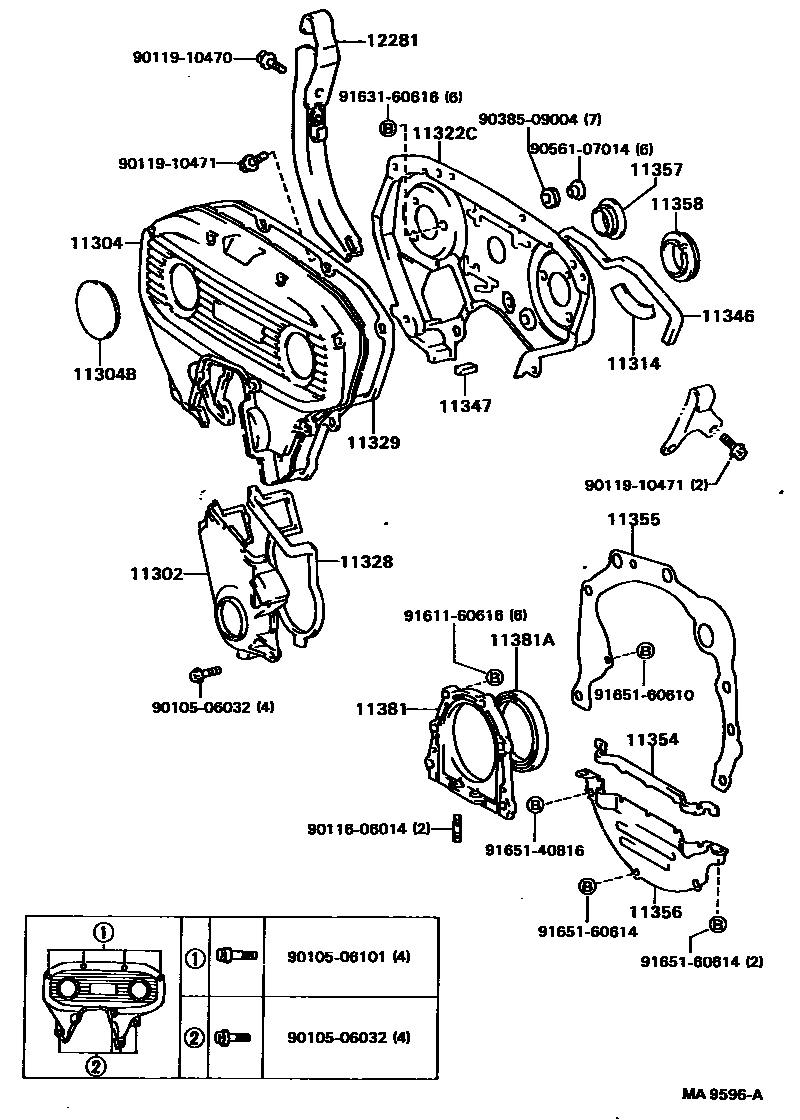

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MA9596A
Timing Gear Cover & Rear End Plate — MA9596A (198704 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-62010 · 11302-63010 · 11302-74010 · 11321-88360
11304No. 2 timing chain or timing belt cover11303-62010 · 11303-63010 · 11303-74010 · 11322-88361
11304BHalf-round plug (for No. 2 timing chain cover)90950-01334 · 90950-01357 · 90950-01390 · 90950-01489 · 90950-01497 · 90950-01554
11307No. 3 timing belt cover sub-assembly11304-74010 · 11323-88360
11314No. 2 timing chain cover gasket11319-62010 · 11319-63010
11322ANo. 1 timing belt cover11321-64010
11322BNo. 2 timing belt cover11322-64010
11322CNo. 3 timing belt cover11304-62010 · 11323-64011
11322DNo. 1 timing belt cover gasket11328-64020
11322ENo. 2 timing belt cover gasket11329-64020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-62010 · 11328-63010 · 11328-74010 · 11328-88361
11329Timing gear rear cover gasket11329-62010 · 11329-74010 · 11329-88360
11338No. 2 timing chain cover gasket11329-63010
11346No. 4 timing belt cover gasket11346-62010
11347No. 5 timing belt cover gasket11347-62010
11354Flywheel housing dust seal11354-62010
11355rear end plate11355-62010 · 11355-63021 · 11355-64032 · 11355-64042 · 11355-74010 · 11355-74040
11355AHole plug (for rear end plate)90950-01548
11356No. 2 rear end plate11356-62010 · 11356-63030 · 11356-64010
11357No. 6 timing belt cover gasket11357-62010
11358No. 7 timing belt cover gasket11358-62010
11381RETAINER, ENGINE REAR OIL SEAL11381-62010 · 11381-63011 · 11381-64012
11381ASEAL, ENGINE REAR OIL90311-85003 · 90311-90003 · 90311-92001
11381BStud bolts (for engine rear oil seal race)90116-06033
11383Engine rear oil seal seat gasket11383-63010 · 11383-88380
11384No. 2 oil seal seat ring gasket90301-65002
11385Camshaft oil seal race11382-63010 · 11382-64011
11385AOil seal (for camshaft)90311-35008 · 90311-38017 · 90311-38025
11391Timing pointer11391-64020
12281Engine No. 1 hanger12281-62011
