Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

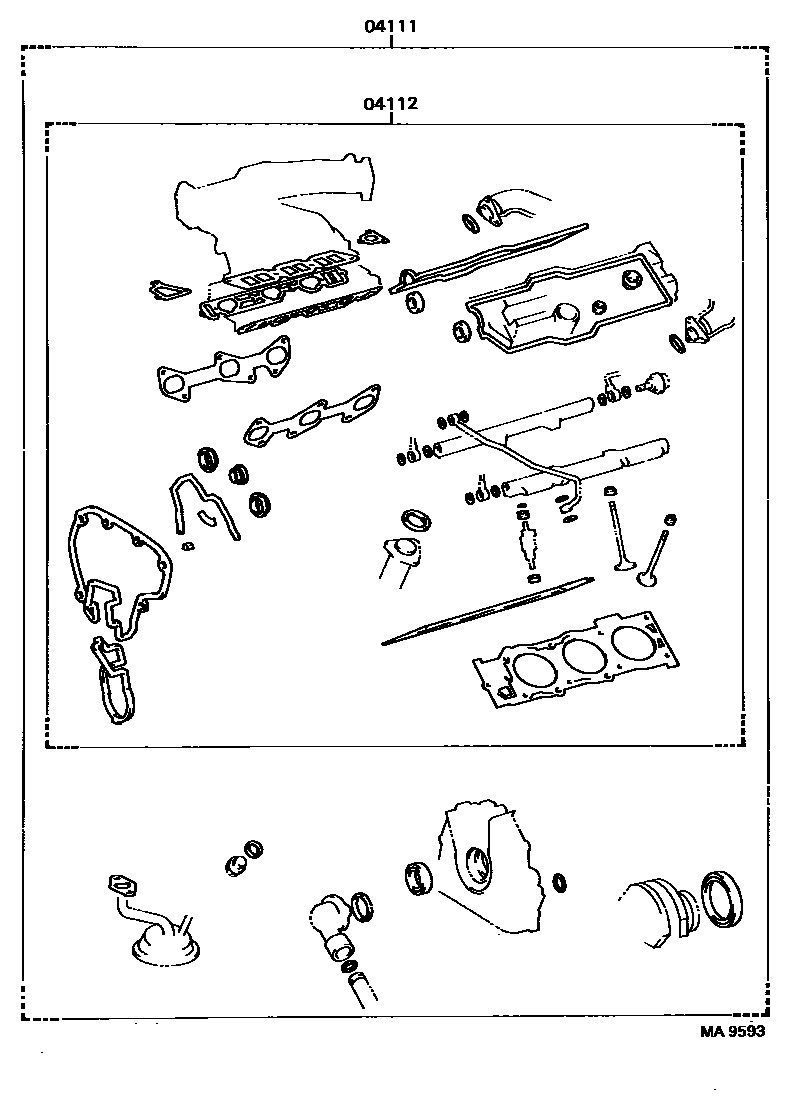

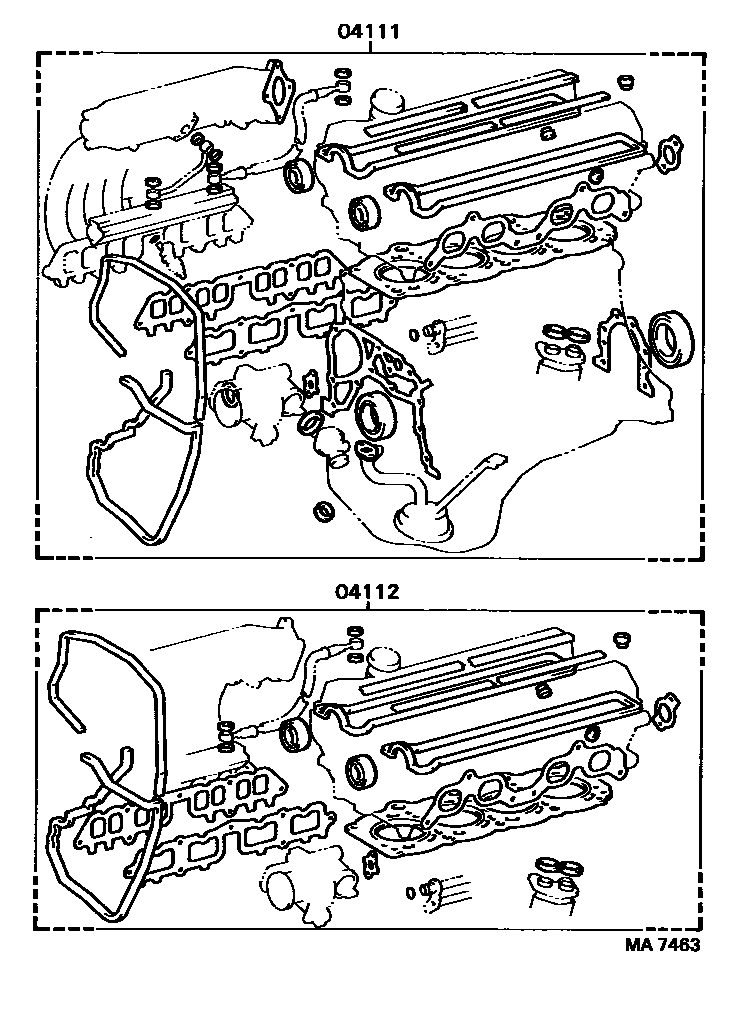

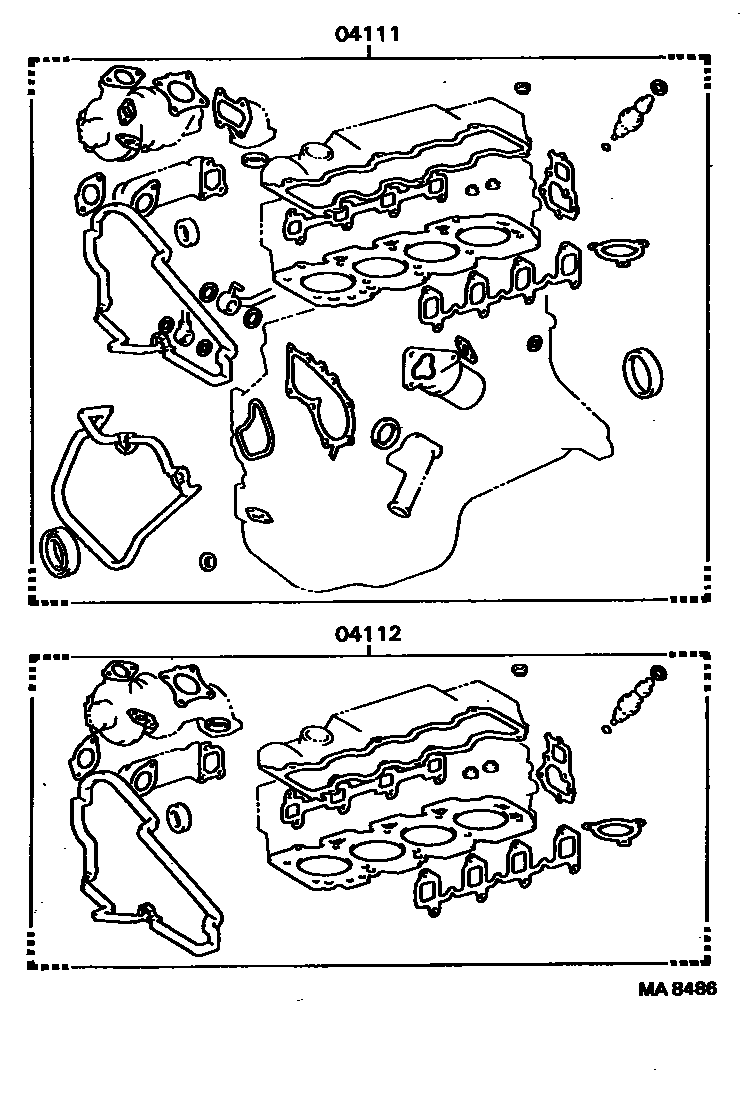

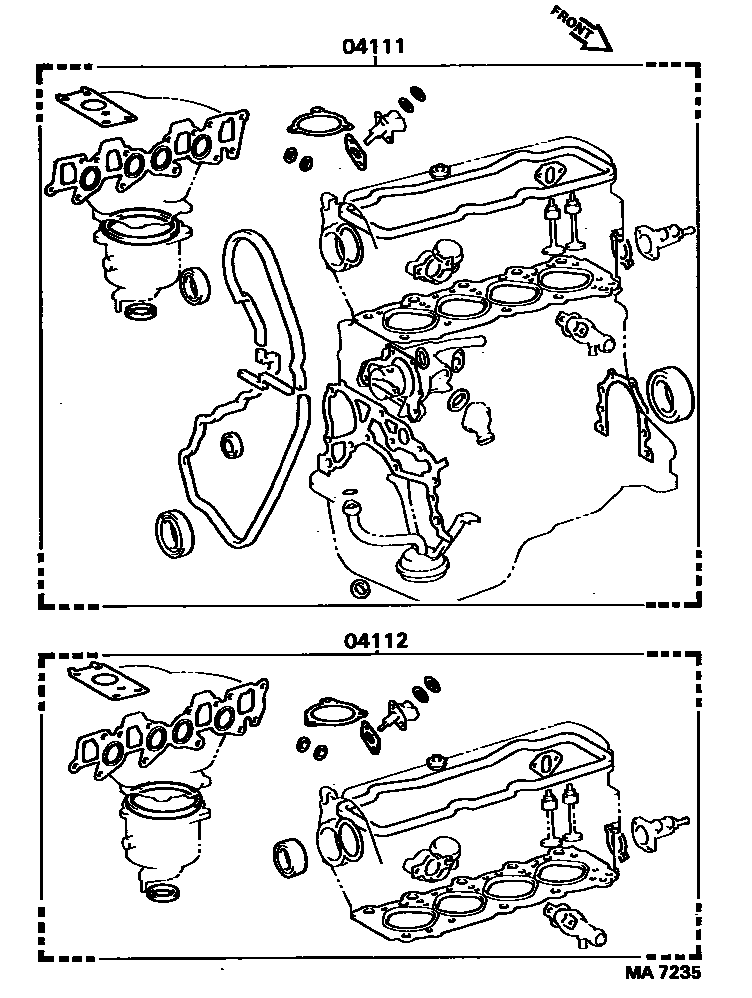

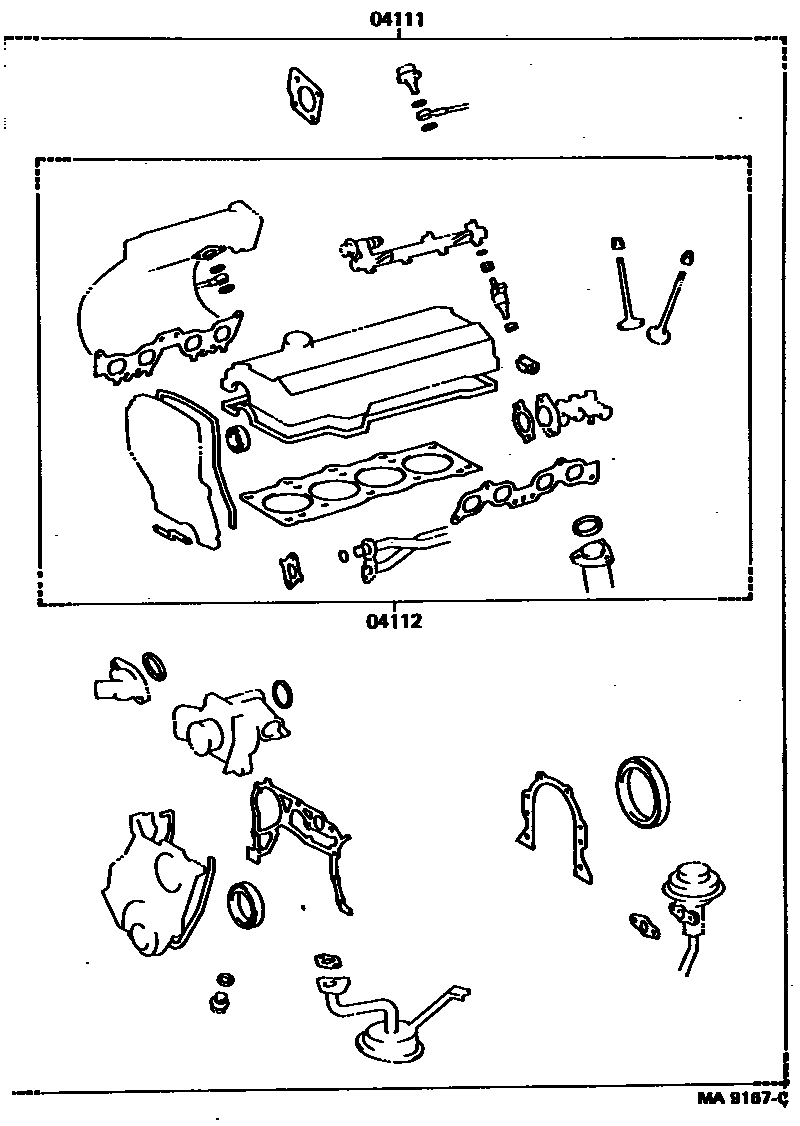

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-62010 · 04111-63031 · 04111-63032 · 04111-63033 · 04111-64100 · 04111-64101 · 04111-74031 · 04111-74032 · 04111-74033 · 04111-74040 · 04111-74041 · 04111-74042 · 04111-74050 · 04111-74051 |
| 04112 | Engine valve grinding pad assembly | 04112-62010 · 04112-63031 · 04112-63032 · 04112-64081 · 04112-64082 · 04112-74031 · 04112-74032 · 04112-74040 · 04112-74041 · 04112-74050 |
