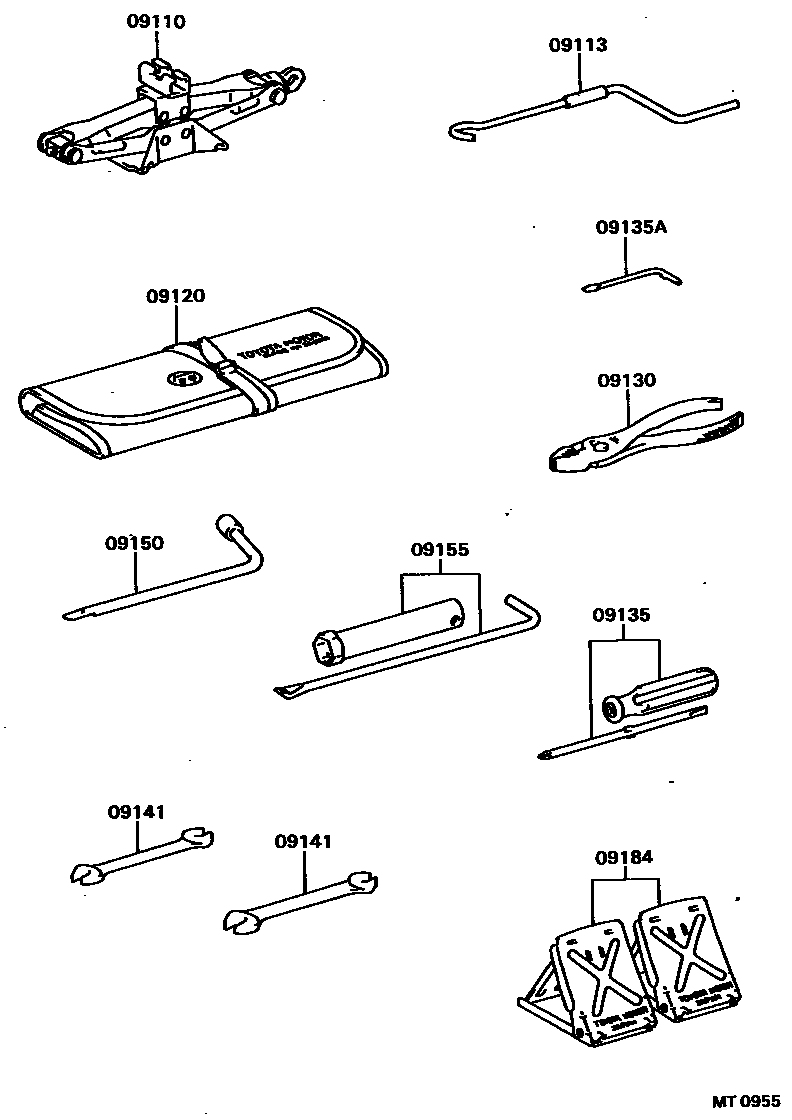

Toyota CAMRY Standard Tools — Figure 0901
Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-20060 · 09111-20070 |
| 09113 | Jack Handle | 09113-32010 |
| 09120 | Tool Bag | 09120-10030 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09135A | screwdriver tip | 09135-00012 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-40010 |
| 09155 | Spark Plug Wrench | 09155-32020 · 09155-41010 · 09155-74010 |
| 09184 | Wheel Chock | 09184-00010 |
