Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

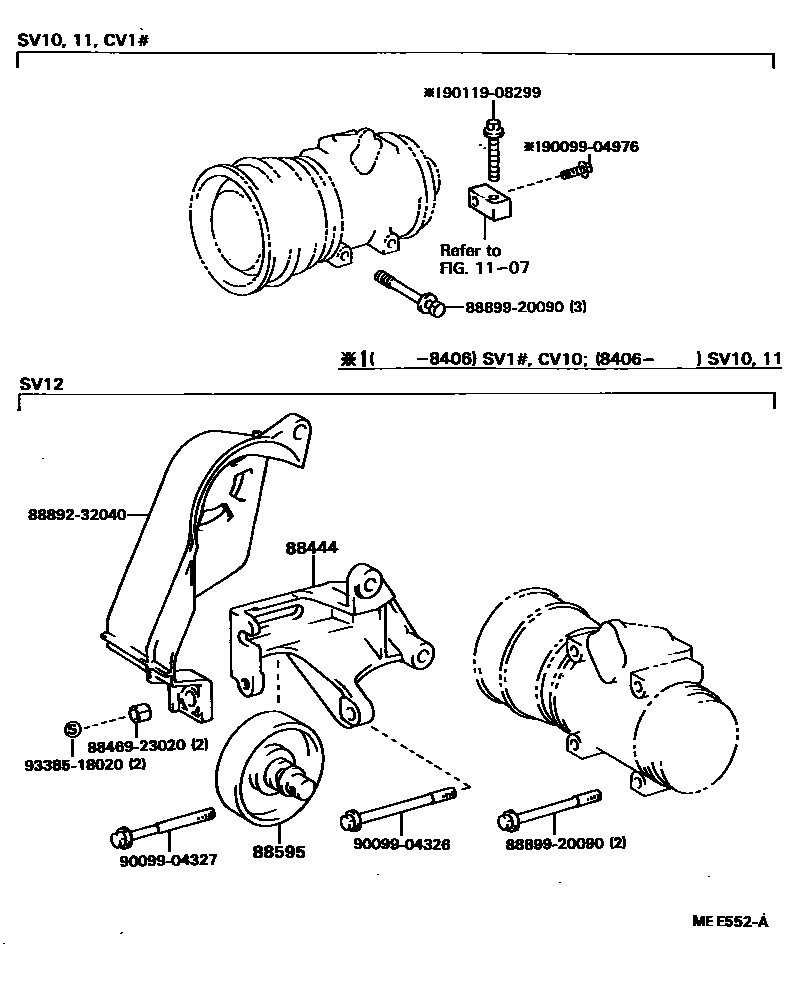

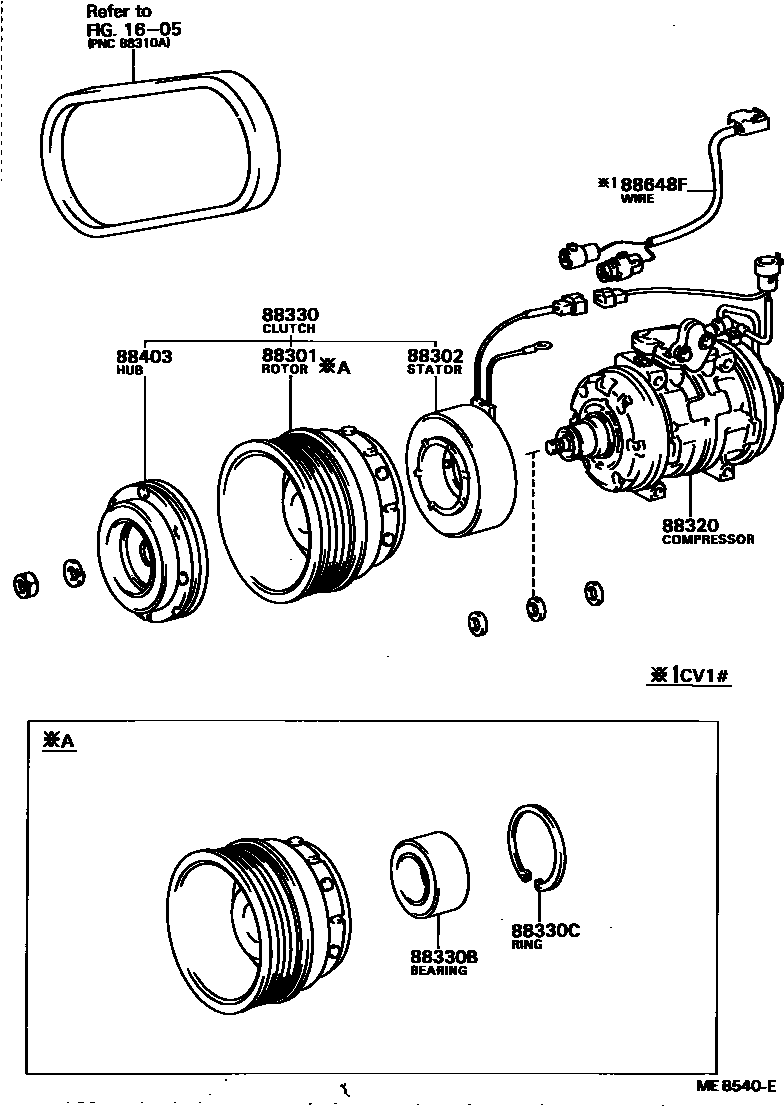

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-32010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-32010 |
| 88320 | Cooler Compressor Assembly | 88320-32010 · 88320-32050 |
| 88330 | Magnetic Clutch Assembly | 88410-32010 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07118 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 |
| 88444 | Idler gear bracket | 88444-32020 |
| 88595 | Cooler compressor idler pulley | 88440-32030 |
| 88648F | Electromagnetic clutch wiring harness | 88648-32040 |
