Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717

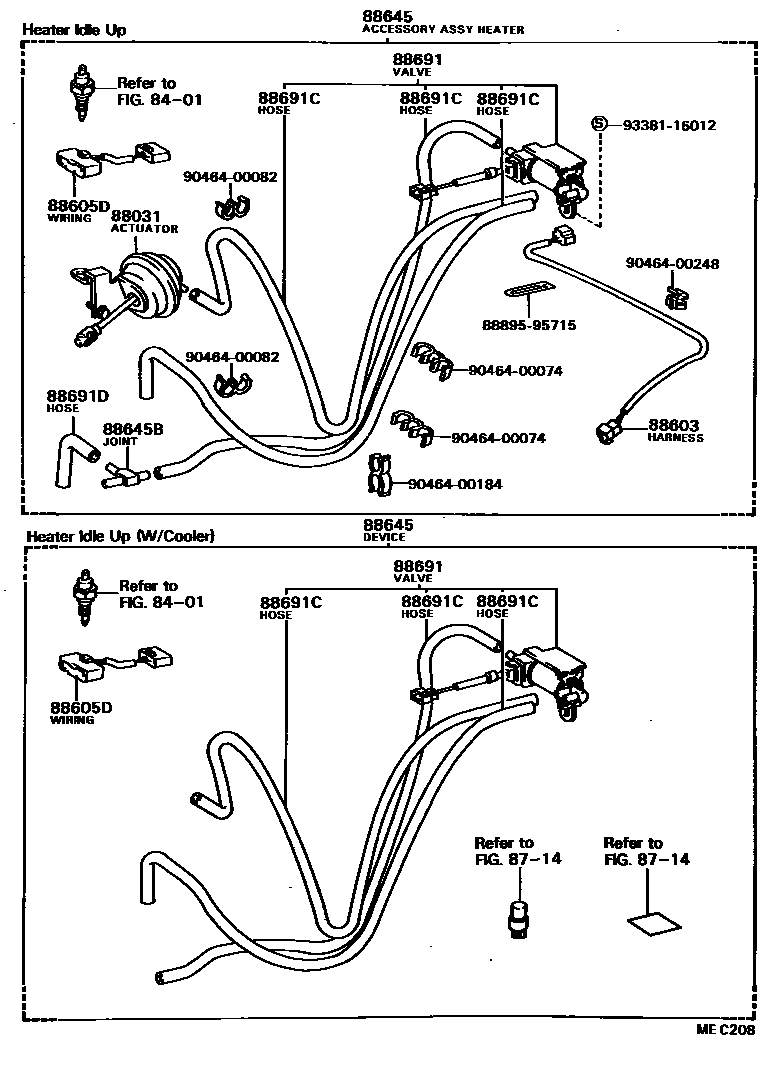

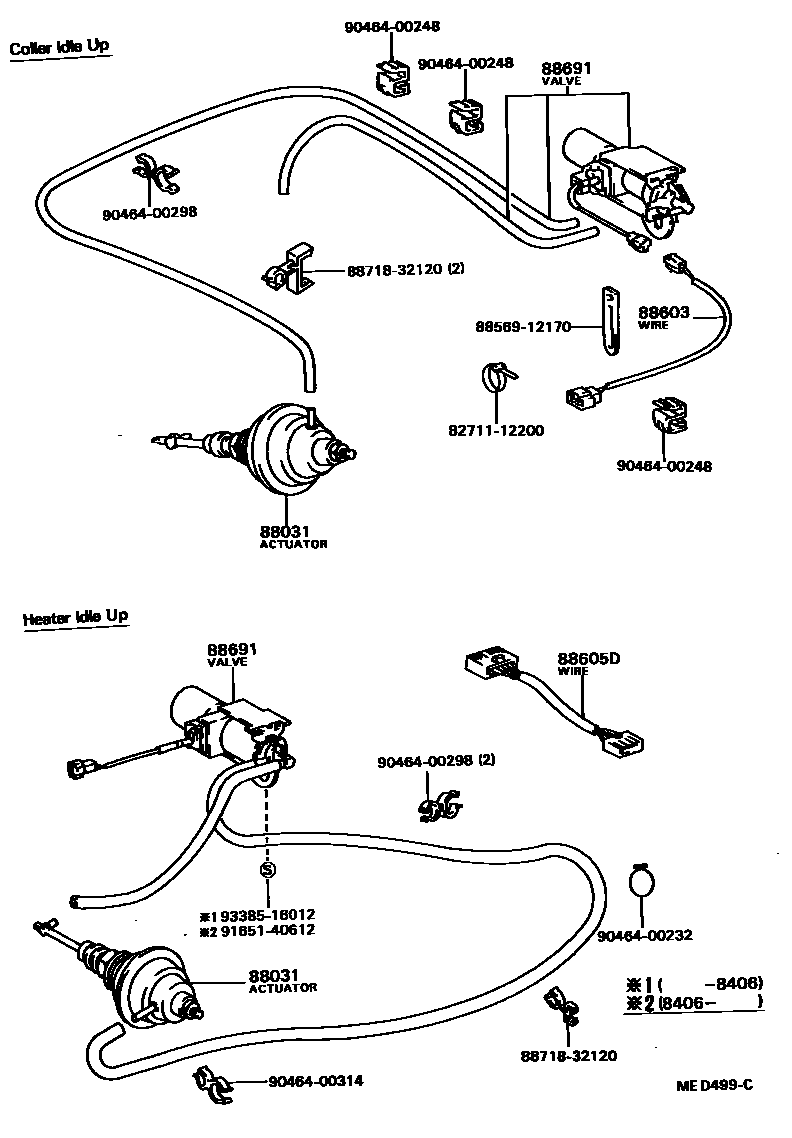

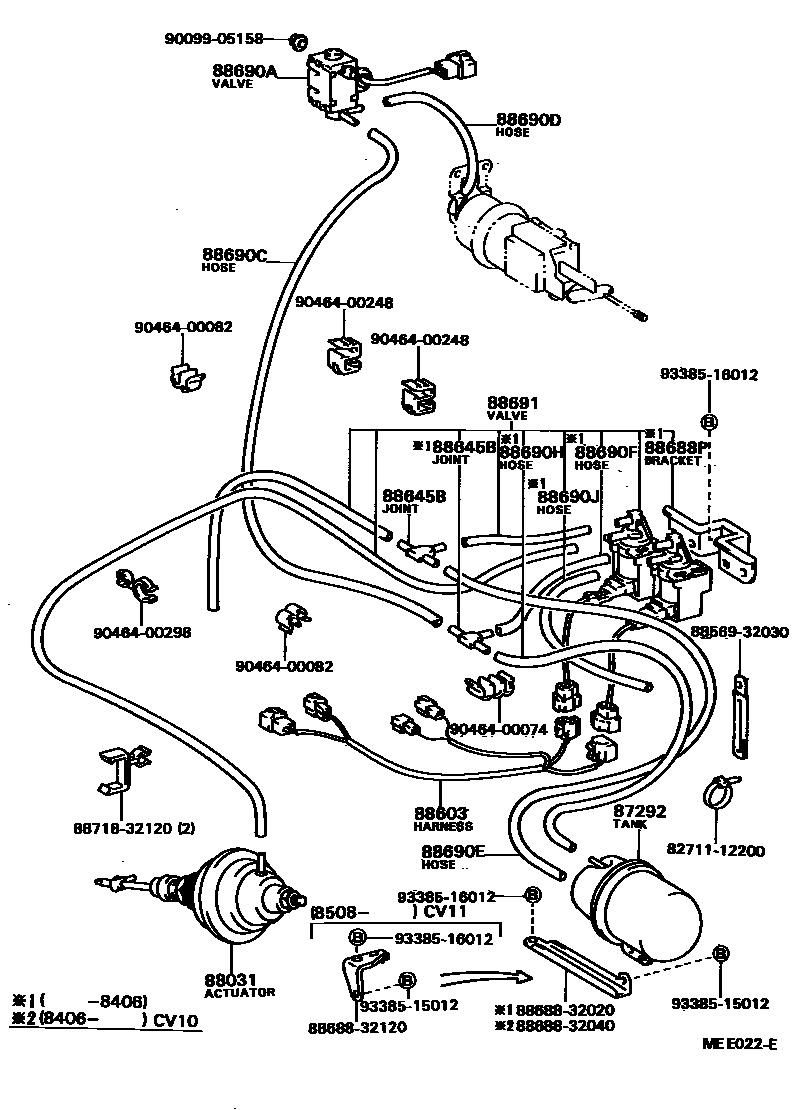

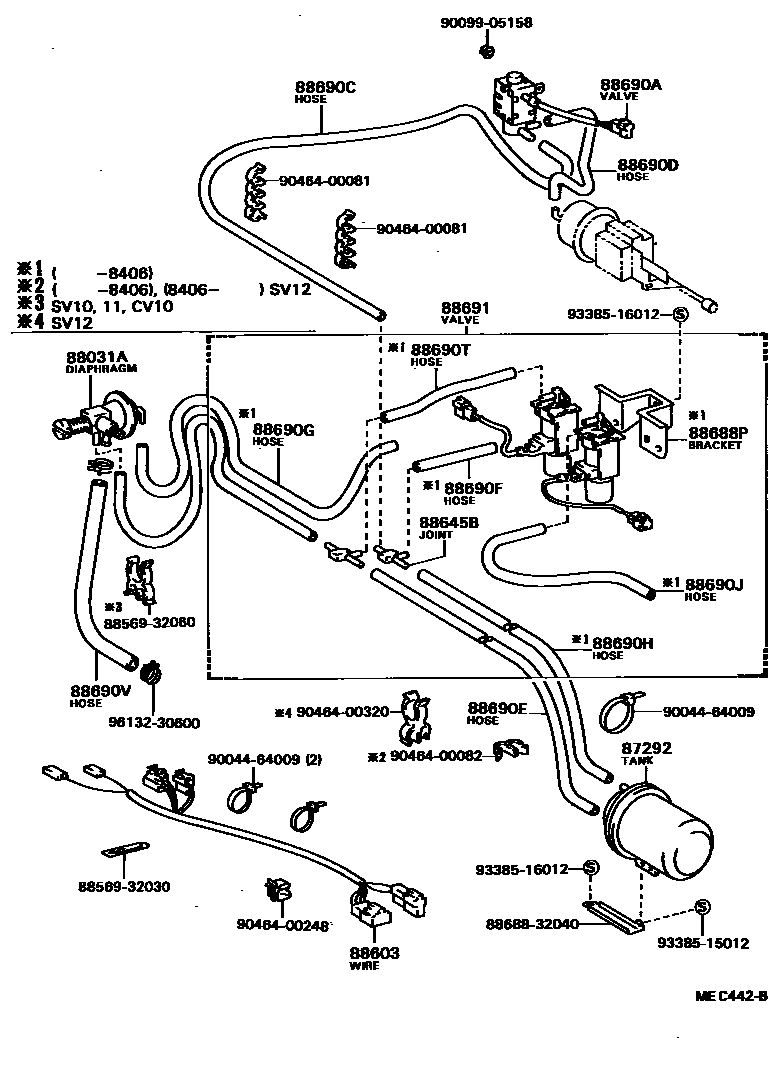

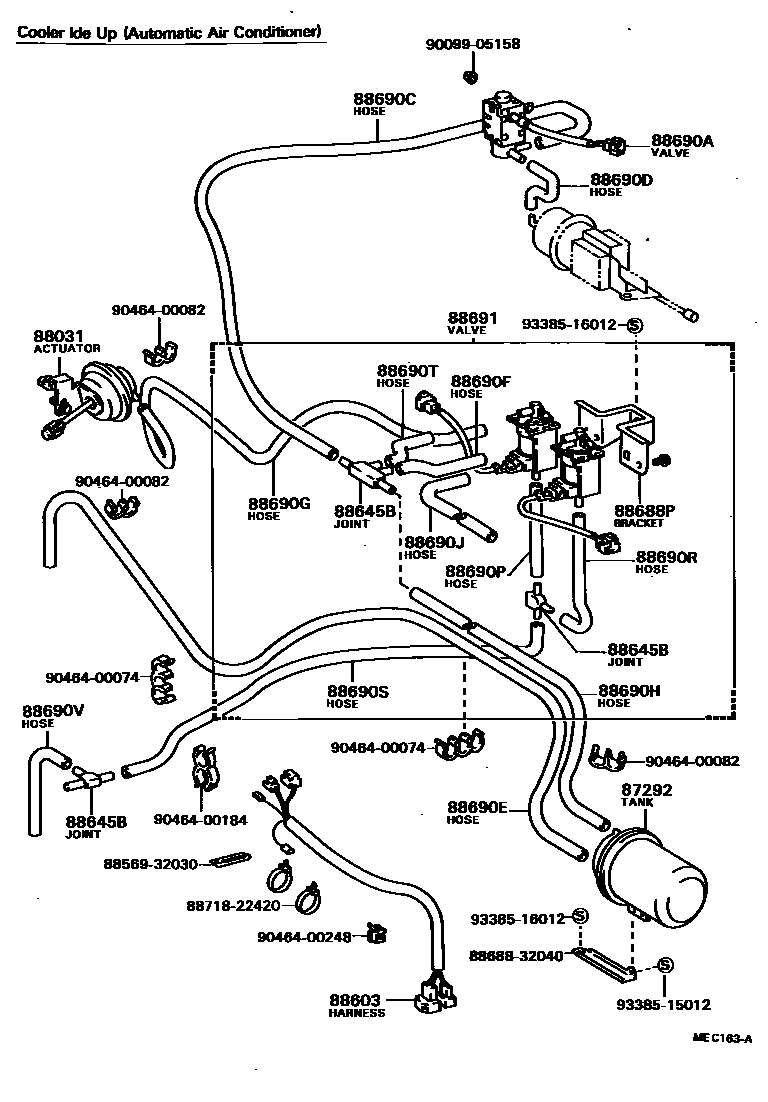

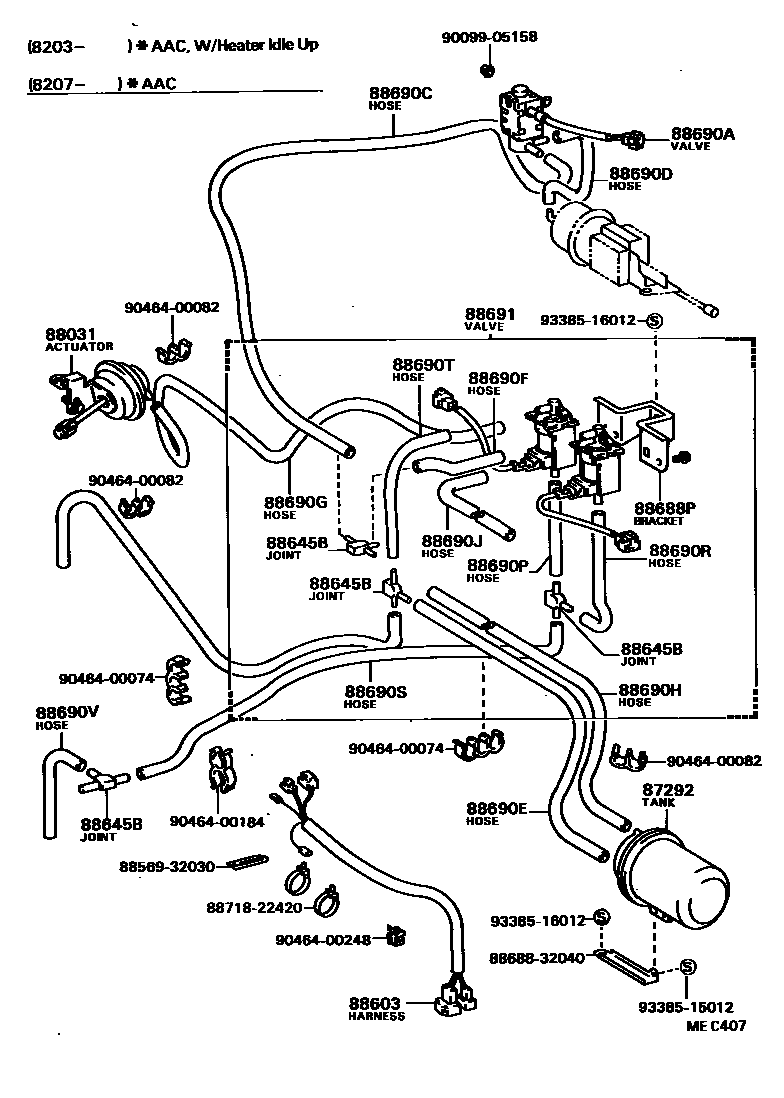

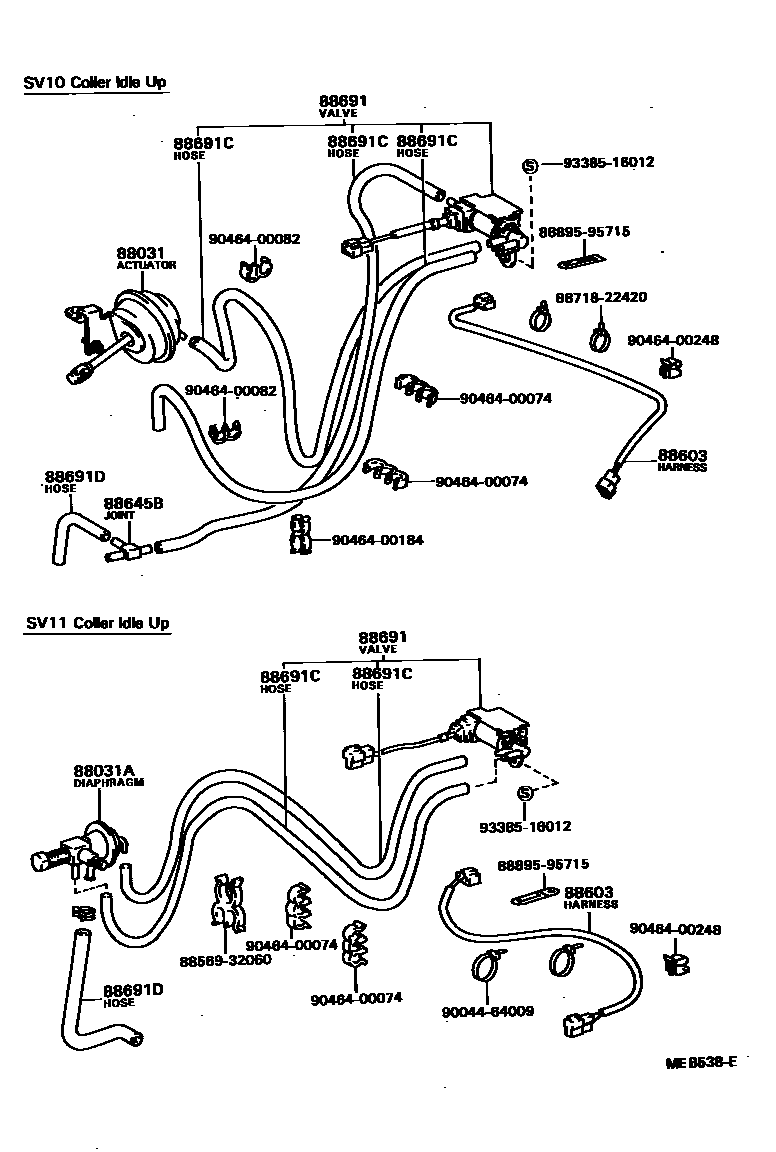

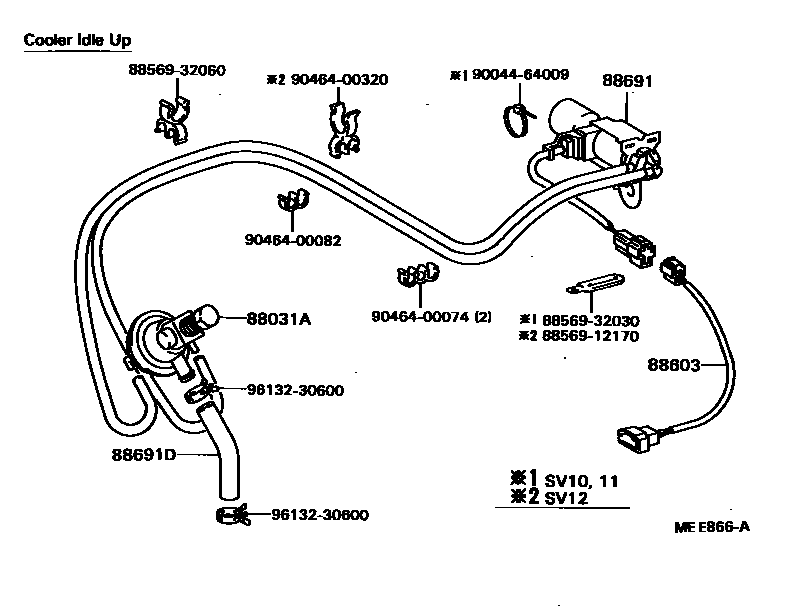

Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87292 | vacuum tank | 88683-32010 |
| 88031 | Idle speed lift actuator assembly | 88031-12120 · 88031-30070 · 88031-32010 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-14020 |
| 88603 | Idle speed lifting device wiring harness | 88605-32020 · 88605-32040 · 88605-32260 · 88605-32270 |
| 88605D | Air conditioning wiring harness | 88648-32010 · 88648-32030 |
| 88645 | Idle speed lifting device sub-assembly | 87400-32010 · 87400-32020 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 · 90414-04002 |
| 88688P | Bracket (for solenoid valve) | 88688-32010 |
| 88690A | Composite valve assembly | 88690-32010 |
| 88690C | No. 1 vacuum hose (for heater or air conditioner) | 95411-10295 |
| 88690D | No. 2 vacuum hose (for heater or air conditioner) | 95411-10430 |
| 88690E | No. 3 vacuum hose (for heater or air conditioner) | 88689-32040 · 95411-10195 |
| 88690T | No. 11 vacuum hose (for heater or air conditioner) | 95411-10060 |
| 88690V | No. 13 vacuum hose (for heater or air conditioner) | 88689-32010 · 88689-40030 · 88690-32210 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-32020 · 88690-32030 · 88690-32040 · 88690-32050 · 88690-32060 · 88690-32090 · 88690-32120 · 88690-32150 · 88690-32170 · 88690-32190 · 88690-32200 · 88690-32210 · 88690-32220 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 95411-10060 · 95411-19960 |
| 88691D | Vacuum hose No. 2 (for idle lift) | 88689-32010 · 88689-32030 |
