Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

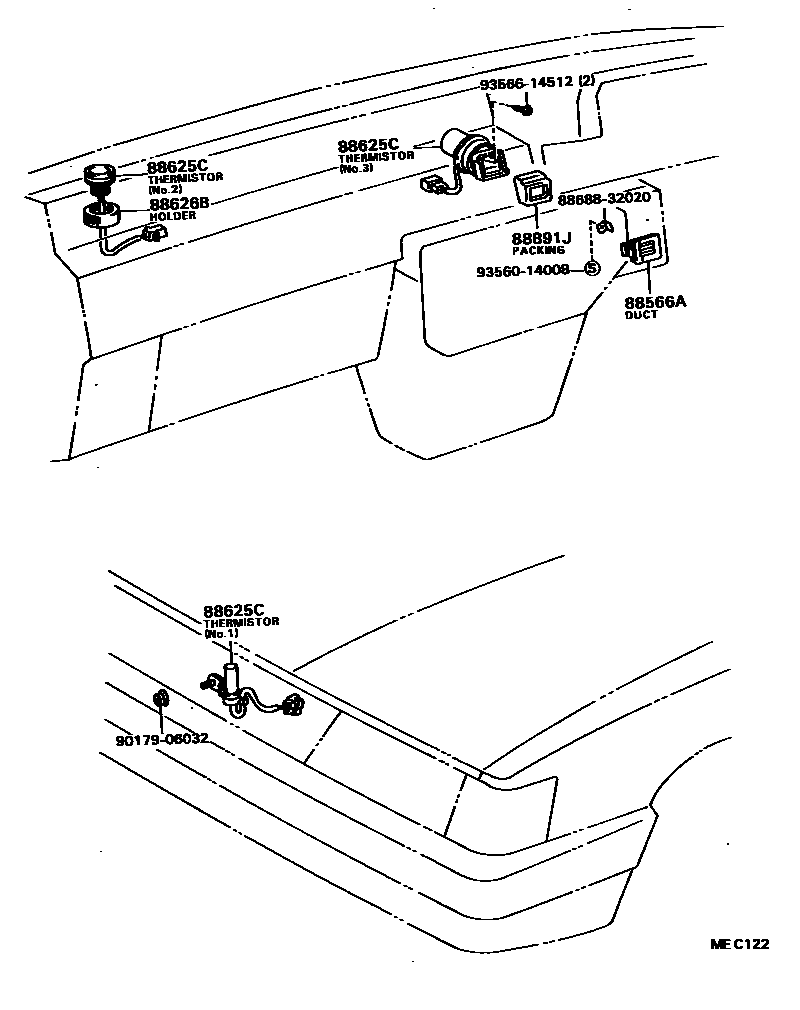

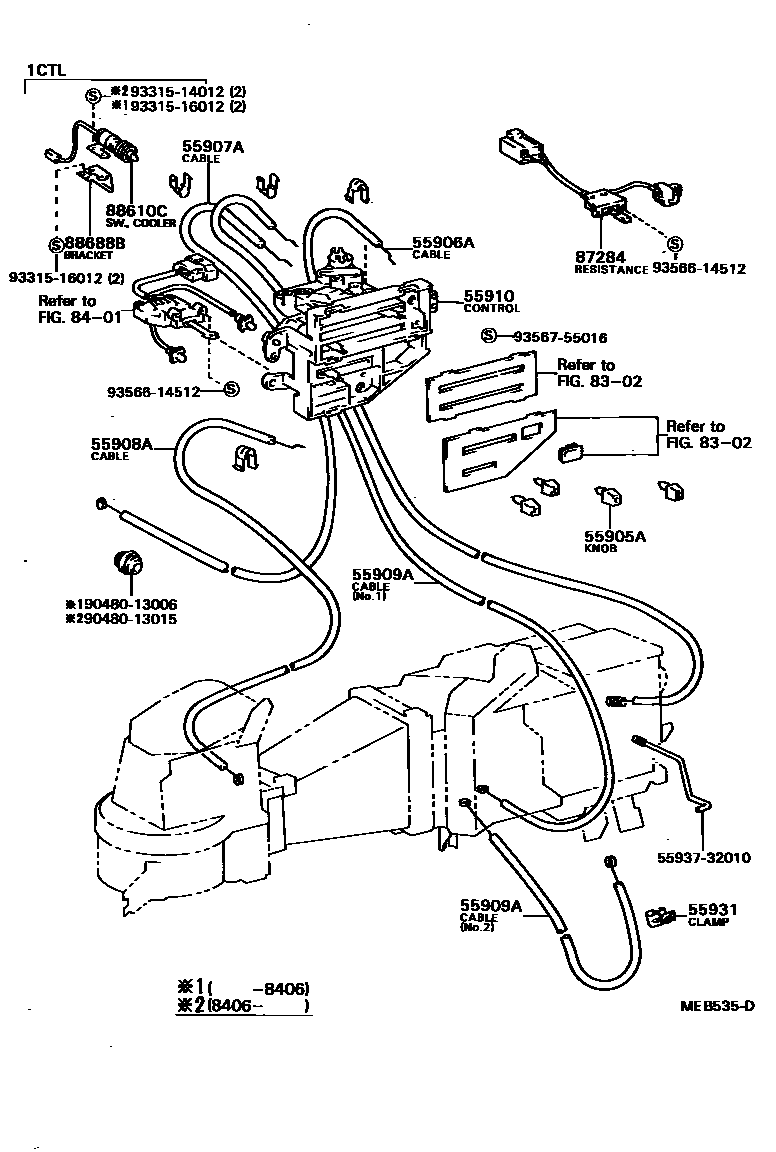

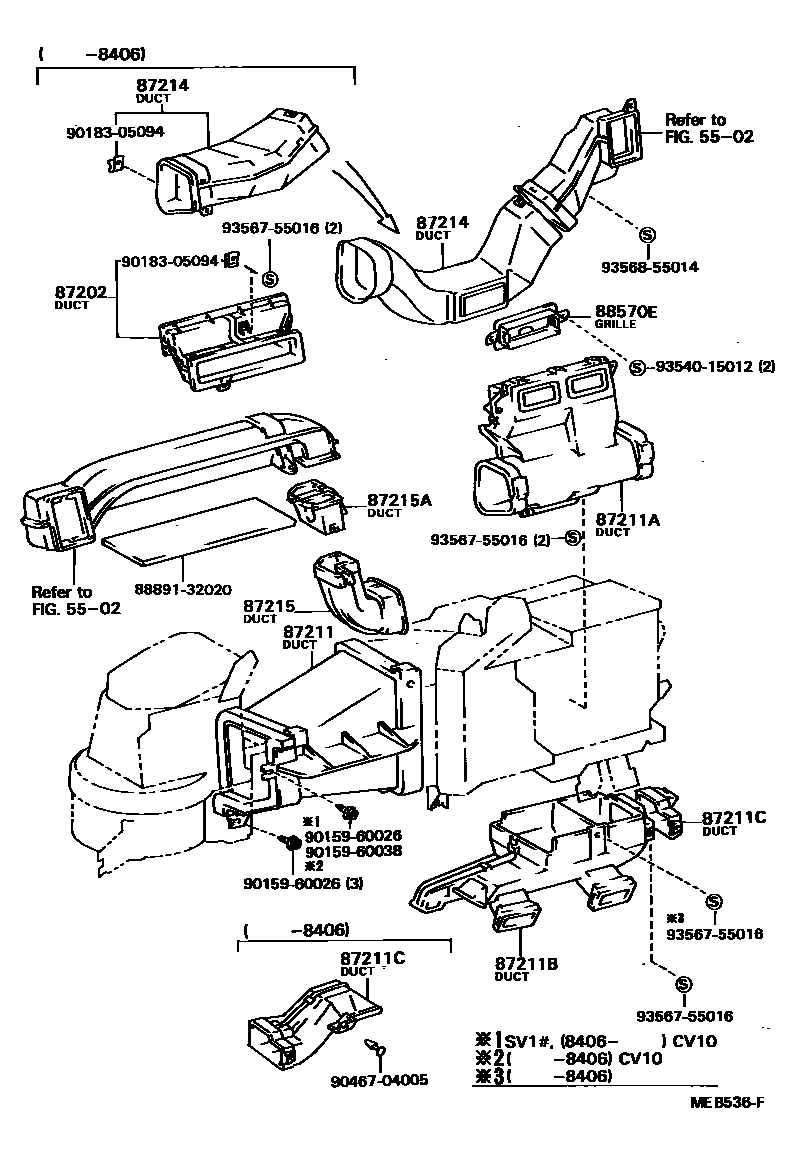

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905A | Heater control button | 55905-22070 |
| 55906A | Defroster damper control cable sub-assembly | 55906-32010 · 55906-32011 |
| 55907A | Water valve control cable sub-assembly | 55907-32010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-32010 |
| 55909A | Air mix damper control cable sub-assembly | 55909-32010 · 55909-32011 · 55909-32020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-32010 |
| 55931 | Heater control harness clip | 55933-24010 |
| 87202 | heater duct | 55089-32010 |
| 87211 | No. 1 air duct | 87201-32010 |
| 87211A | Duct No. 2 | 87201-32020 |
| 87211B | No. 3 air duct | 87201-32030 |
| 87211C | No. 4 air duct | 87201-32040 · 87211-32010 |
| 87214 | Air duct No. 1 on the right | 55085-32010 · 55085-32040 |
| 87215 | Air duct No. 1 on the left | 55086-32010 |
| 87215A | Air duct No. 2 on the left | 55087-32010 |
| 87284 | Variable resistor sub-assembly | 88032-32020 |
| 88566A | Cooler No. 1 air duct | 88566-32010 · 88566-32020 |
| 88570E | Air outlet grille assembly | 55680-32010 |
| 88610C | Cooler control switch assembly | 88610-32050 |
| 88625C | Cooler thermistor | 88625-24020 · 88625-32010 · 88625-32020 |
| 88626B | Thermistor mount | 88626-24010 |
| 88688B | Air conditioning control bracket | 88688-32090 |
| 88891J | Seals | 88891-32010 |
