Toyota CAMRY 后视镜 — Figure 8701

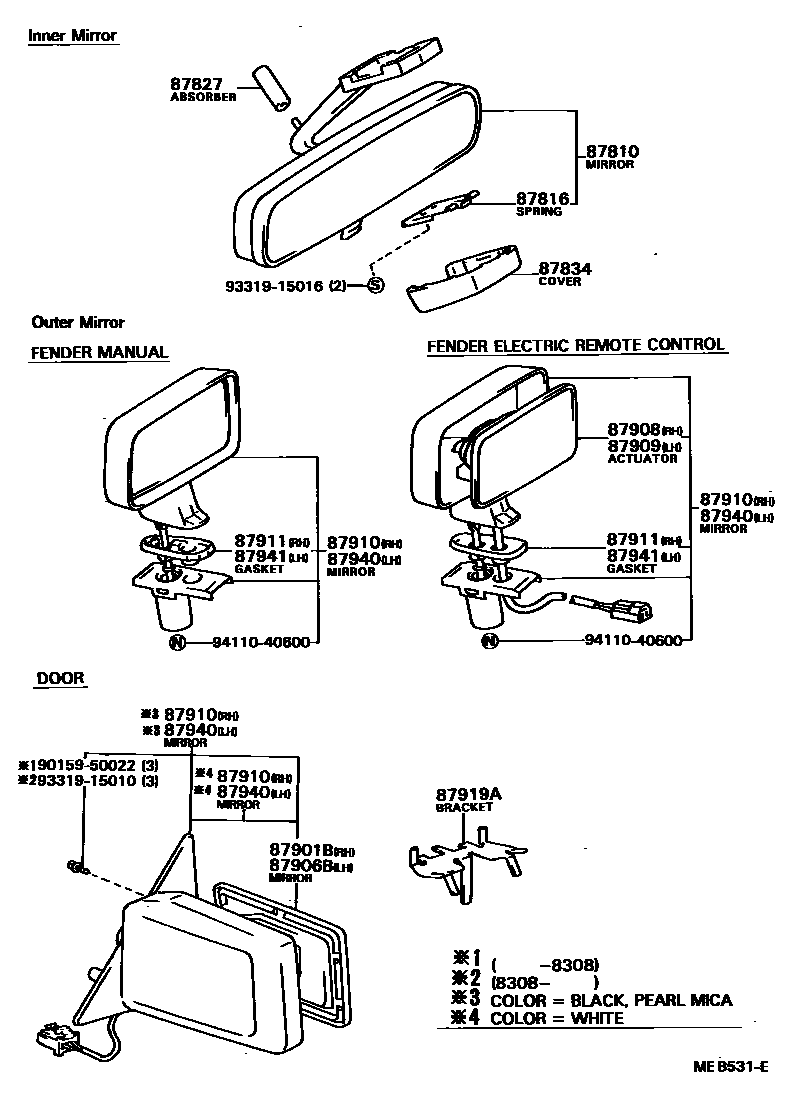

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-32010 |
| 87827 | Interior rearview mirror shock absorber | 87828-30010 · 87828-32010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-32080 · 87908-32090 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-32060 · 87909-32070 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-32010 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-32010 |
| 87910 | Right exterior rearview mirror assembly | 87910-32170 · 87910-32171 · 87910-39325 · 87910-39326 · 87910-39335 · 87910-39336 · 87910-39365 · 87910-39375 · 87910-80064 · 87910-80106 |
| 87911 | Right exterior mirror pad | 87911-32010 |
| 87919A | Exterior rearview mirror bracket | 87919-32010 |
| 87940 | Left exterior rearview mirror assembly | 87940-32170 · 87940-32171 · 87940-39275 · 87940-39276 · 87940-39285 · 87940-39286 · 87940-39315 · 87940-39325 · 87940-80065 · 87940-80106 |
| 87941 | Left exterior mirror pad | 87941-32010 |
