Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 4 PNC and OE references.

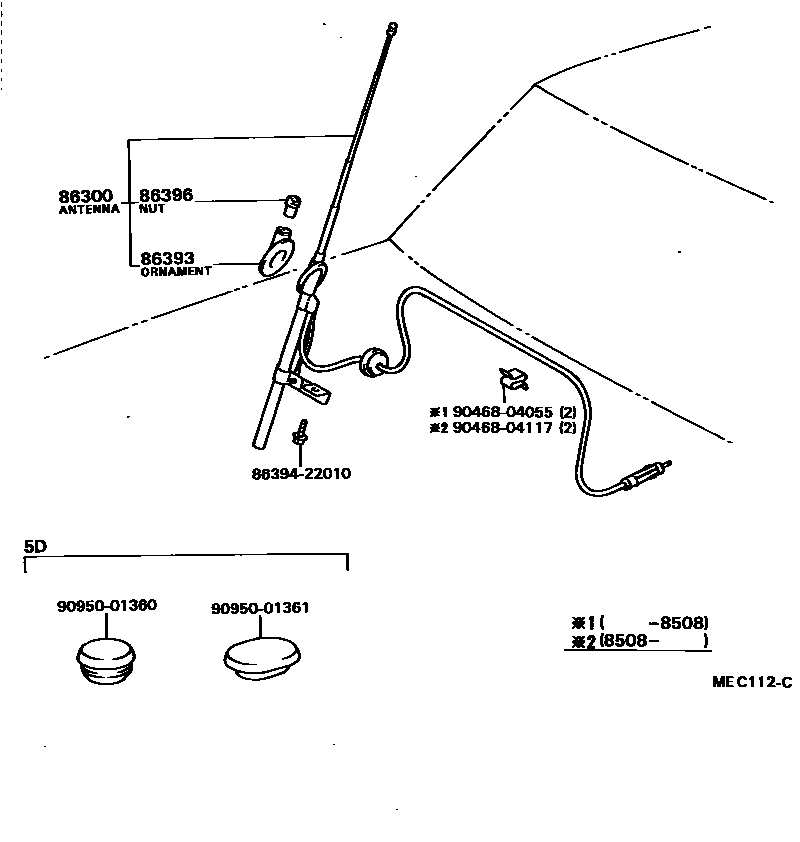

Toyota CAMRY antenna EPC diagram — MEC112C
antenna — MEC112C (198203 – 999999)

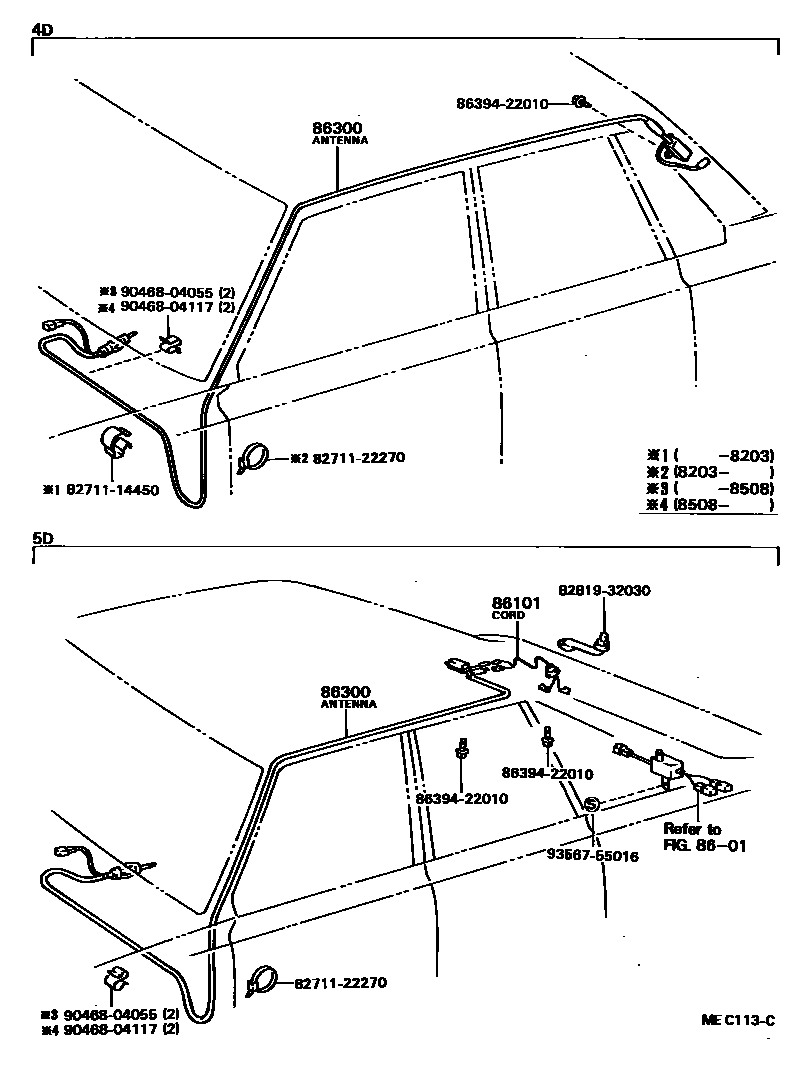

Toyota CAMRY antenna EPC diagram — MEC113C
antenna — MEC113C (198203 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-32010
86300Antenna assembly with fixing parts86300-32010 · 86300-32020 · 86300-32050
86393Antenna decorative parts86392-32010
86396Antenna nut86396-32010
