Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601

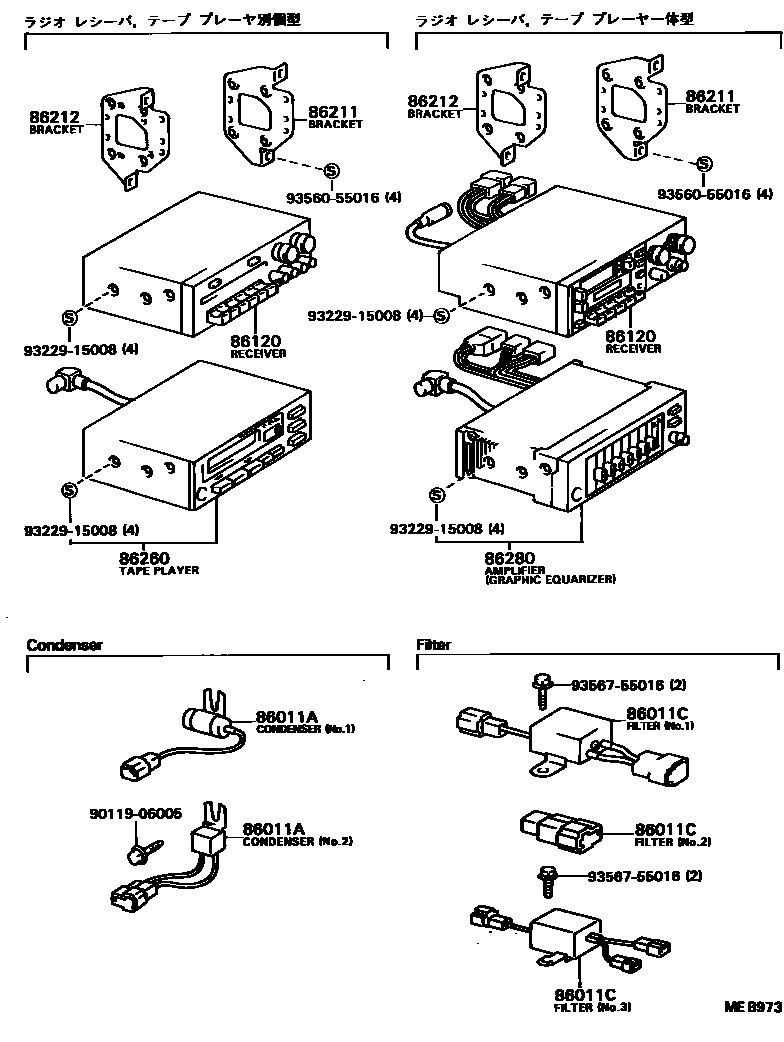

Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04023 · 90980-04041 |
| 86011C | Noise filter | 90980-05057 · 90980-05073 · 90980-05076 |
| 86120 | Radio assembly | 86120-14420 · 86120-14421 · 86120-19015 · 86120-19016 · 86120-19025 · 86120-19035 · 86120-19036 · 86120-19045 · 86120-32090 · 86120-39015 |
| 86211 | No. 1 radio bracket | 86211-32010 |
| 86212 | No. 2 radio bracket | 86212-32010 |
| 86260 | Tape player assembly | 86260-19015 · 86260-19025 · 86260-19035 |
| 86280 | Stereo parts amplifier assembly | 86280-32020 |
