Toyota CAMRY 巡航控制(自动行驶) — Figure 8408

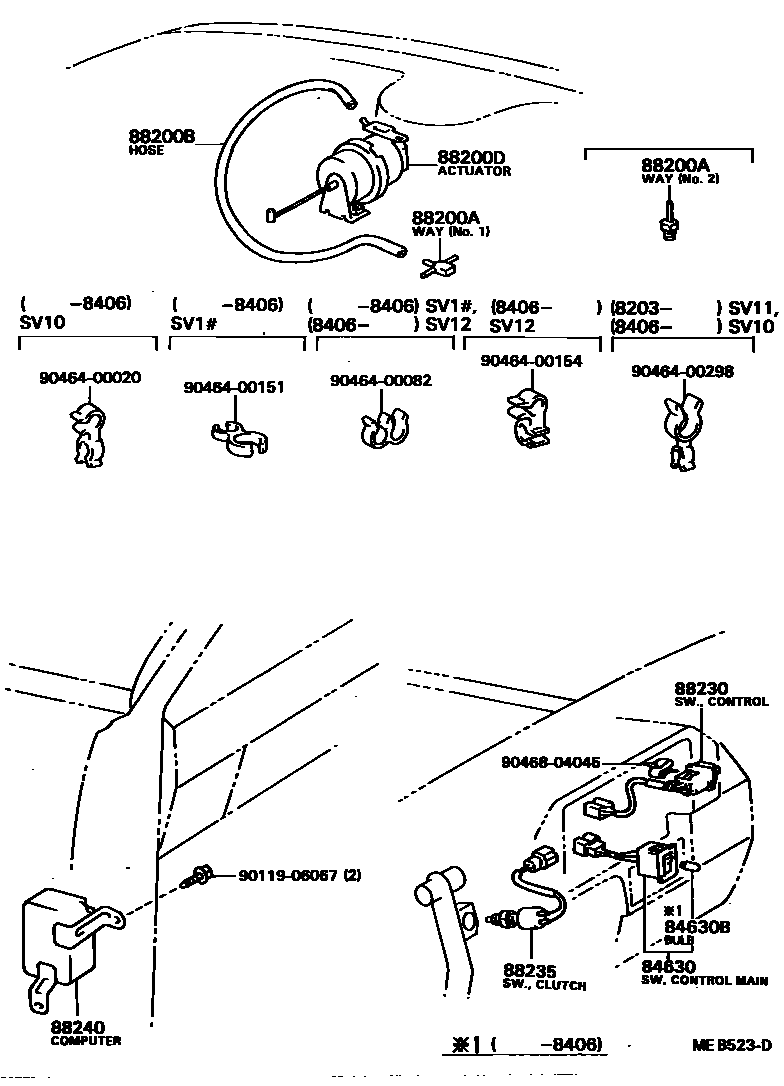

Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-32010 · 84630-32030 |
| 84630B | Light bulb (for cruise control switch) | 84999-10110 |
| 88200A | cruise control vacuum fitting or tube | 90404-51010 · 90413-04005 |
| 88200B | cruise control vacuum hose | 95411-19960 |
| 88200D | Cruise control actuator assembly | 88200-32010 · 88200-32030 |
| 88235 | Cruise control (automatic driving) release switch assembly | 88280-35010 |
| 88240 | Cruise control ECU assembly | 88240-32010 · 88240-32011 · 88240-32040 |
