Toyota CAMRY 电子燃油喷射系统 — Figure 8404

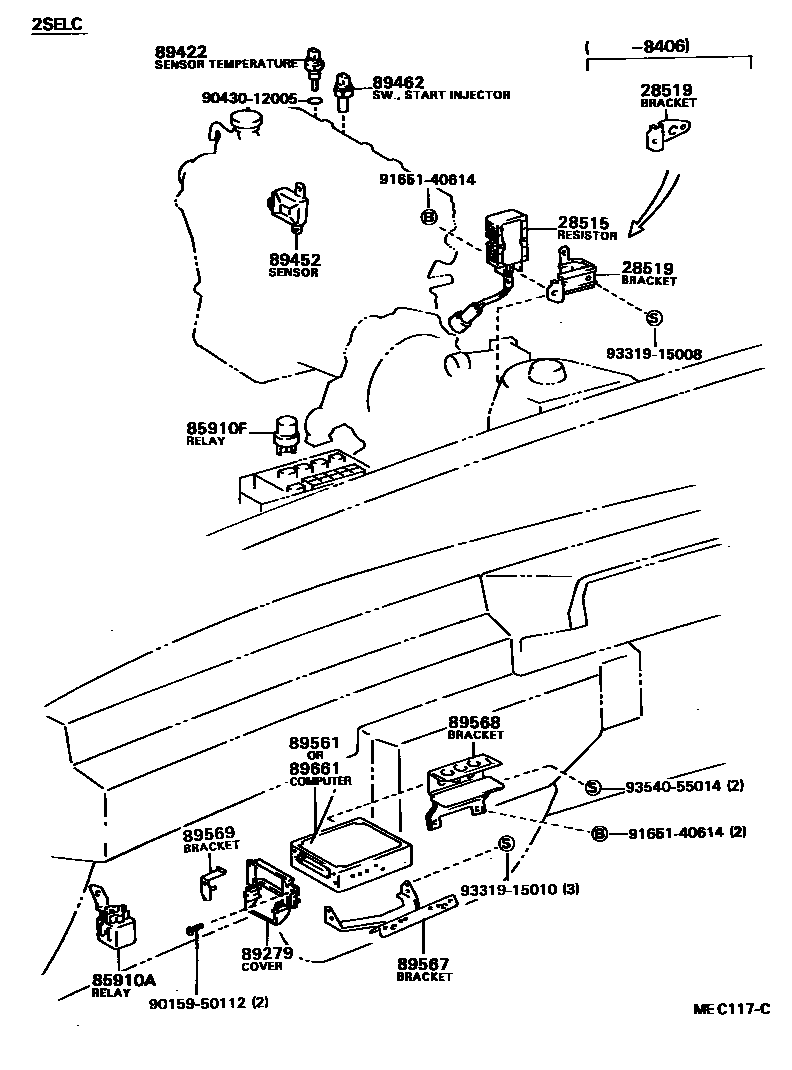

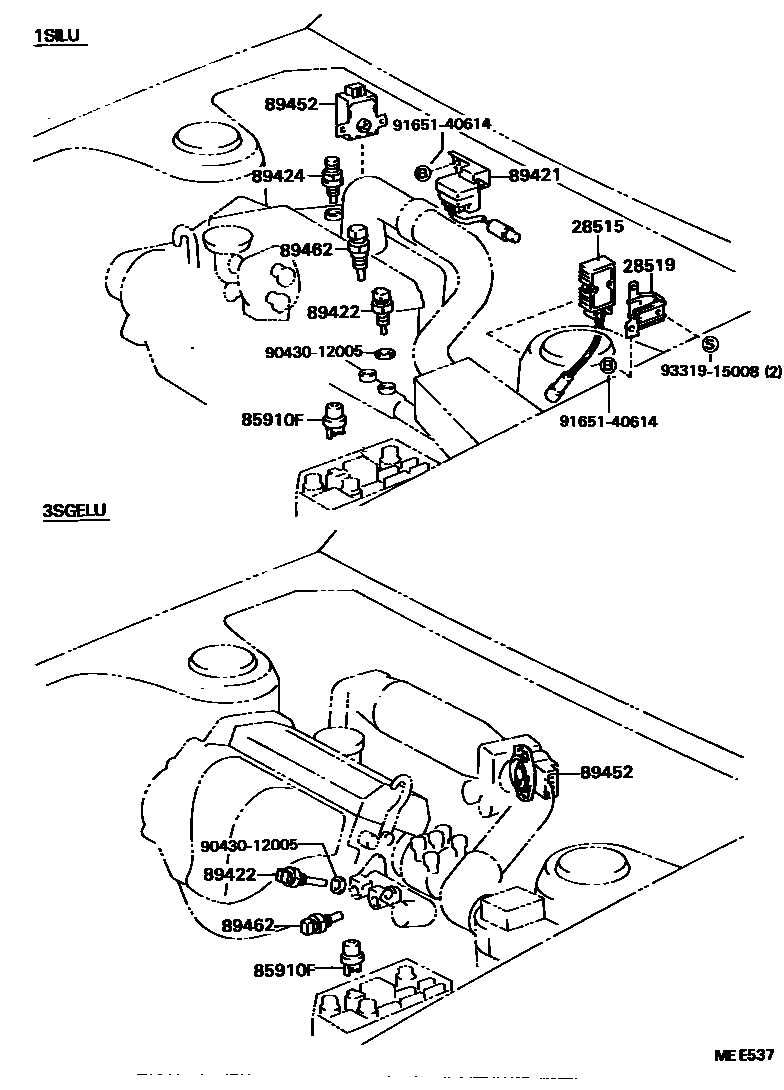

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-52010 · 28515-63010 |
| 28519 | Solenoid valve resistor bracket | 28519-32010 · 28519-63010 · 28519-74010 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-32010 |
| 85910F | ECU relay (for EFI) | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-32010 · 89279-32030 · 89279-32040 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-32010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-28010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12010 · 89452-20030 · 89452-20060 · 89452-28010 · 89452-32010 |
| 89462 | Start injector timing switch | 89462-30011 · 89462-40010 |
| 89561 | Fuel injection ECU | 89561-32010 · 89561-32060 |
| 89567 | Fuel injection ECU bracket | 89567-32010 · 89667-32010 |
| 89568 | Fuel injection ECU bracket | 89559-32010 · 89568-32010 |
| 89569 | Fuel injection ECU bracket | 89569-32010 · 89669-32010 |
| 89661 | Engine control ECU | 89661-20011 · 89661-20021 · 89661-32010 |
