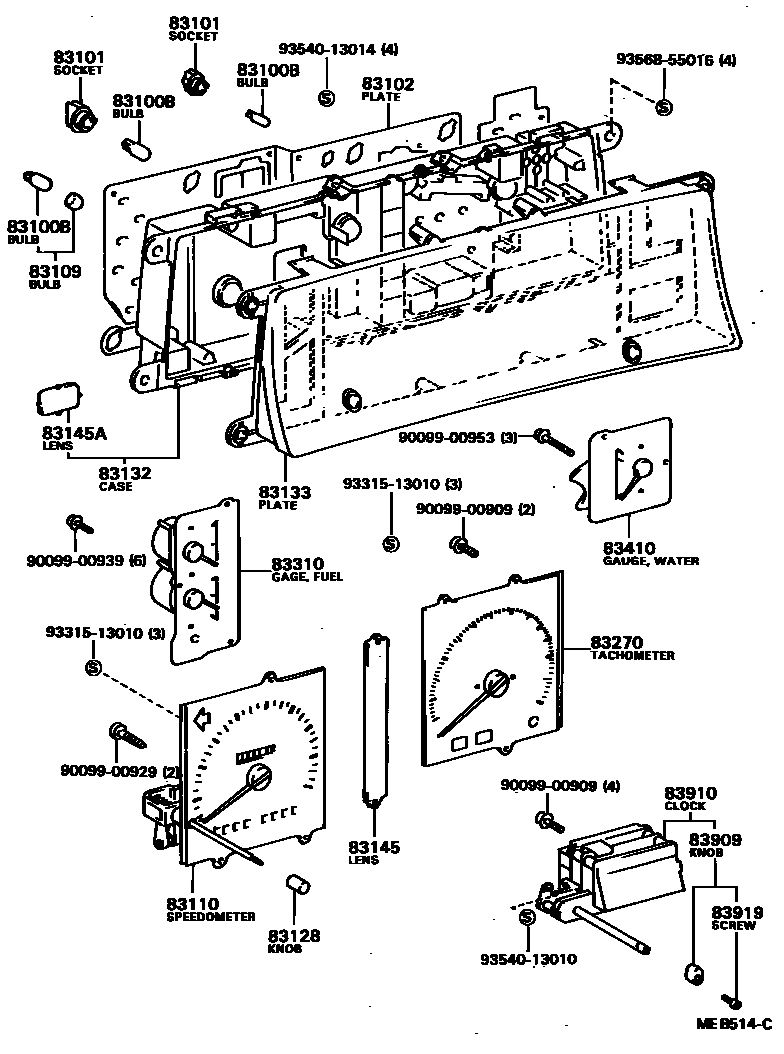

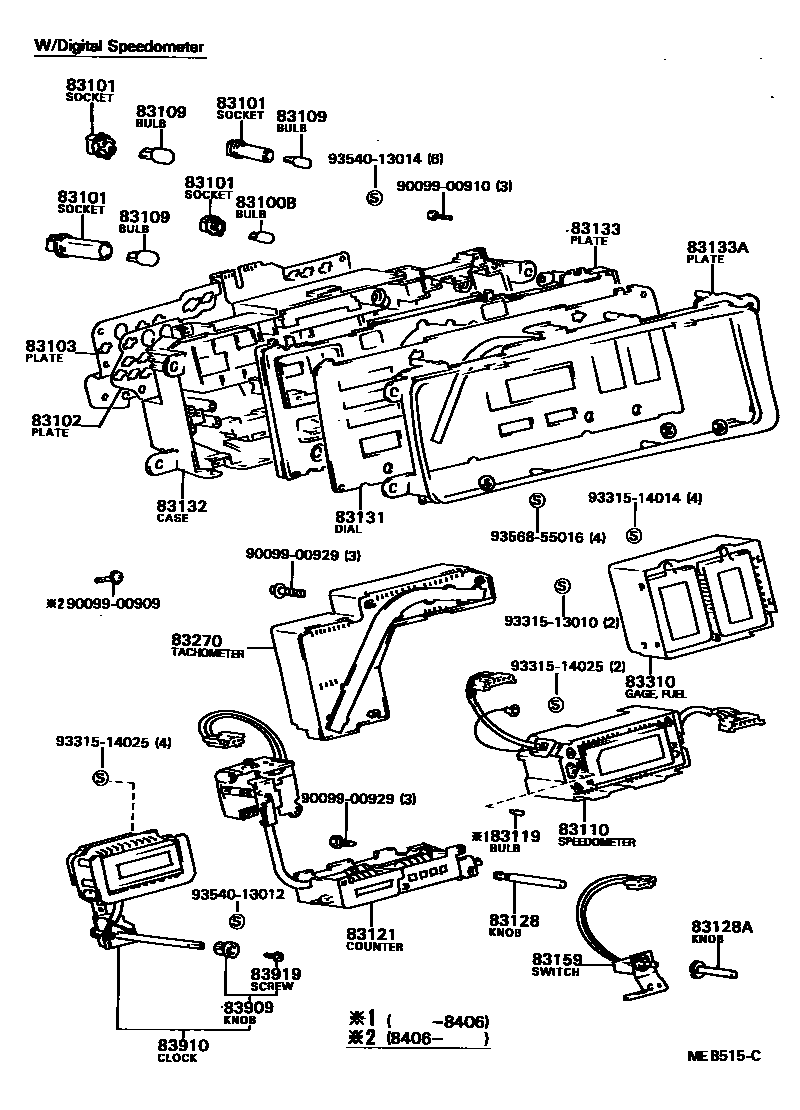

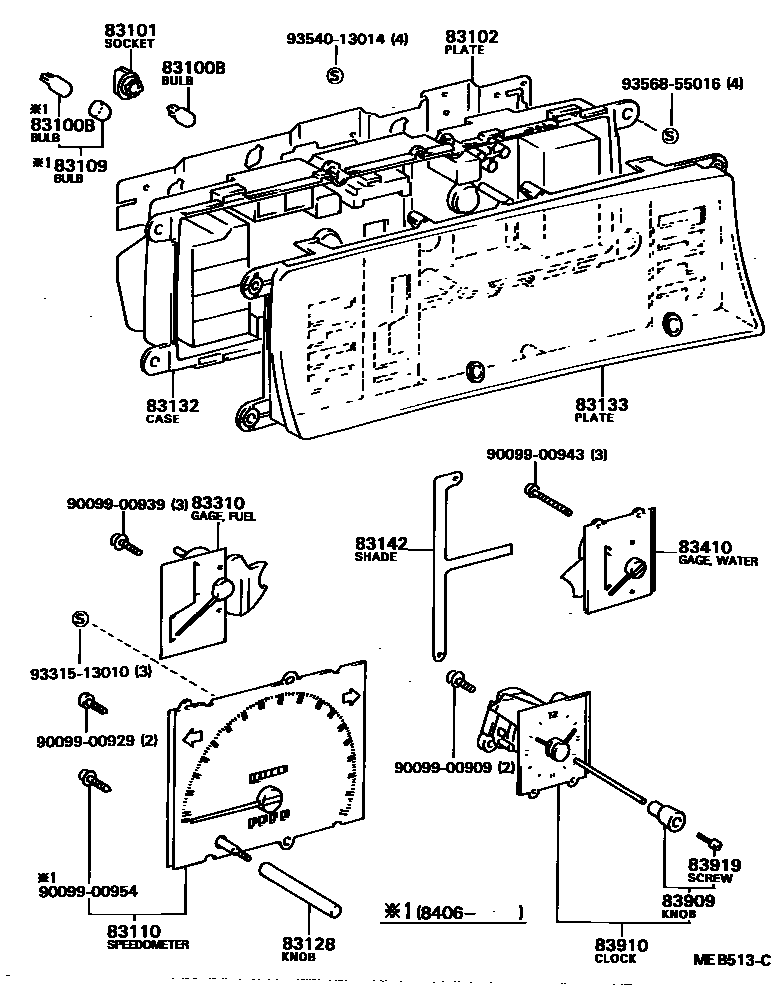

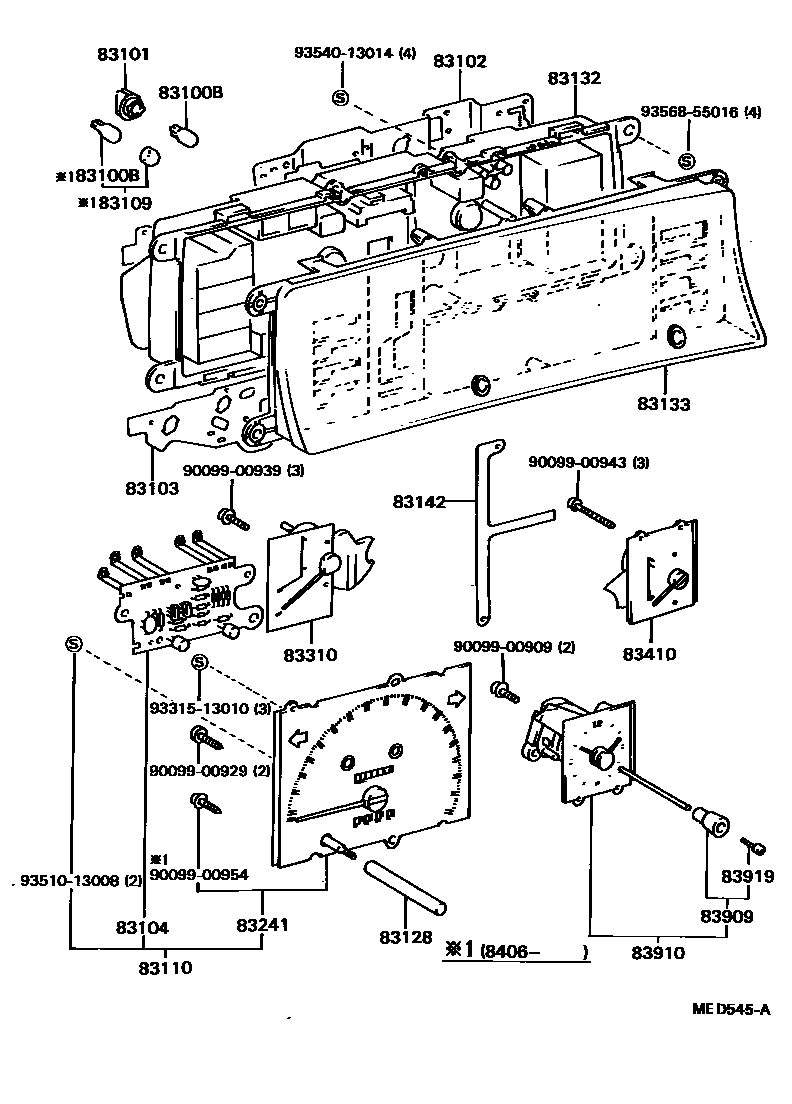

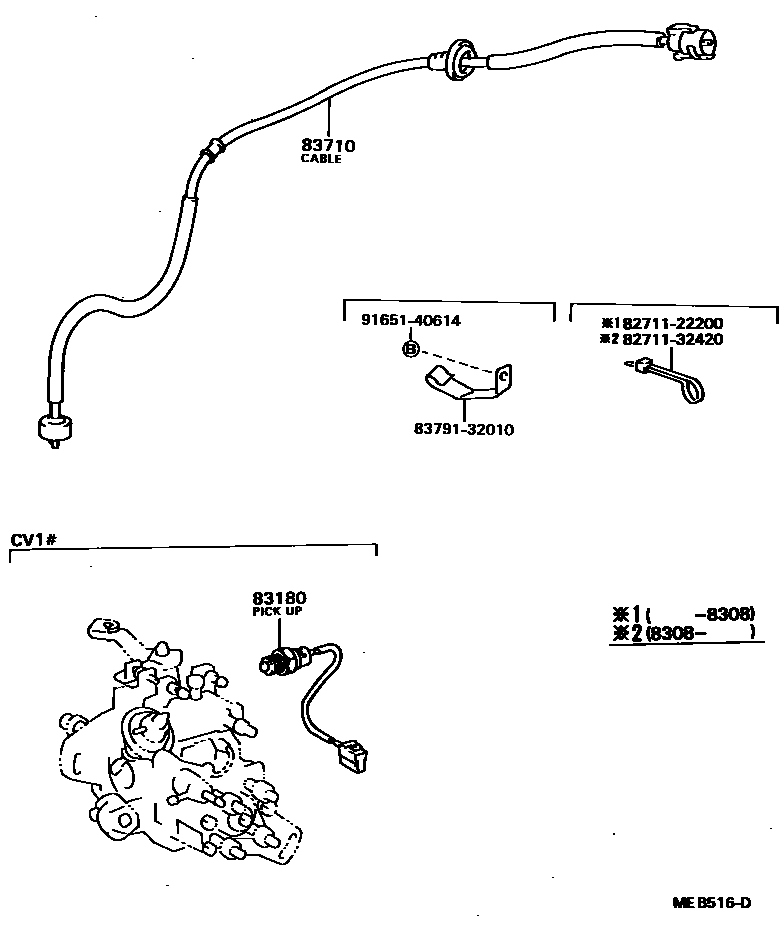

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-12020 · 83101-14030 · 83101-14040 · 83101-32010 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-32010 · 83247-32030 · 83247-32051 · 83247-32070 · 83247-32120 · 83247-32270 · 83247-32390 · 83247-32590 · 83247-32730 · 83247-32770 · 83247-32890 |
| 83103 | Combined instrument No. 2 circuit board sub-assembly | 83247-32080 · 83247-32090 · 83247-32550 · 83247-32610 |
| 83104 | Combined instrument No. 3 circuit board sub-assembly | 83247-32510 |
| 83109 | Combined instrument bulb No. 2 | 83109-24010 · 83109-24020 · 83109-24030 · 83109-24040 |
| 83110 | Speedometer assembly | 83110-32010 · 83110-32020 · 83110-32080 · 83110-32130 · 83110-32190 · 83110-32200 · 83110-32210 · 83110-32360 |
| 83119 | Instrument cluster No. 3 light bulb | 83119-24010 |
| 83121 | total counter | 83121-32010 |
| 83128 | trip odometer handle | 83128-14510 · 83128-32010 · 83128-32030 |
| 83128A | instrument handle | 83128-32050 |
| 83131 | Instrument panel No. 1 | 83131-32010 · 83131-32030 · 83131-32130 · 83131-32150 |
| 83132 | Instrument cluster housing | 83132-32010 · 83132-32030 · 83132-32050 · 83132-32070 · 83132-32090 · 83132-32250 · 83132-32350 · 83132-32430 · 83132-32490 · 83132-32710 · 83132-32750 · 83132-32870 |
| 83133 | Combined instrument panel No. 1 | 83133-32010 · 83133-32030 · 83133-32050 · 83133-32150 · 83133-32170 · 83133-32310 |
| 83133A | Combined instrument panel No. 2 | 83133-32070 |
| 83142 | Combined instrument lamp shade | 83142-32010 |
| 83145 | Instrument No. 1 lampshade | 83145-32010 · 83145-32110 · 83145-32190 · 83145-32250 |
| 83145A | Instrument No. 2 lampshade | 83145-30790 |
| 83159 | No.1 instrument switch | 83159-32010 |
| 83180 | Speed detector assembly | 83180-12010 |
| 83241 | Speedometer sub-assembly | 83241-32010 · 83241-32090 |
| 83270 | Engine tachometer assembly | 83242-32010 · 83242-32030 · 83242-32130 · 83242-32190 · 83242-32210 · 83242-32270 · 83270-14060 · 83270-14250 · 83270-32010 |
| 83310 | Fuel gauge assembly | 83243-32011 · 83243-32030 · 83243-32130 · 83243-32210 · 83310-14080 · 83310-14081 · 83310-14082 · 83310-14101 |
| 83410 | Water temperature meter assembly | 83244-32010 · 83244-32030 · 83244-32130 · 83244-32290 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32050 · 83710-32051 · 83710-32060 · 83710-32061 |
| 83909 | clock button | 83909-14012 · 83909-14200 · 83909-22180 |
| 83910 | clock assembly | 83910-14270 · 83910-32010 · 83910-32020 · 83910-32050 |
| 83919 | clock screw | 83919-12230 · 83919-14012 |
