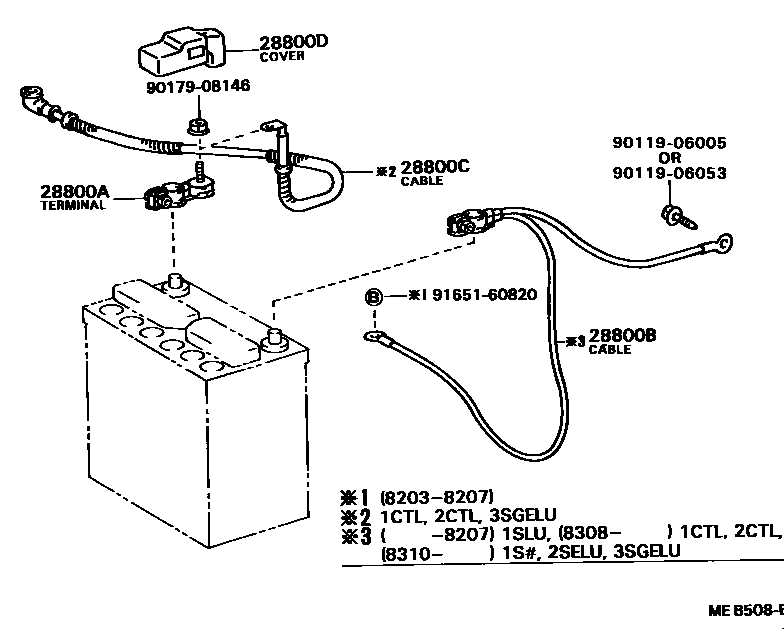

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05018 · 90982-05023 |
| 28800B | Cable between battery and ground | 82124-32010 · 90982-02238 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82123-32010 · 82123-32020 · 82123-32030 |
| 28800D | Connector cover (for battery terminals) | 82821-12190 · 82821-20120 · 82821-24010 · 82821-32010 |
