Toyota CAMRY 后牌照灯 — Figure 8113

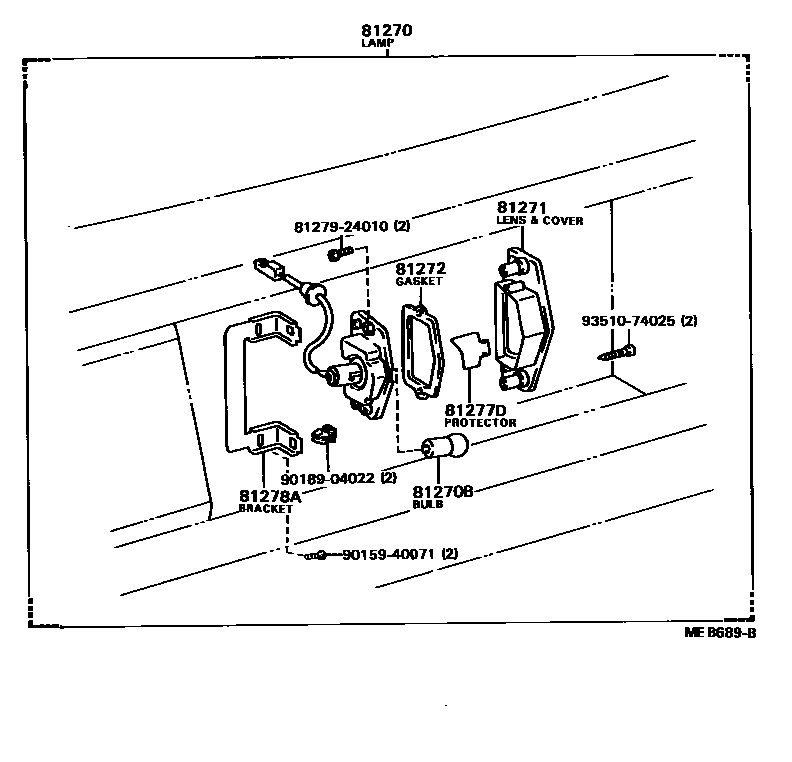

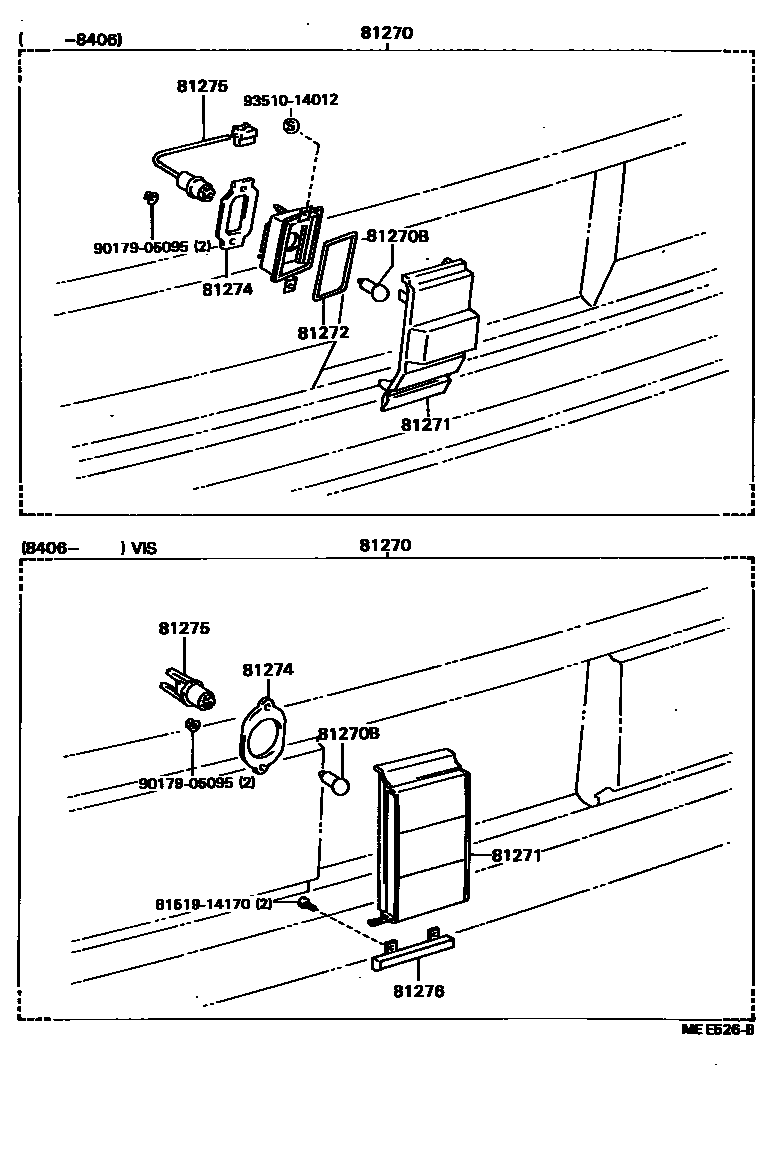

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-39315 · 81270-39316 · 81270-39325 · 81270-39335 · 81270-39336 · 81270-39345 · 81270-39355 · 81690-39025 · 81690-39026 · 81690-39035 · 81690-39045 · 81690-39055 |
| 81270B | Bulb (for license plate light) | 90981-12013 |
| 81271 | license plate lamp shade | 81271-14220 · 81271-16151 · 81271-32010 · 81271-32011 · 81271-32020 · 81271-32030 · 81271-32040 · 81271-32050 · 81691-32010 · 81691-32011 · 81691-32020 · 81691-32040 · 81691-32050 |
| 81272 | License plate lamp shade gasket | 81272-20210 · 81272-32010 |
| 81274 | License plate light body gasket | 81274-32010 |
| 81275 | License plate lamp holder and wiring harness | 81275-12240 · 81275-32010 |
| 81276 | license plate light frame | 81276-32011 |
| 81277D | license plate light reflector | 81277-20210 |
| 81278A | license plate light bracket | 81278-32030 |
