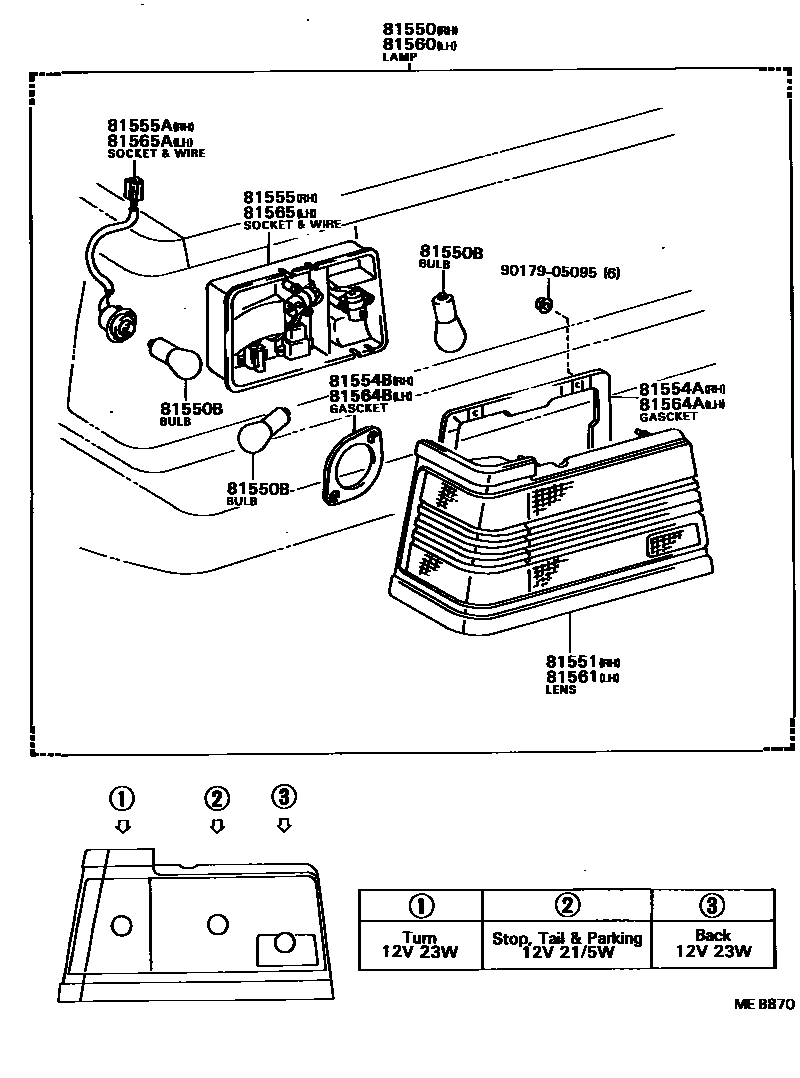

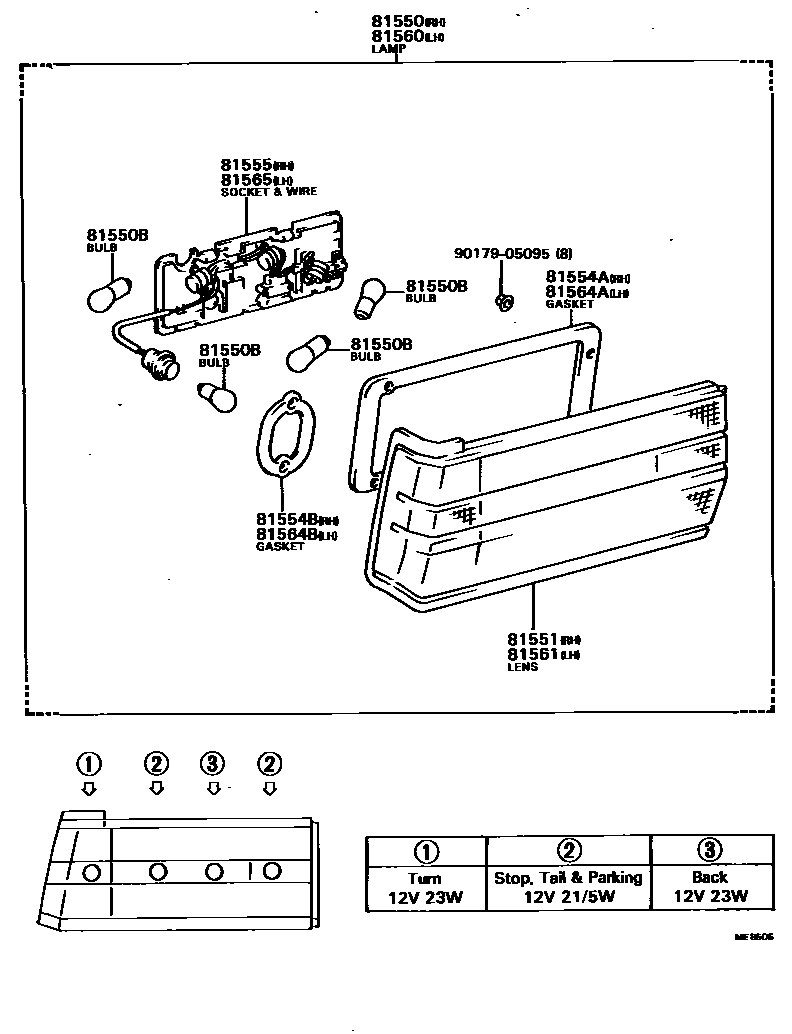

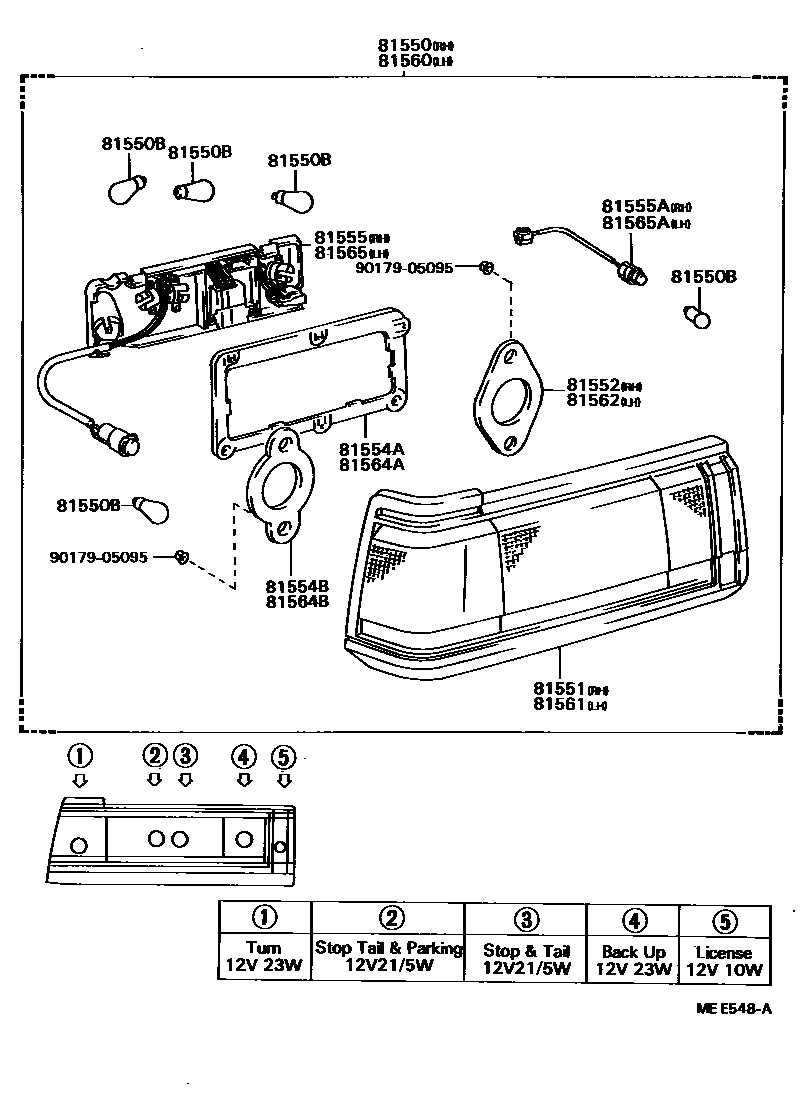

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-39655 · 81550-39665 · 81550-39685 · 81550-39695 · 81550-80223 · 81550-80227 · 81550-80228 |
| 81550B | Bulb (for rear combination lights) | 99132-11100 · 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-32010 · 81551-32011 · 81551-32020 · 81551-32090 · 81551-32091 · 81551-32100 · 81551-32101 |
| 81552 | Right rear combination lamp shade gasket | 81552-32101 |
| 81554A | No. 1 right rear combination lamp body gasket | 81552-32010 · 81554-32090 · 81554-32100 |
| 81554B | No. 2 right rear combination lamp body gasket | 81552-32090 · 81552-32100 · 81554-32010 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32010 · 81555-32011 · 81555-32020 · 81555-32090 · 81555-32091 · 81555-32100 · 81555-32101 |
| 81555A | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81557-32101 · 81558-32090 |
| 81560 | Left rear combination light assembly | 81560-39615 · 81560-39625 · 81560-39645 · 81560-39655 · 81560-80228 · 81560-80232 · 81560-80233 |
| 81561 | Left rear combination lamp shade | 81561-32010 · 81561-32011 · 81561-32020 · 81561-32090 · 81561-32091 · 81561-32100 · 81561-32101 |
| 81562 | Left rear combination lamp shade gasket | 81552-32101 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81552-32010 · 81554-32090 · 81554-32100 |
| 81564B | No. 2 left rear combination lamp body gasket | 81552-32090 · 81552-32100 · 81554-32010 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-32010 · 81565-32011 · 81565-32020 · 81565-32090 · 81565-32091 · 81565-32100 · 81565-32101 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81557-32101 · 81558-32090 |
