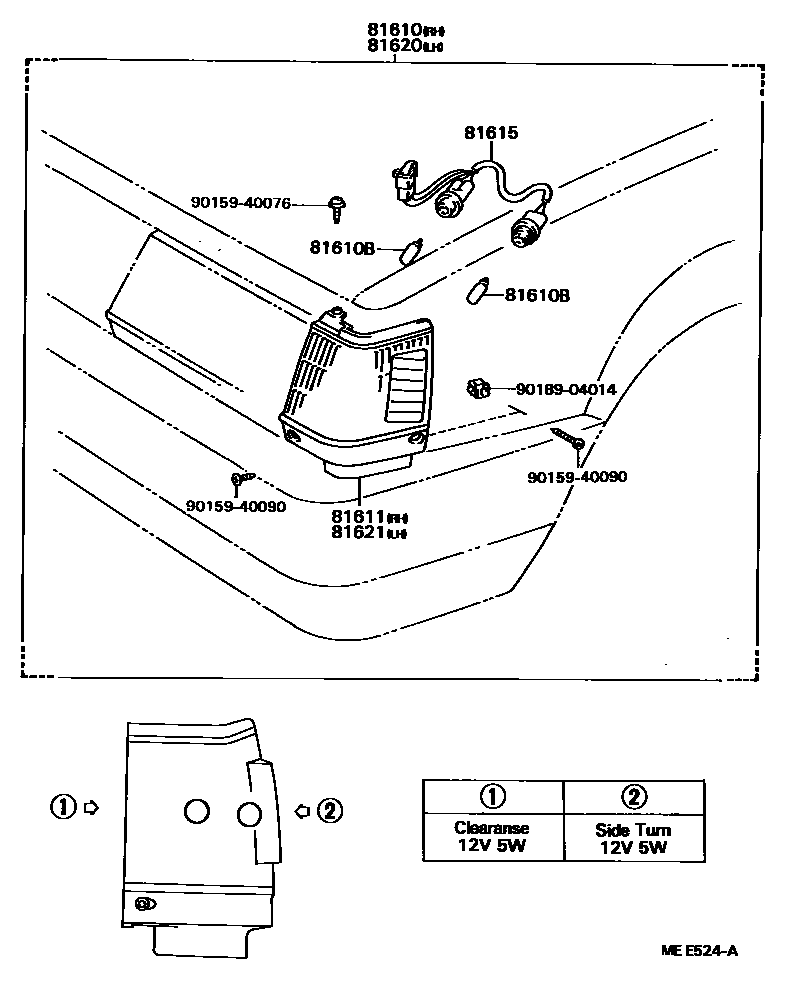

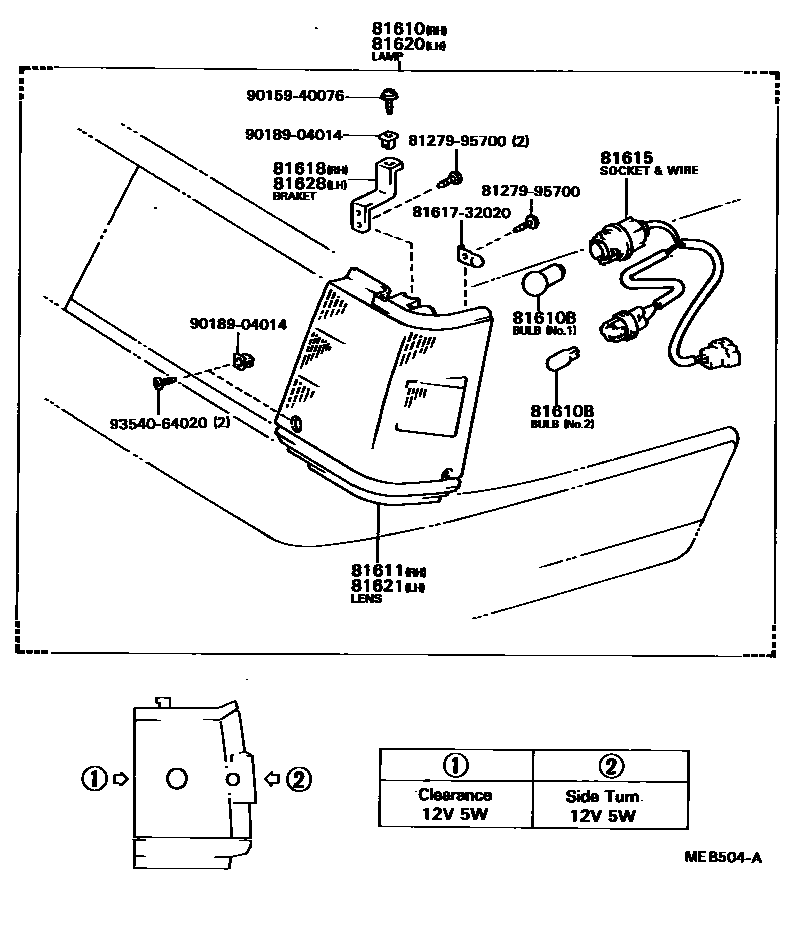

Toyota CAMRY 前示宽灯 — Figure 8104
Toyota CAMRY EPC diagram 8104, 前示宽灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-39685 · 81610-39686 · 81610-39695 · 81610-39696 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-12010 · 99132-11050 · 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-32010 · 81611-32011 · 81611-32020 · 81611-32021 |
| 81615 | Width light lamp holder and wiring harness | 81615-32010 · 81615-32020 |
| 81618 | Right parking light and width indicator bracket | 81618-32010 · 81618-32020 |
| 81620 | Left parking light and width indicator light assembly | 81620-39685 · 81620-39686 · 81620-39695 · 81620-39696 |
| 81621 | Left parking light and width indicator light cover | 81621-32010 · 81621-32011 · 81621-32020 · 81621-32021 |
| 81628 | Left parking light and width indicator bracket | 81628-32010 · 81628-32020 |
