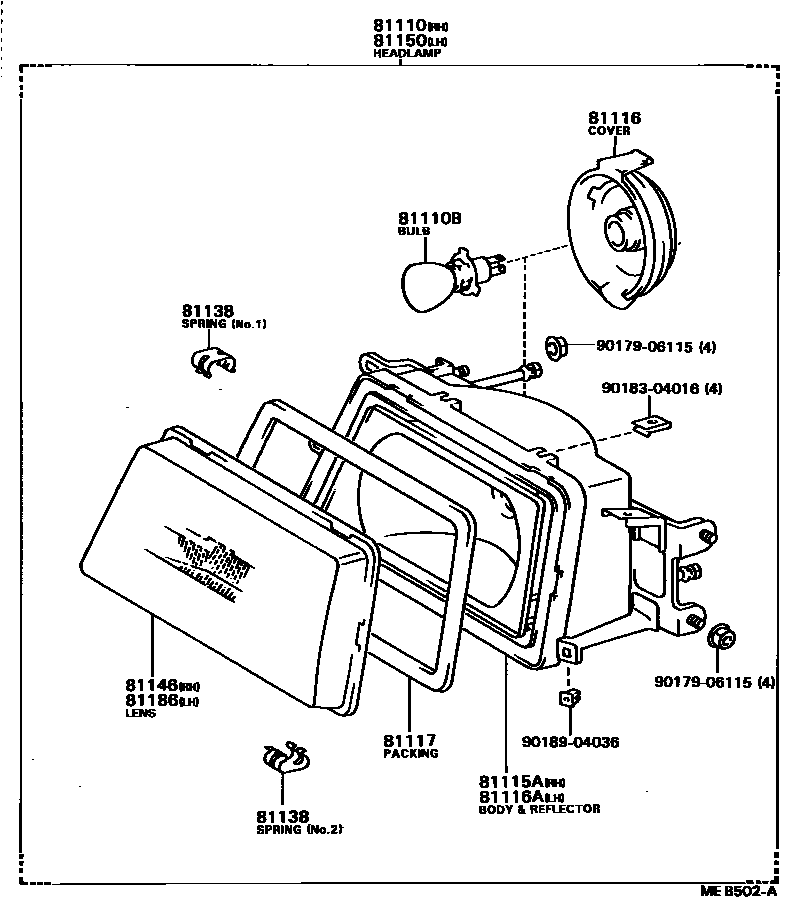

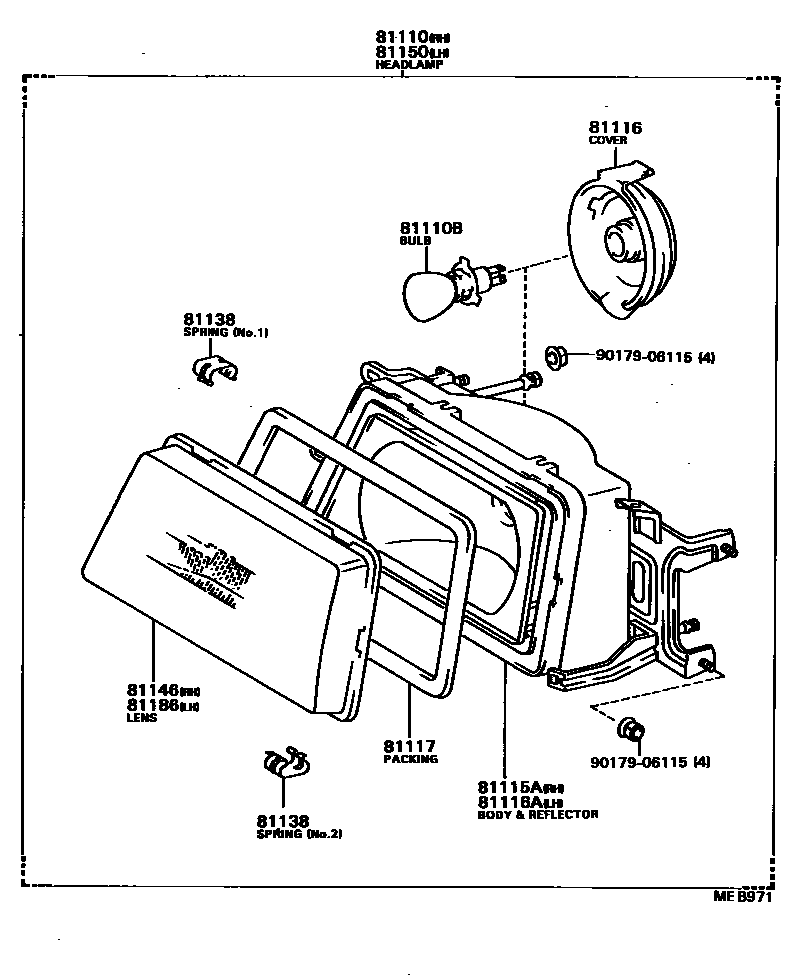

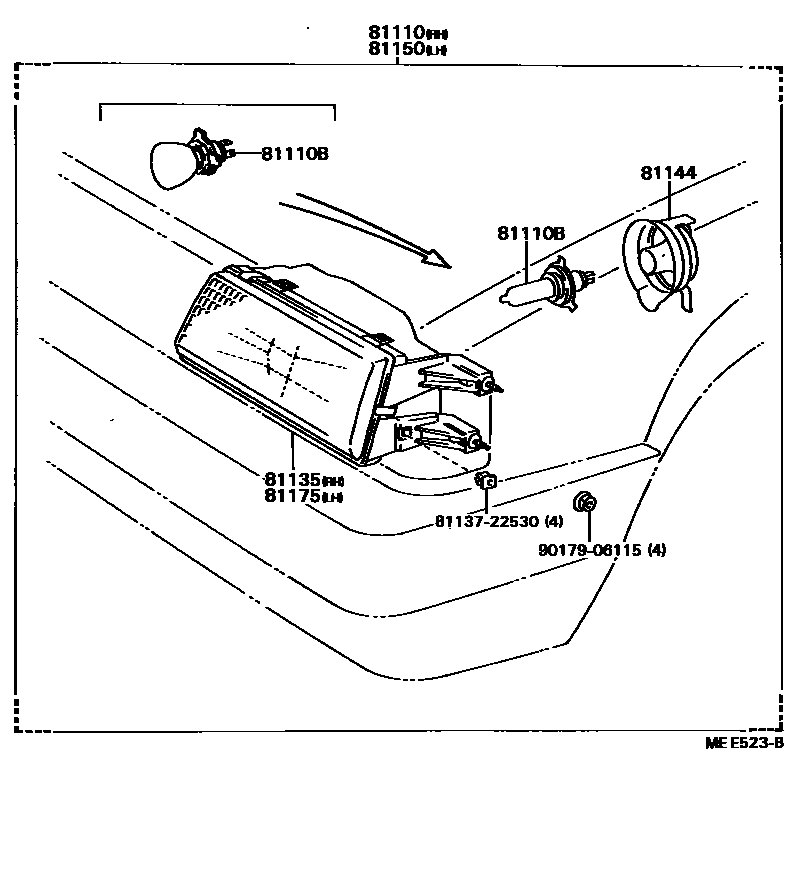

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-39865 · 81110-39875 · 81110-39885 · 81110-39895 · 81110-80394 · 81110-80395 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13022 |
| 81115A | Right headlight body and reflector sub-assembly | 81105-32030 · 81105-32040 · 81135-32010 · 81135-32020 |
| 81116 | Enclosed headlight assembly cover | 81139-14880 · 81139-30490 |
| 81116A | Left headlight body and reflector sub-assembly | 81106-32030 · 81106-32040 · 81175-32010 · 81175-32020 |
| 81117 | Headlight housing seal | 81136-32030 · 81147-32020 |
| 81135 | Right headlight assembly | 81135-32011 · 81135-32021 |
| 81138 | headlight spring | 81138-14880 · 81138-20550 · 81138-24010 · 81138-32030 |
| 81144 | No. 1 headlight cover | 81139-20730 · 81139-20810 |
| 81146 | Right headlight lampshade | 81135-32030 · 81146-32020 |
| 81150 | Left headlight assembly | 81150-39865 · 81150-39875 · 81150-39885 · 81150-39895 · 81150-80386 · 81150-80387 |
| 81175 | Left headlight assembly | 81175-32011 · 81175-32021 |
| 81186 | Left headlight lampshade | 81176-32030 · 81186-32020 |
