Toyota CAMRY 挡泥板和扰流板 — Figure 7601

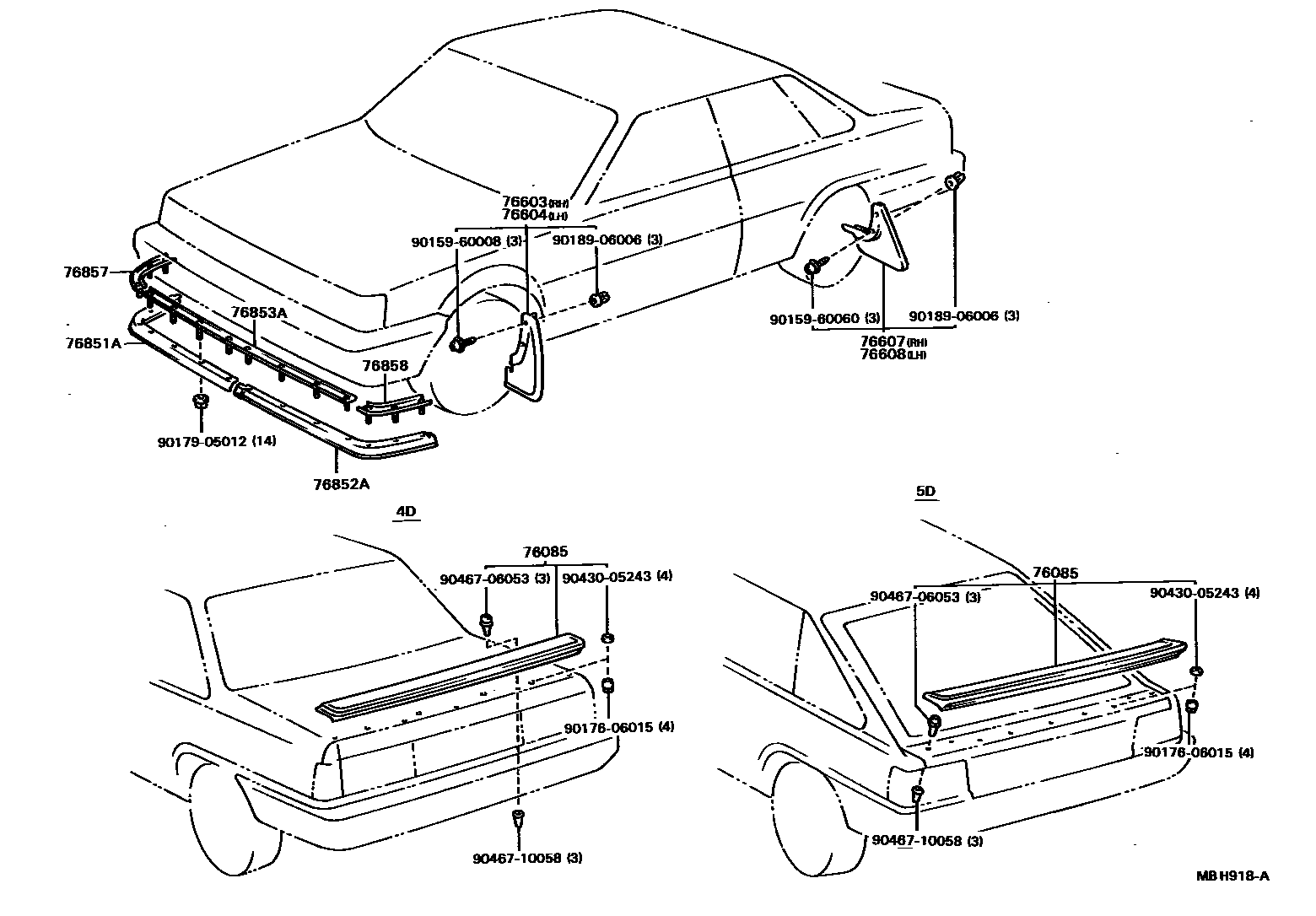

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-32010 · 76085-32020 |
| 76603 | Right front fender fender sub-assembly | 76621-39025 · 76621-39075 |
| 76604 | Left front fender fender sub-assembly | 76622-39025 · 76622-39075 |
| 76607 | Right rear side fender sub-assembly | 76625-39045 · 76625-39105 |
| 76608 | Left rear side fender sub-assembly | 76626-39045 · 76626-39095 |
| 76851A | Right front spoiler cover | 76851-32010 |
| 76852A | Left front spoiler cover | 76852-32010 |
| 76853A | No. 1 front spoiler fixings | 76853-32010 |
| 76857 | Right front spoiler fixing | 76857-32010 |
| 76858 | Left front spoiler fixing | 76858-32010 |
