Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 25 PNC and OE references.

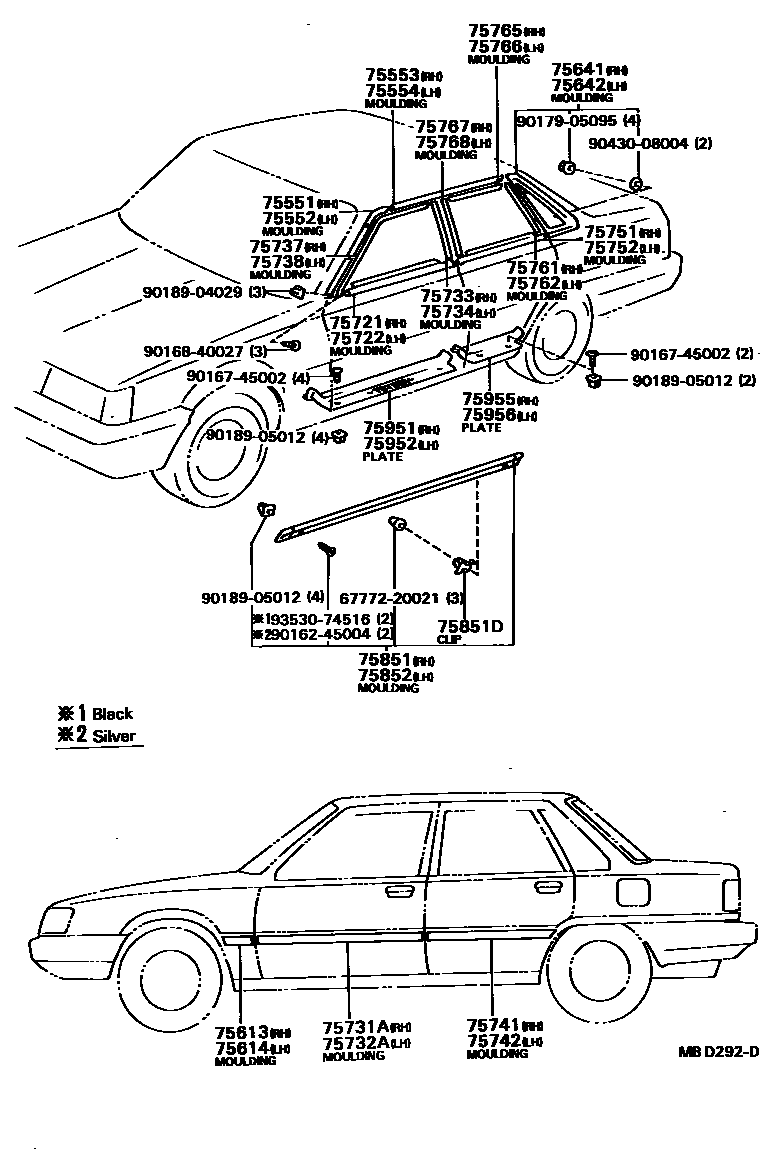

Toyota CAMRY 侧防护条 EPC diagram — MBD292D
侧防护条 — MBD292D (198203 – 999999)

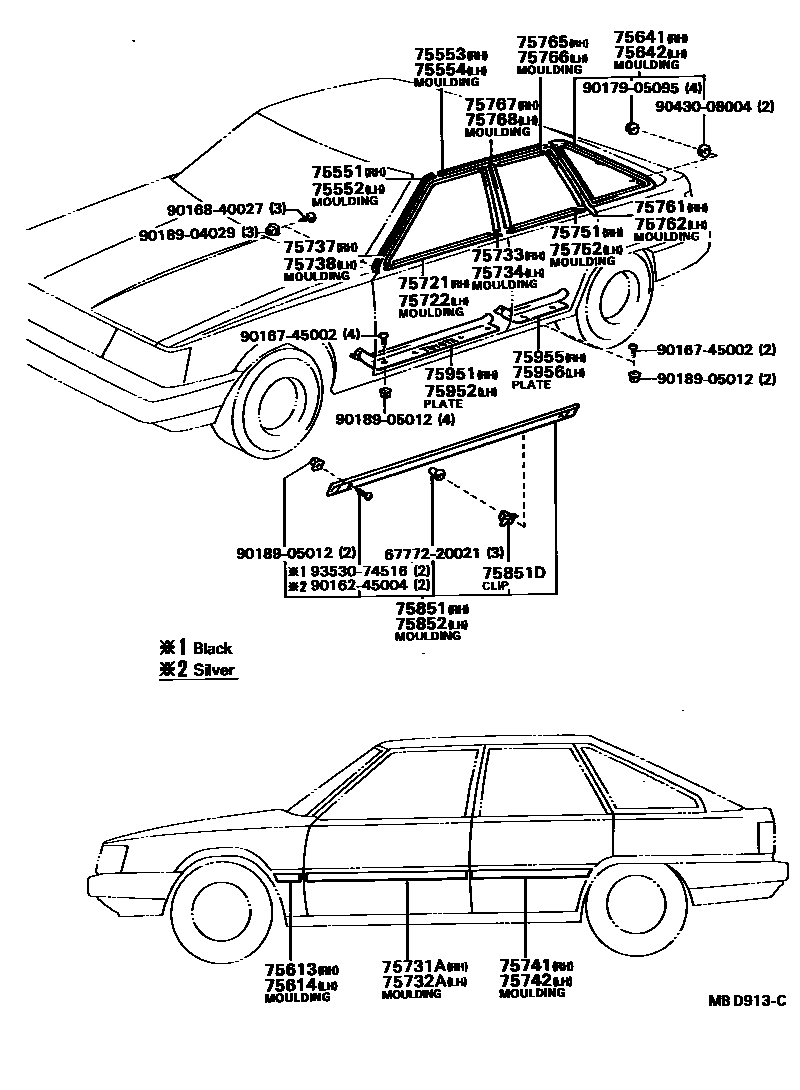

Toyota CAMRY 侧防护条 EPC diagram — MBD913C
侧防护条 — MBD913C (198208 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551Drainage groove side decorative strip on the right side of the roof75551-32010 · 75551-32020
75552Drainage groove side decorative strip on the left side of the roof75552-32010 · 75552-32020
75553Drainage groove side decorative strip on the right side of the roof75553-32010 · 75553-32020
75554Drainage groove side decorative strip on the left side of the roof75554-32010 · 75554-32020
75641Right front corner window outer protective strip68153-39025 · 68153-39035
75642Left front corner window protection strip68154-39025 · 68154-39035
75721Right front door waistline protection strip75710-32010 · 75710-32020
75722Left front door waistline protection strip75720-32010 · 75720-32020
75733Right front door window frame rear protective strip75755-32010 · 75755-32020
75734Left front door window frame rear protective strip75756-32010 · 75756-32020
75737Right front door window frame front protective strip75751-32010 · 75751-32020
75738Left front door window frame front protective strip75752-32010 · 75752-32020
75741Right rear door outer protective strip75741-32060
75742Left rear door outer protective strip75742-32060
75751Right rear door waistline protection strip75730-32010
75752Left rear door waistline protection strip75740-32010
75761Right rear door window frame rear protective strip75765-32010 · 75765-32020
75762Left rear door window frame rear protective strip75766-32010 · 75766-32020
75765Protective strip on right rear door window frame75763-32010 · 75763-32020
75766Protective strip on left rear door window frame75764-32010 · 75764-32020
75767Right rear door window frame front protective strip75761-32010 · 75761-32020
75768Left rear door window frame front protective strip75762-32010 · 75762-32020
75851Right side door sill panel protective strip75850-39045 · 75850-39055
75851DClip (for rocker panel protective strip assembly)75867-32010
75852Left side door sill panel protective strip75850-39045 · 75850-39055
