Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

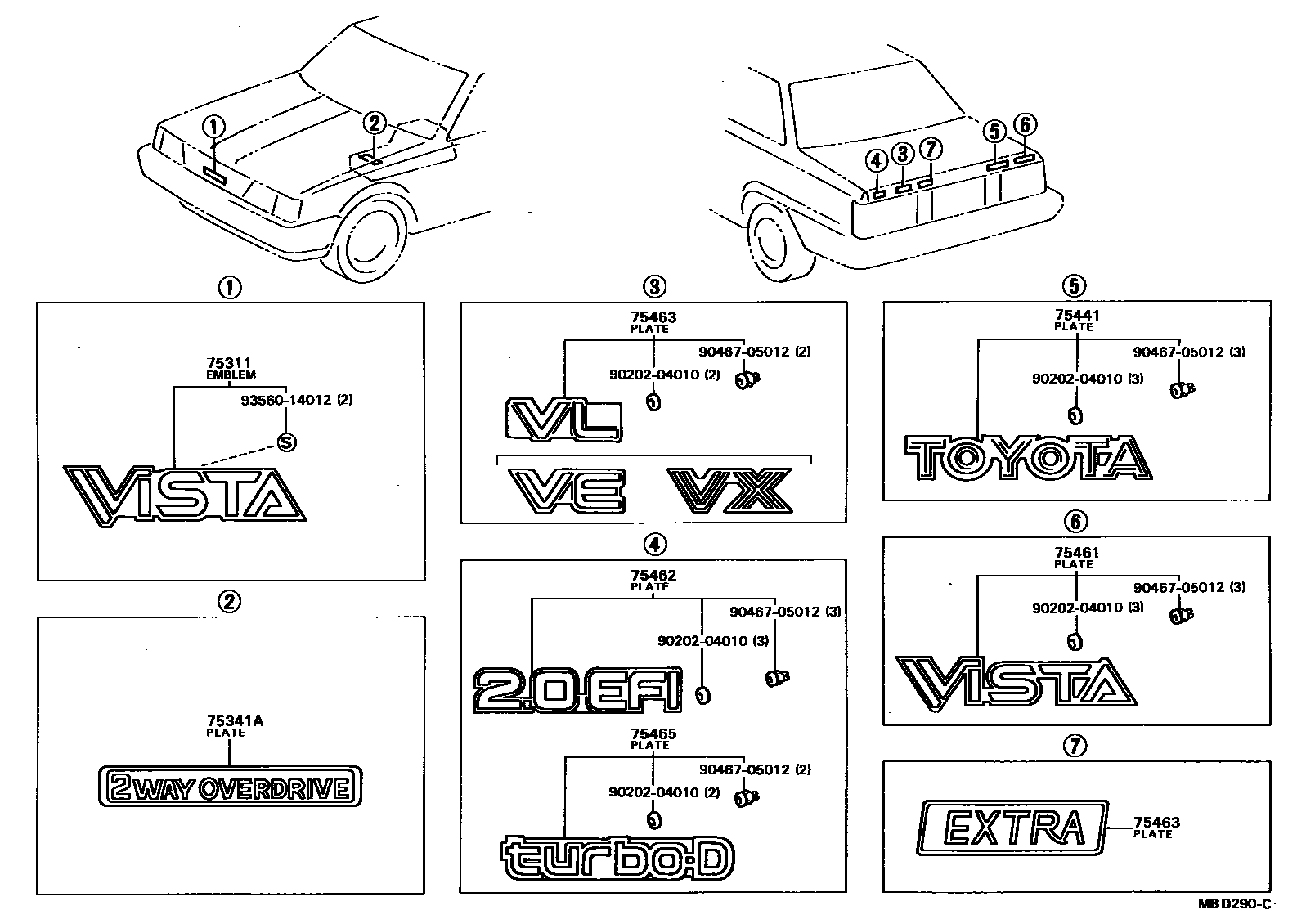

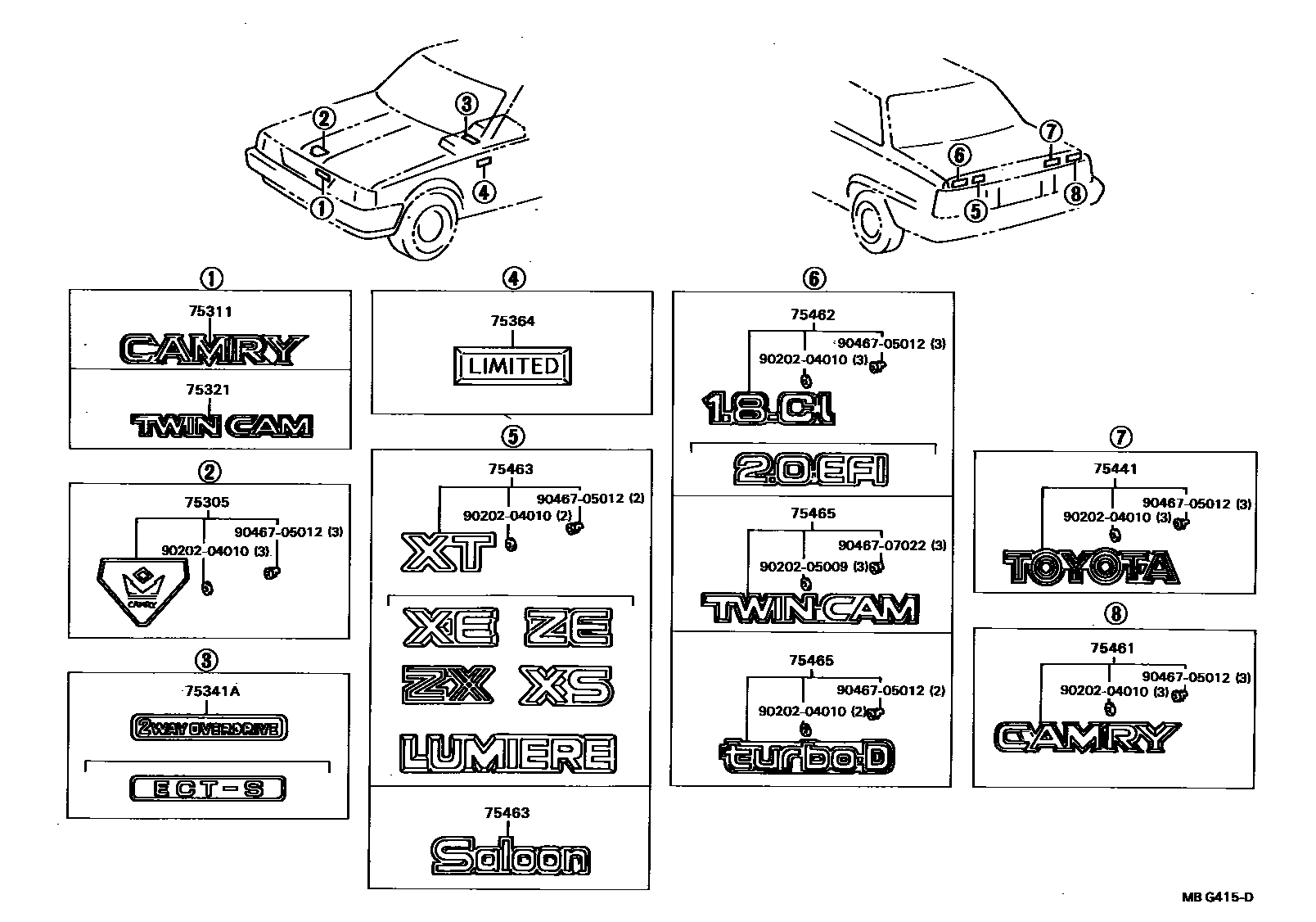

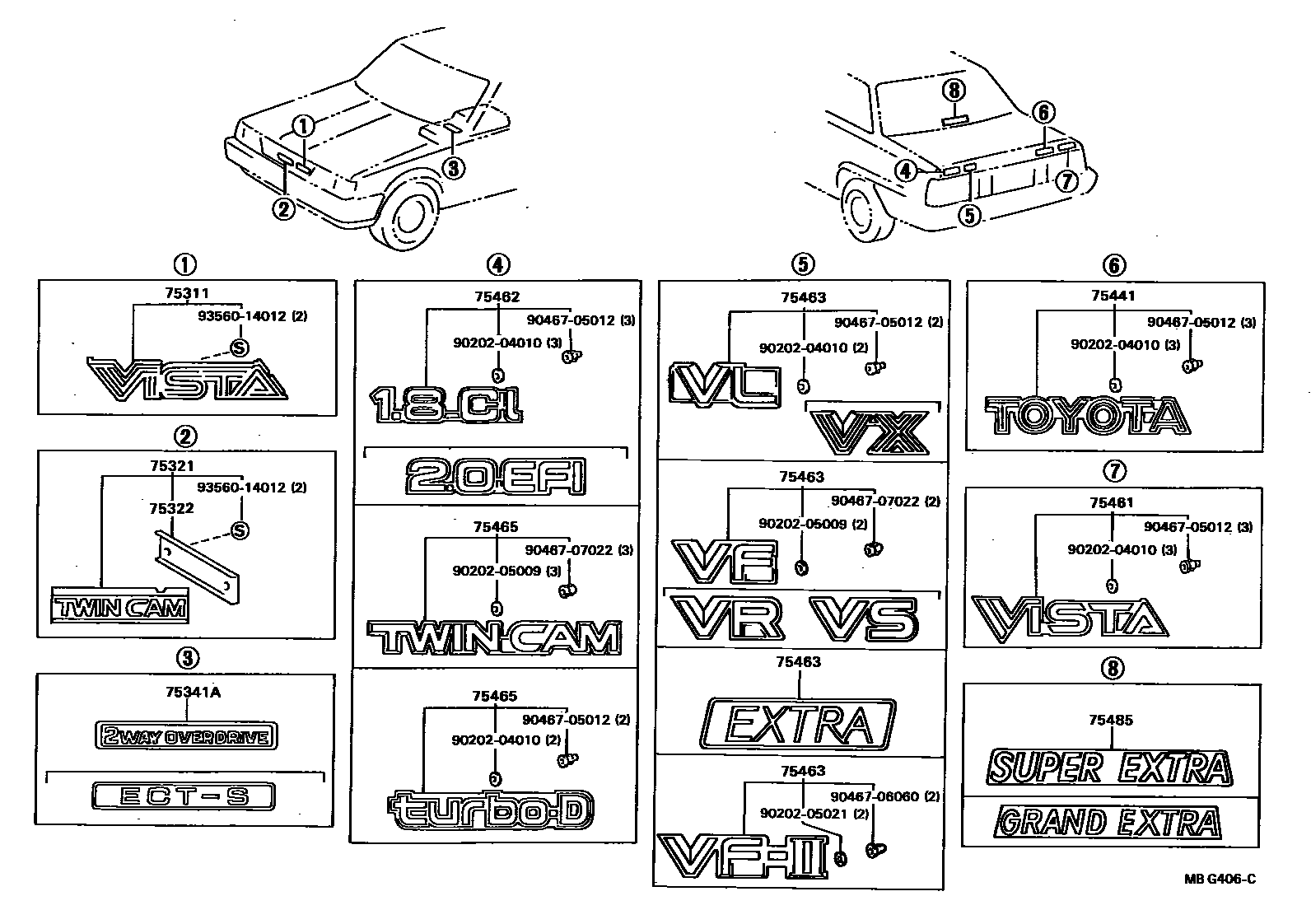

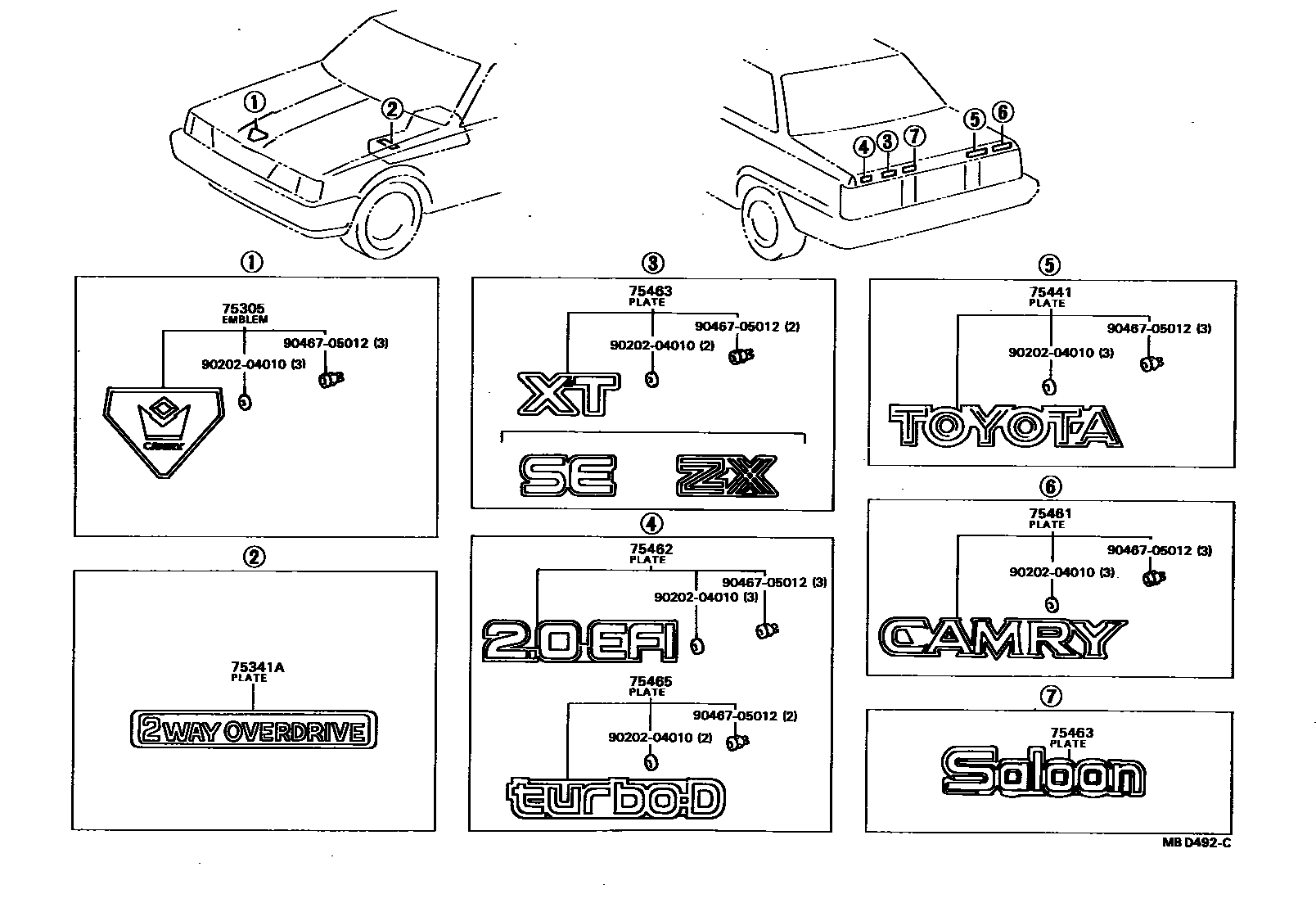

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75331-32010 |
| 75311 | Radiator grille (or front panel) plate | 75311-32040 · 75311-39125 · 75311-39175 |
| 75321 | Radiator grille or front plate | 75312-32020 · 75312-39015 |
| 75322 | Radiator grille nameplate fasteners | 75324-32010 |
| 75341A | Armrest box No. 1 nameplate | 35989-12010 · 58835-24010 · 58835-24020 · 58835-32010 |
| 75364 | Front fender No. 2 nameplate (grade mark) | 75350-32010 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-32010 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-32010 · 75442-32020 · 75442-32040 |
| 75462 | Rear No. 3 nameplate (displacement) | 75444-32010 · 75444-32040 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-32010 · 75443-32020 · 75443-32030 · 75443-32040 · 75443-32050 · 75443-32060 · 75443-32110 · 75443-32120 · 75443-32130 · 75443-32140 · 75443-32150 · 75443-32160 · 75443-32170 · 75443-32180 · 75445-32010 · 75473-12020 |
| 75465 | No. 5 nameplate (organization) | 75444-32020 · 75444-32030 · 75444-32050 |
| 75485 | Back window nameplate | 75485-32010 · 75485-32020 |
