Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

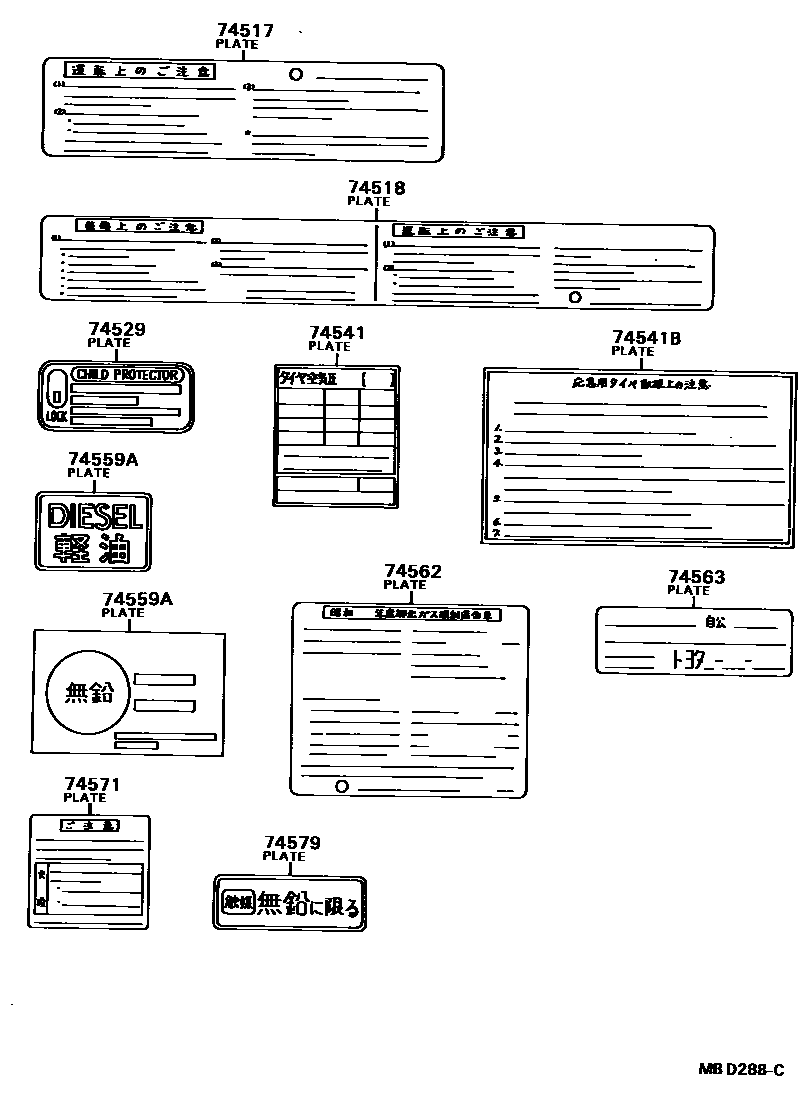

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74517 | Exhaust temperature warning nameplate | 74517-32010 · 74517-32020 |
| 74518 | Maintenance warning nameplate | 74518-32010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 · 69339-20030 |
| 74541 | tire pressure warning plate | 42661-32010 · 42661-32050 |
| 74541B | Small spare tire warning plate | 42668-32010 |
| 74559A | Fuel warning plate | 74559-14010 · 74559-14030 |
| 74562 | Emission control system information plate | 74562-20280 · 74562-20300 · 74562-20360 · 74562-32010 · 74562-32011 · 74562-32020 · 74562-32021 · 74562-32031 · 74562-32040 · 74562-32050 · 74562-32070 |
| 74563 | Emission control equipment identification plate | 74563-32010 · 74563-32020 |
| 74571 | Brake fluid warning plate | 74571-27011 · 74571-27021 · 74571-27022 |
| 74579 | Unleaded fuel warning nameplate | 74579-30011 |
