Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104

Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 3 PNC and OE references.

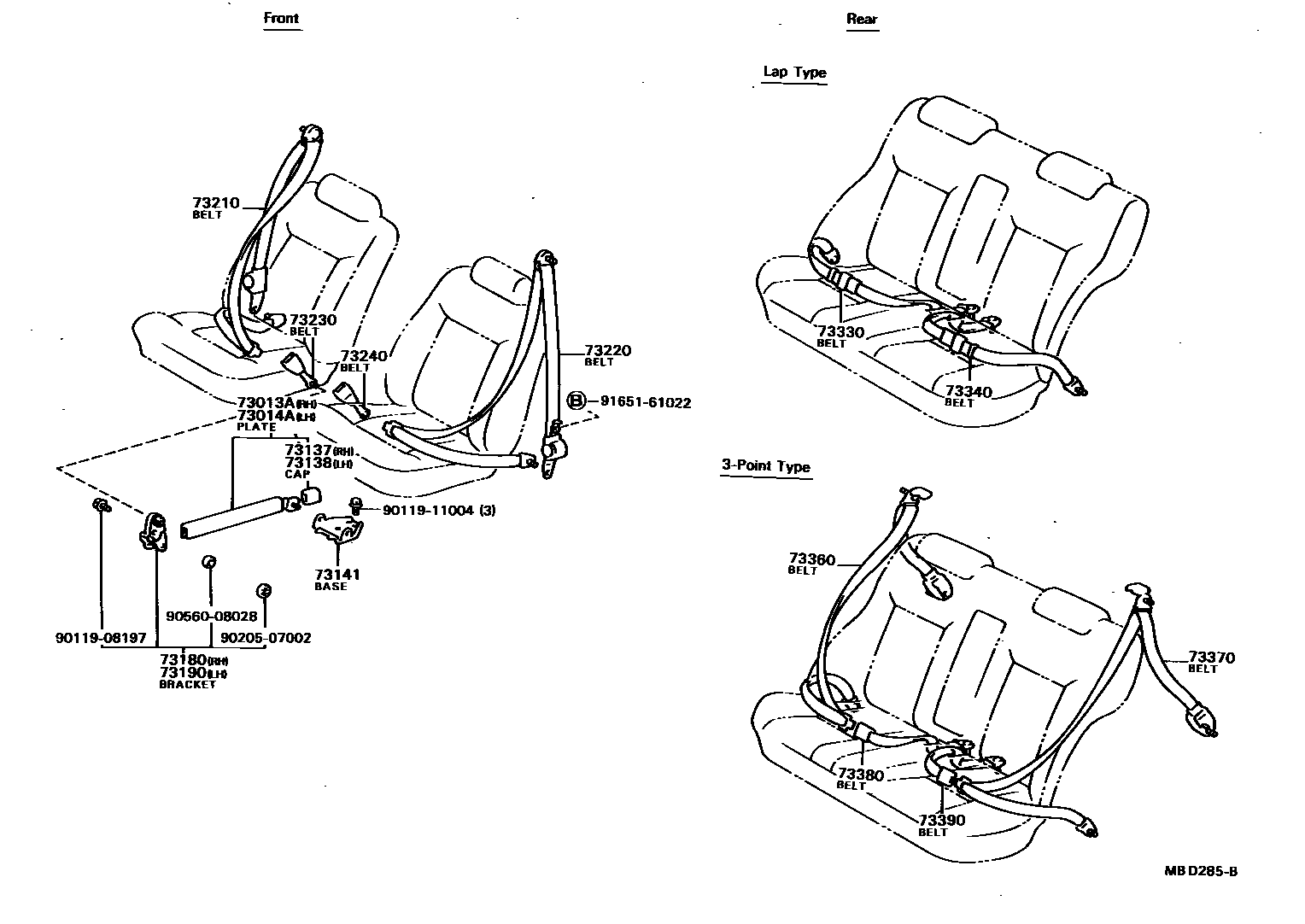

Toyota CAMRY 安全带和儿童保护座椅 EPC diagram — MBD285B
安全带和儿童保护座椅 — MBD285B (198203 – 999999)

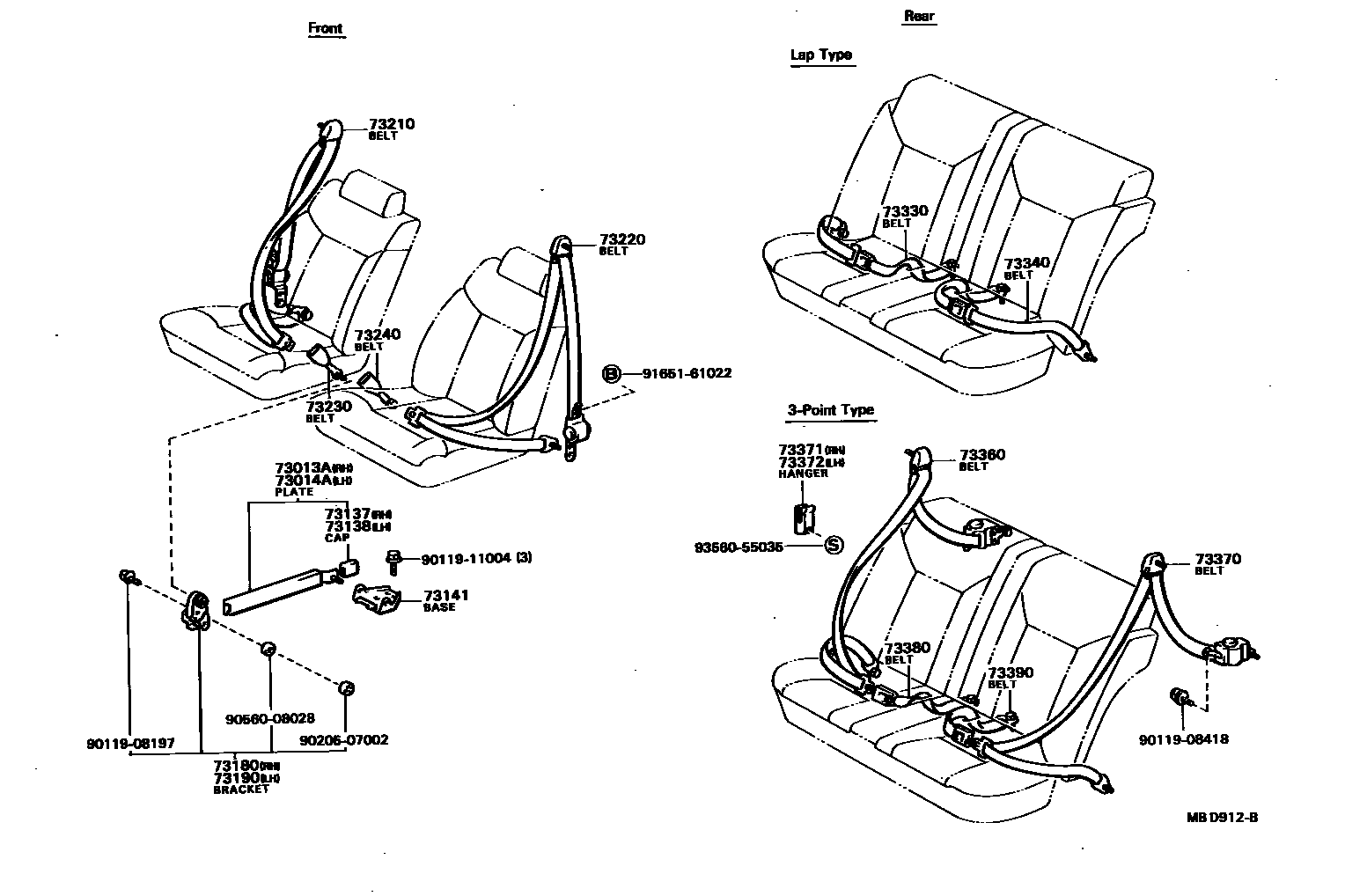

Toyota CAMRY 安全带和儿童保护座椅 EPC diagram — MBD912B
安全带和儿童保护座椅 — MBD912B (198208 – 999999)

PNC and OE references

PNCPart nameOE numbers
73141Front seat belt anchor base73141-32010
73180Right seat belt inner anchor bracket assembly73011-32010
73190Left side seat belt inner anchor bracket assembly73012-32010
