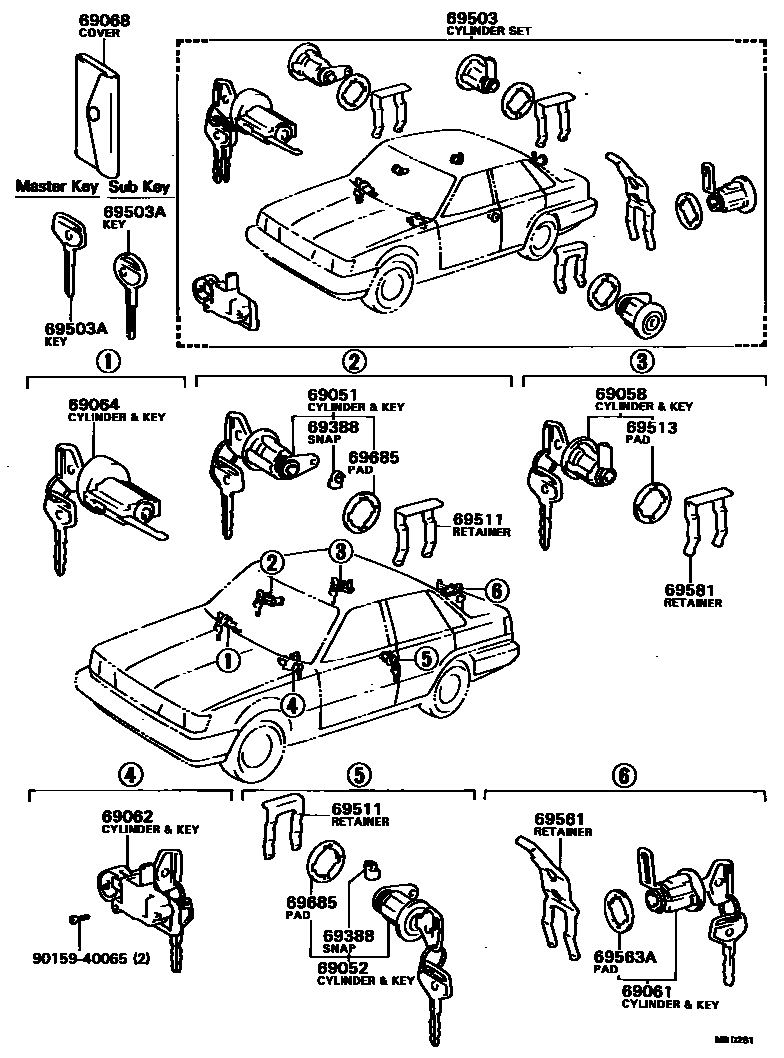

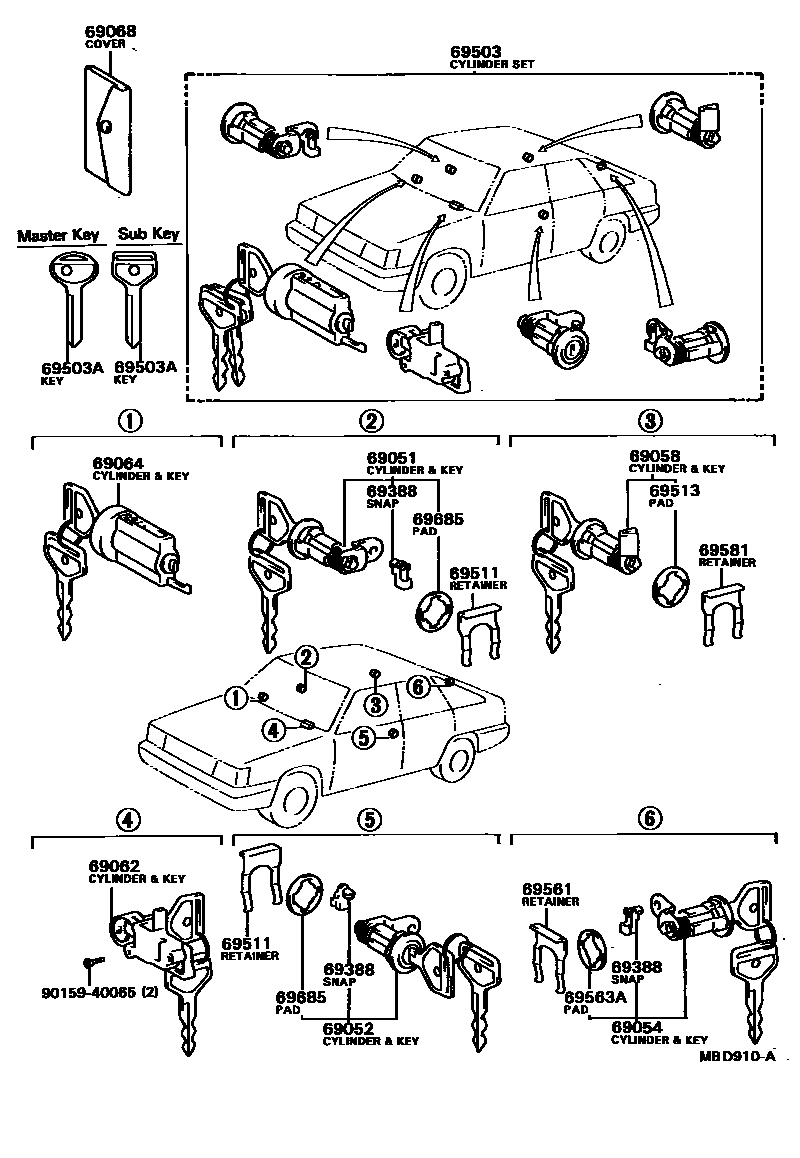

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-32010 |
| 69052 | Left door lock cylinder and key assembly | 69052-32010 |
| 69054 | Rear door lock cylinder and key assembly | 69055-32030 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-32010 |
| 69061 | Luggage lock cylinder and key assembly | 69055-32010 · 69055-32070 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-32010 |
| 69068 | Key cover sub-assembly | 69555-20010 |
| 69388 | Lever clip (for door lock) | 69759-24080 · 69759-24090 |
| 69503A | external tooth key | 90999-00069 · 90999-00070 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69561 | Trunk or tailgate lock cylinder fixings | 69511-32010 · 69561-32010 |
| 69563A | Trunk door lock cylinder lining | 69563-32010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69685 | Lock cylinder liner | 69513-32010 |
