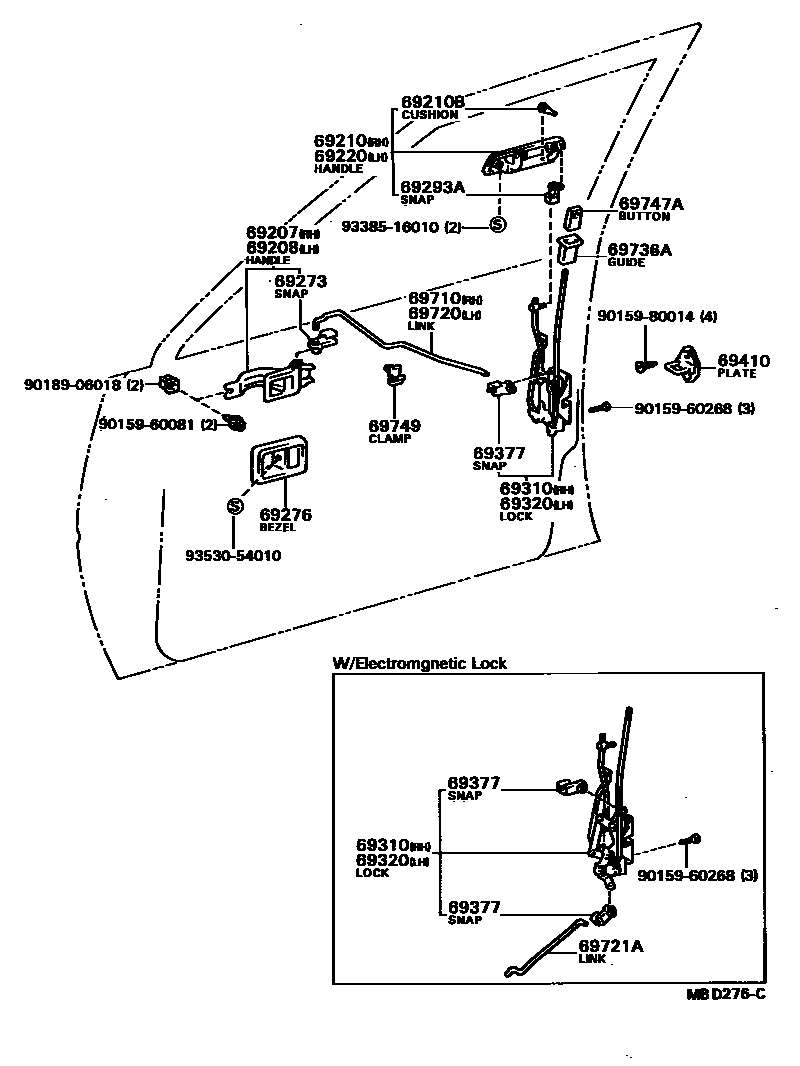

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69207 | Right front door inner handle sub-assembly | 69205-30030 |
| 69208 | Left front door inner handle sub-assembly | 69206-30020 |
| 69210 | Right front door outer handle assembly | 69210-32010 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69220 | Left front door outer handle assembly | 69220-32010 |
| 69273 | Inner door handle lever buckle | 69759-14050 · 69759-24010 · 69759-24020 · 69759-24070 |
| 69293A | Front door outer handle buckle | 69293-22010 · 69293-22020 |
| 69310 | Right front door lock assembly | 69310-32010 · 69310-32020 · 69310-32070 · 69310-32080 |
| 69320 | Left front door lock assembly | 69320-32010 · 69320-32020 · 69320-32060 |
| 69377 | Front door lock control link buckle | 69759-24050 · 69759-24060 · 69759-32010 · 69759-32020 |
| 69410 | Front door lock plate assembly | 69410-14050 · 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-32010 |
| 69720 | Left front door opening control linkage assembly | 69712-32010 |
| 69721A | Front door lock actuator linkage | 69721-32010 |
| 69736A | Front door lock link guide block | 69736-12030 · 69736-22021 |
| 69749 | Front door lock link clip | 69749-12010 · 69749-30020 |
