Toyota CAMRY 底板和底板装饰罩 — Figure 6404

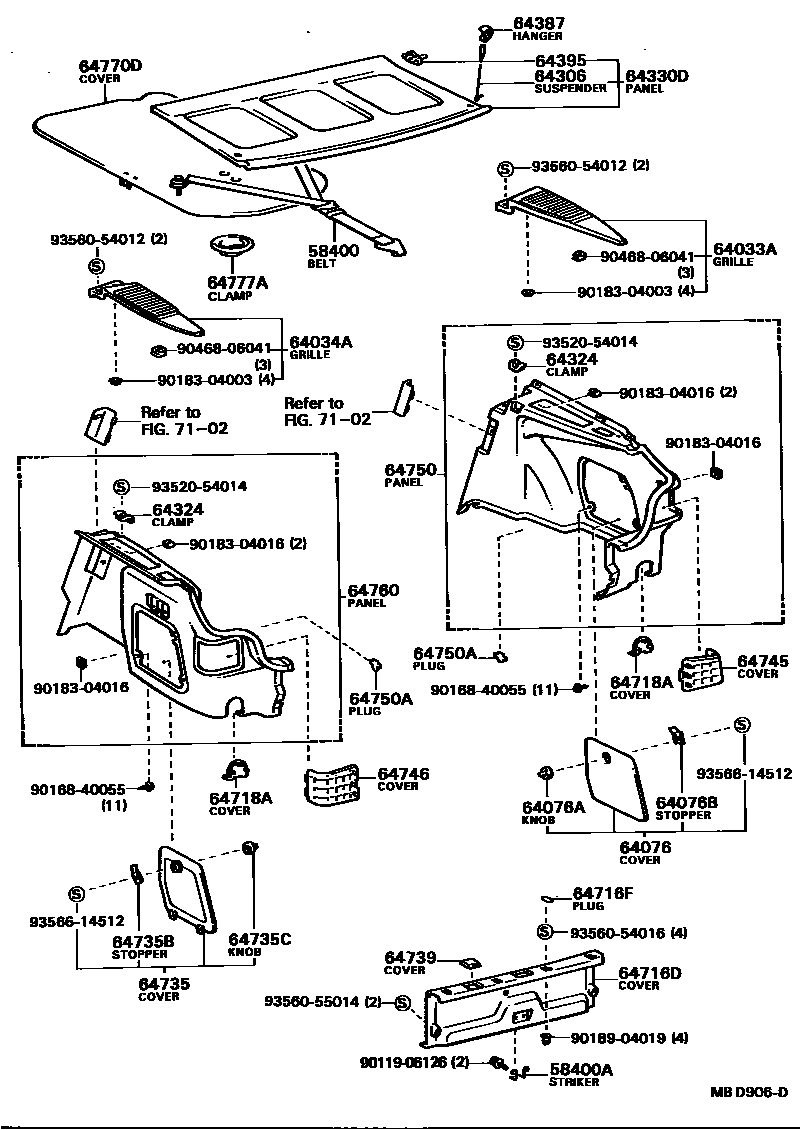

Toyota CAMRY EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400A | Suitcase fixing strap lock | 58461-14040 |
| 64076B | Bottom panel side trim jack cover stop | 64981-16021 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-16010 · 64306-32010 |
| 64387 | Glove box decorative panel hanger | 64381-10010 |
| 64395 | Glove box trim panel hinge pin | 64395-12010 · 64396-12010 |
| 64735B | Bottom panel side trim access hole cover stopper | 64981-16021 |
| 64770D | Spare tire cover assembly | 64770-32020 |
| 64777A | Spare tire cover clip | 64777-32020 |
