Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 9 PNC and OE references.

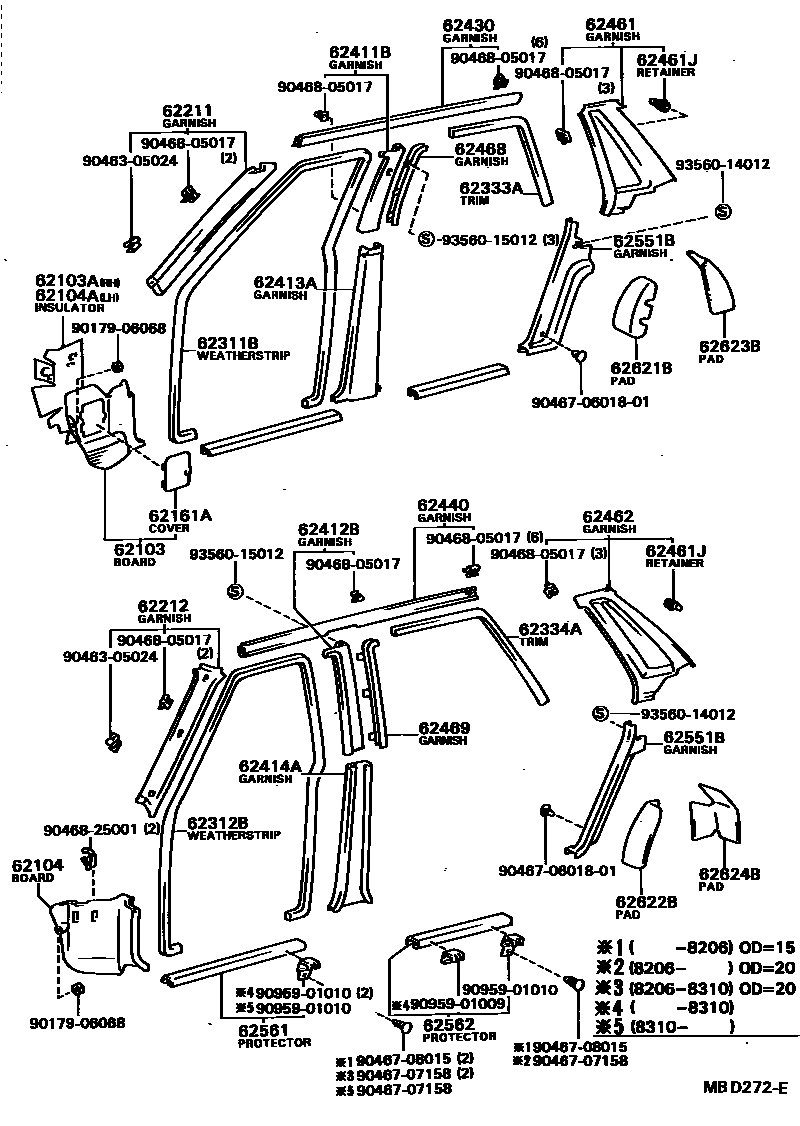

Toyota CAMRY 内饰板和车门防水胶条 EPC diagram — MBD272E
内饰板和车门防水胶条 — MBD272E (198203 – 999999)

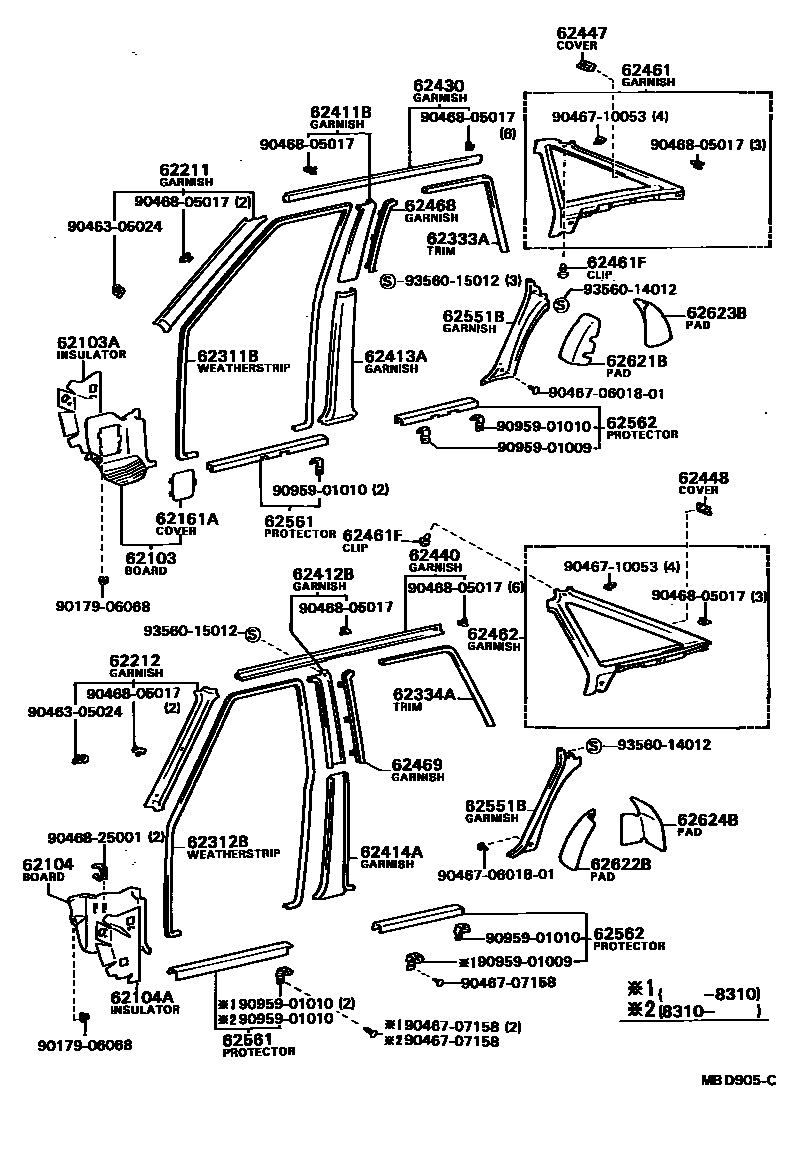

Toyota CAMRY 内饰板和车门防水胶条 EPC diagram — MBD905C
内饰板和车门防水胶条 — MBD905C (198208 – 999999)

PNC and OE references

PNCPart nameOE numbers
62103ARight front wall side heat insulation pad sub-assembly62105-32010
62104ALeft front wall side heat insulation pad sub-assembly62106-32010
62461JRoof side trim trim fixings67771-22020
62561Front door inner sill protection strip62561-32010 · 62562-32010
62562Rear door inner sill protection strip62563-32010 · 62564-32010
62621BRight front side wheel housing lining block62621-32010
62622BLeft front side wheel housing lining block62622-32010
62623BRight rear side wheel housing lining block62623-32010
62624BLeft rear side wheel housing lining block62624-32010
