Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

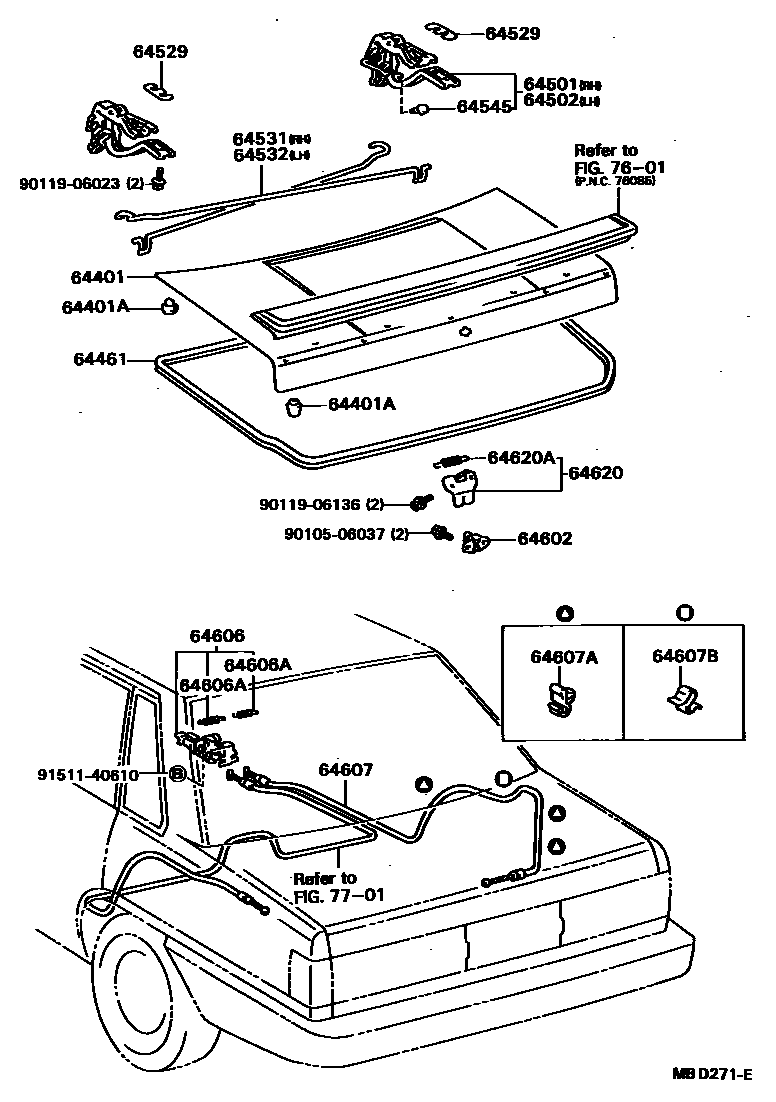

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-32010 · 64401-32070 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06076 · 90541-09021 |
| 64461 | Trunk door seal | 64461-32010 |
| 64501 | Trunk door right hinge sub-assembly | 64510-32010 |
| 64502 | Trunk door left hinge sub-assembly | 64520-32010 |
| 64529 | Trunk door hinge spacer | 64529-20010 |
| 64531 | Trunk door right hinge torsion bar | 64531-32010 · 64531-32020 |
| 64532 | Trunk door left hinge torsion bar | 64532-32010 · 64532-32020 |
| 64545 | Trunk door hinge cushion | 90541-07007 |
| 64602 | Trunk door lock buckle sub-assembly | 64620-32010 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-32010 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09004 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-32010 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 69749-12010 |
| 64607B | Clip No. 2 (for trunk door lock control cable) | 90463-05005 |
| 64620 | Trunk door lock assembly | 64610-20030 · 64610-32010 |
| 64620A | Tension spring (for trunk door lock) | 90506-08001 · 90506-09001 |
