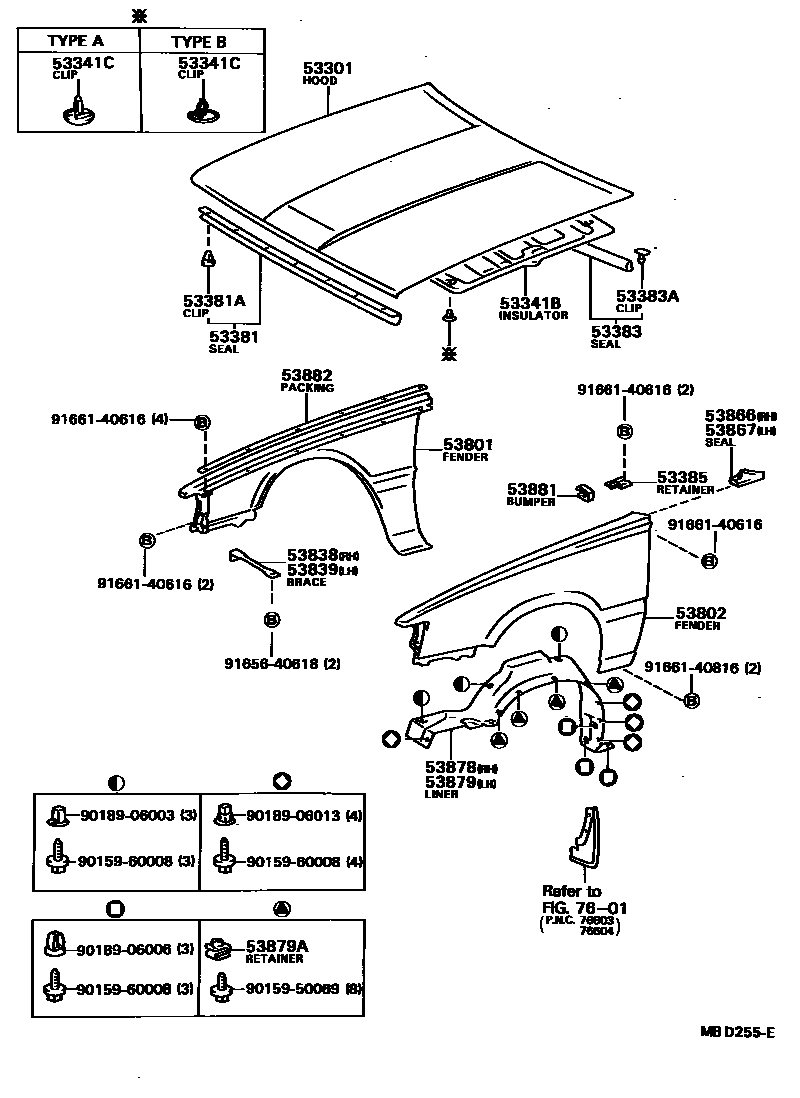

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-32010 · 53301-32020 |
| 53341B | engine cover gasket | 53341-32010 · 53341-32020 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 · 90467-11020 |
| 53381 | Engine cover to radiator bracket seal | 53381-32010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-32010 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08030 · 90467-08044 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-32010 · 53801-32020 · 53801-32050 · 53801-32060 |
| 53802 | Left front fender sub-assembly | 53802-32010 · 53802-32050 |
| 53838 | Right front fender stay | 53835-32010 |
| 53839 | Left front fender stay | 53835-32010 |
| 53866 | Right front fender to cowl side seal | 53866-32010 |
| 53867 | Left front fender to cowl side seal | 53867-32010 |
| 53878 | Right front fender lining | 53875-32010 |
| 53879 | Left front fender lining | 53876-32010 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53881 | fender to engine cover buffer block | 53384-14030 |
| 53882 | Front fender main seal | 53882-32010 |
