Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 6 PNC and OE references.

Toyota CAMRY radiator grille EPC diagram — MBD254D
radiator grille — MBD254D (198203 – 198406)

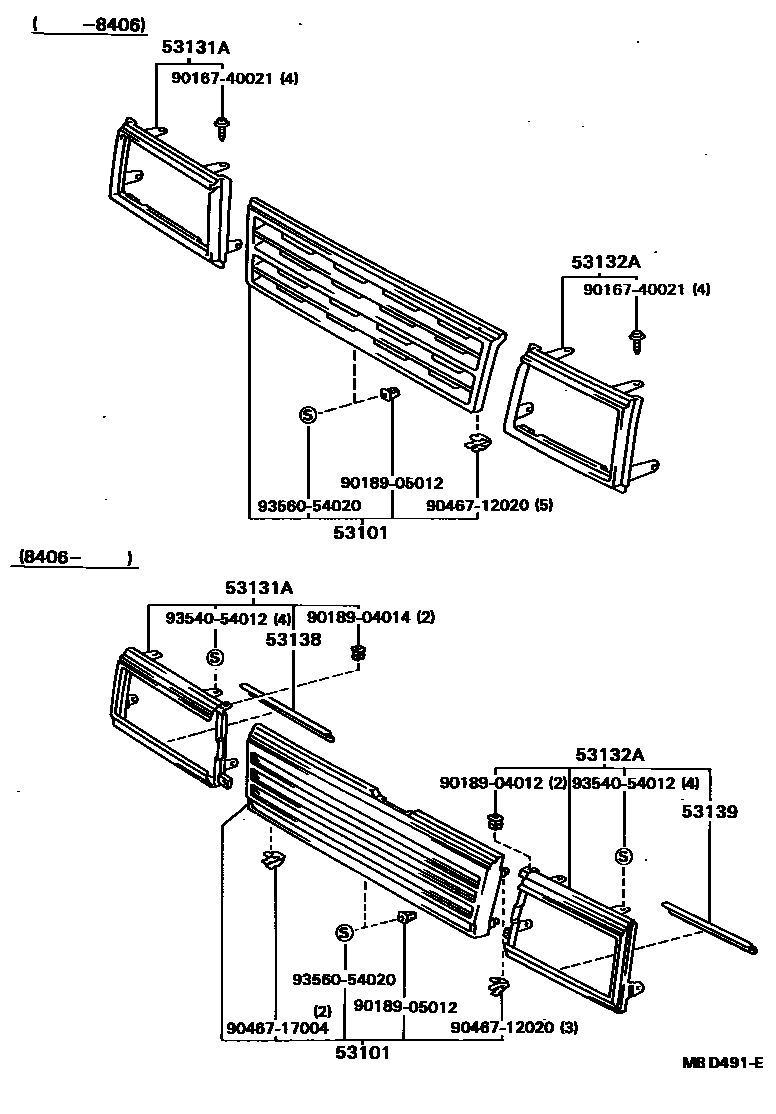

Toyota CAMRY radiator grille EPC diagram — MBD491E
radiator grille — MBD491E (198203 – 999999)

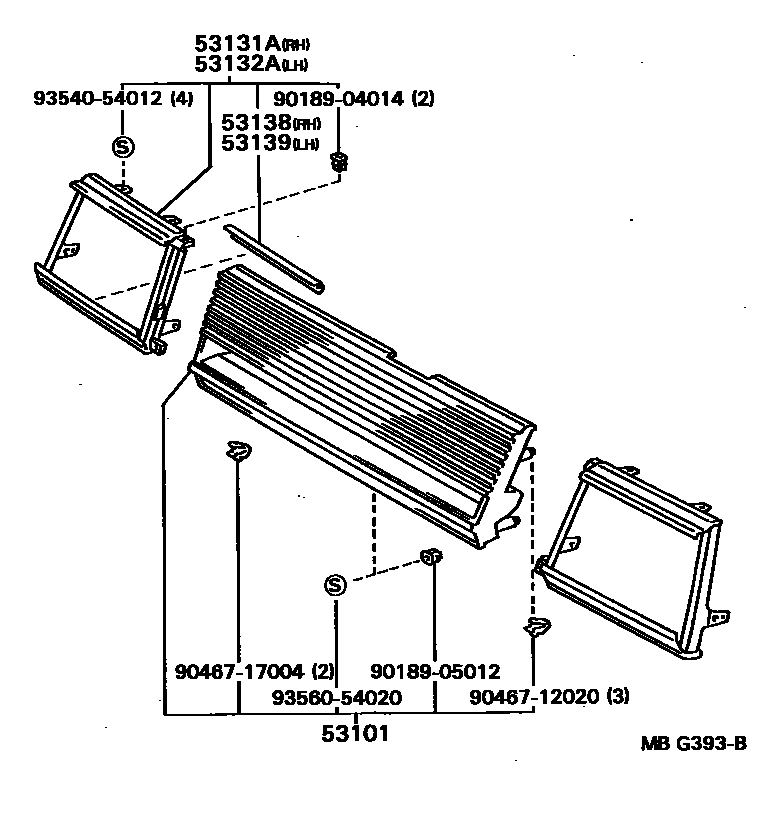

Toyota CAMRY radiator grille EPC diagram — MBG393B
radiator grille — MBG393B (198406 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53101-39025 · 53101-39055 · 53101-39065 · 53101-39075
53121ARadiator grille protection strip53121-32010
53131ARight headlight lampshade53131-39095 · 53131-39105 · 53131-39205 · 53131-39215
53132ALeft headlight lampshade53132-39095 · 53132-39105 · 53132-39205 · 53132-39215
53138Right headlight guard53139-32020 · 53139-32030
53139Left headlight guard53139-32020 · 53139-32030
