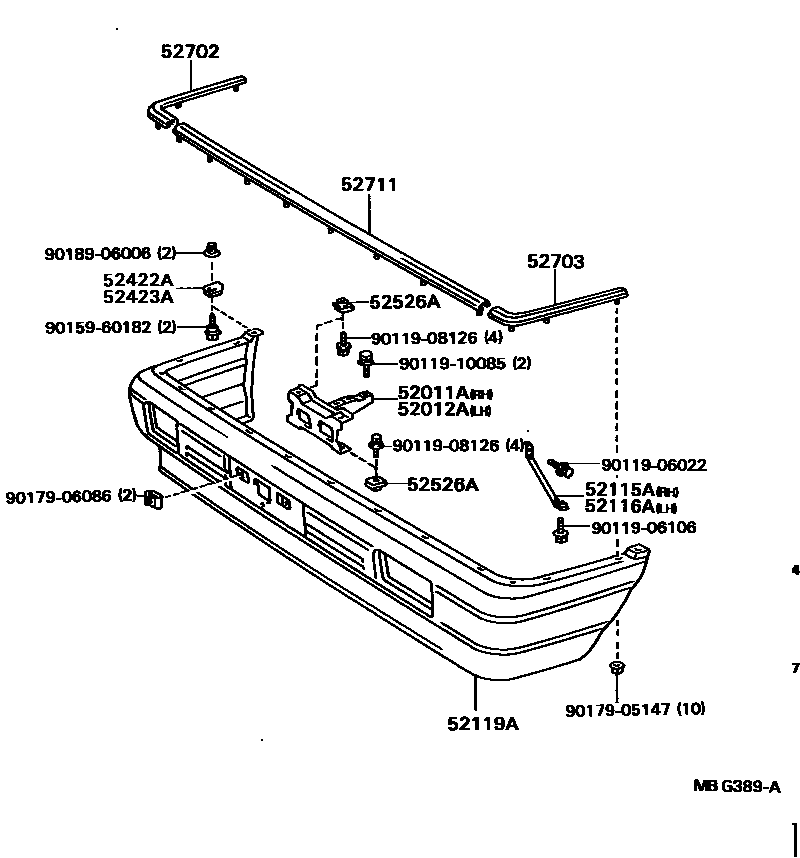

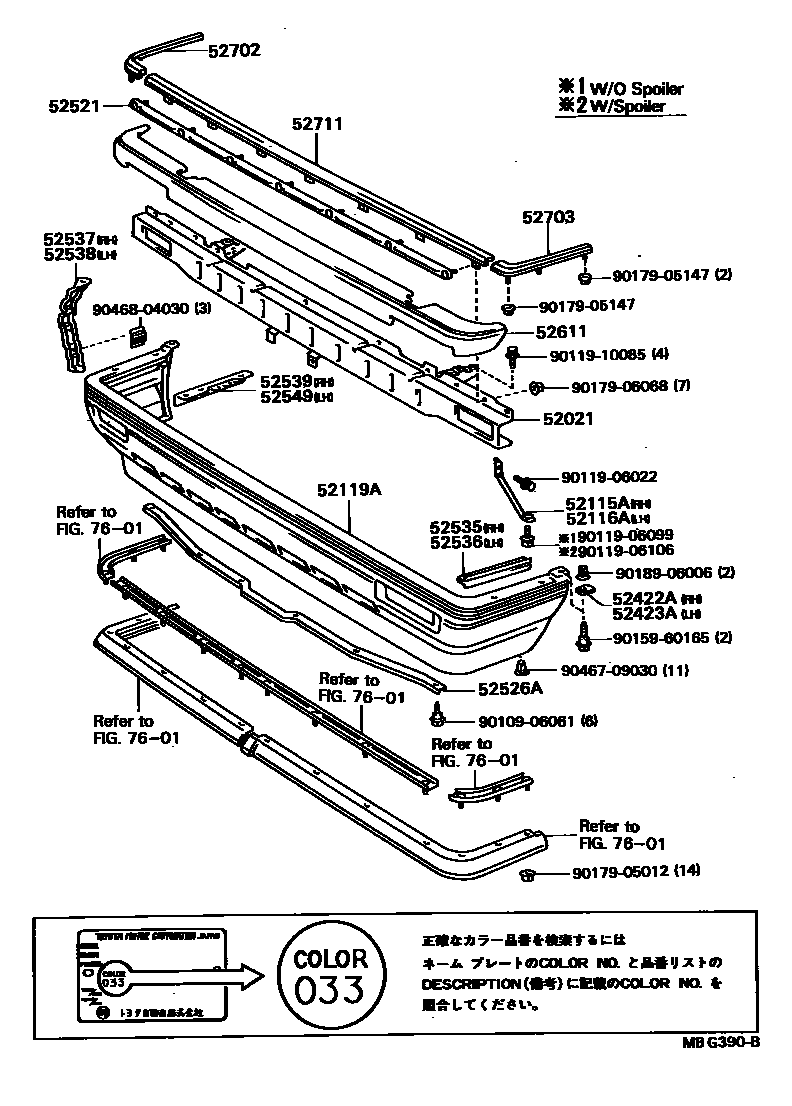

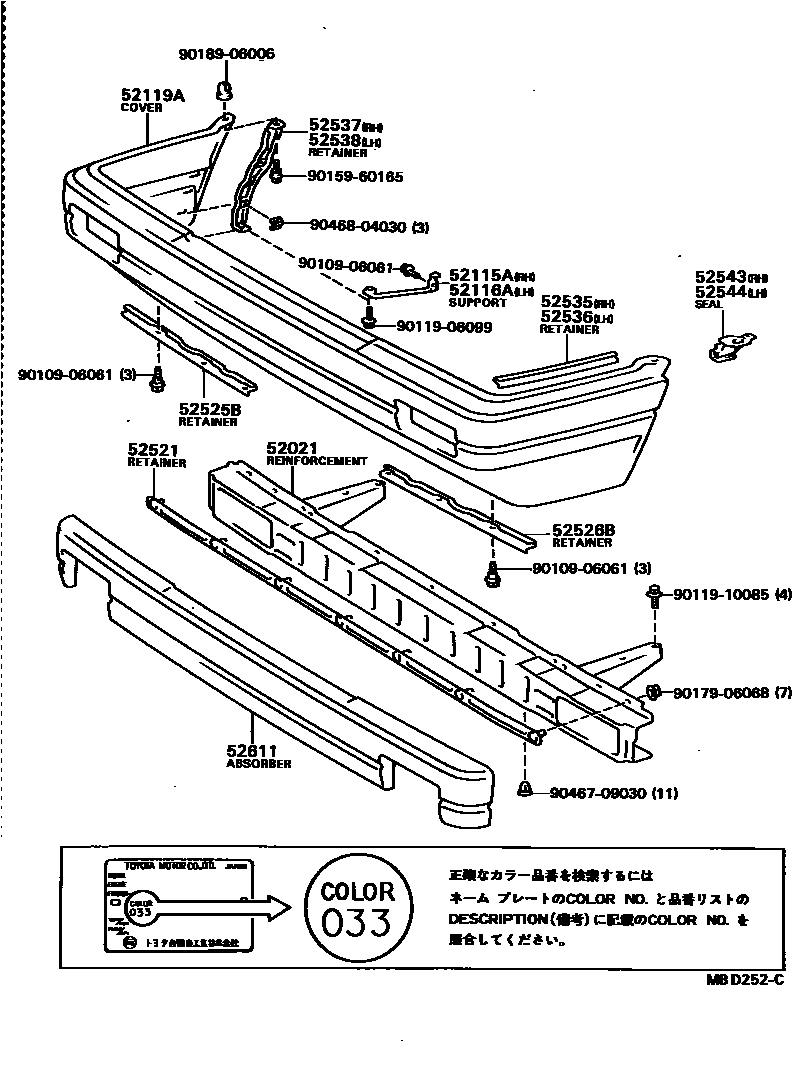

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-32040 |
| 52012A | Front bumper left arm sub-assembly | 52012-32020 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-32010 · 52021-32030 |
| 52115A | Front bumper right side bracket | 52115-32010 |
| 52116A | Front bumper left bracket | 52115-32010 |
| 52119A | front bumper cover | 52119-32020 · 52119-32040 · 52119-32060 · 52119-32130 |
| 52422A | Front bumper right side lining | 52422-32010 |
| 52423A | Front bumper left lining | 52423-32010 |
| 52521 | Front bumper upper center fixing bracket | 52521-32010 · 52521-32040 |
| 52525B | Front bumper lower right side fixing bracket | 52526-32010 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52526-32030 · 52565-16020 |
| 52526B | Front bumper lower left side fixing bracket | 52527-32010 |
| 52535 | Front bumper right side fixing bracket | 52535-32010 · 52535-32020 |
| 52536 | Front bumper left fixed bracket | 52535-32010 · 52535-32020 |
| 52537 | Front bumper right end fixing bracket | 52537-32010 · 52537-32020 · 52537-32030 |
| 52538 | Front bumper left end fixing bracket | 52538-32010 · 52538-32020 · 52538-32030 |
| 52539 | Front bumper No. 3 right side fixing bracket | 52539-32010 |
| 52543 | Front bumper right seal | 52543-32010 |
| 52544 | Front bumper left seal | 52544-32010 |
| 52549 | Front bumper No. 3 left side fixing bracket | 52549-32010 |
| 52611 | front bumper energy absorber | 52611-32010 · 52611-32020 · 52611-32050 |
| 52702 | Front bumper right side protective strip sub-assembly | 52702-32010 · 52702-32020 |
| 52703 | Front bumper left protective strip sub-assembly | 52703-32010 · 52703-32020 |
| 52711 | Front bumper protection strip | 52711-32010 · 52711-32020 |
