Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

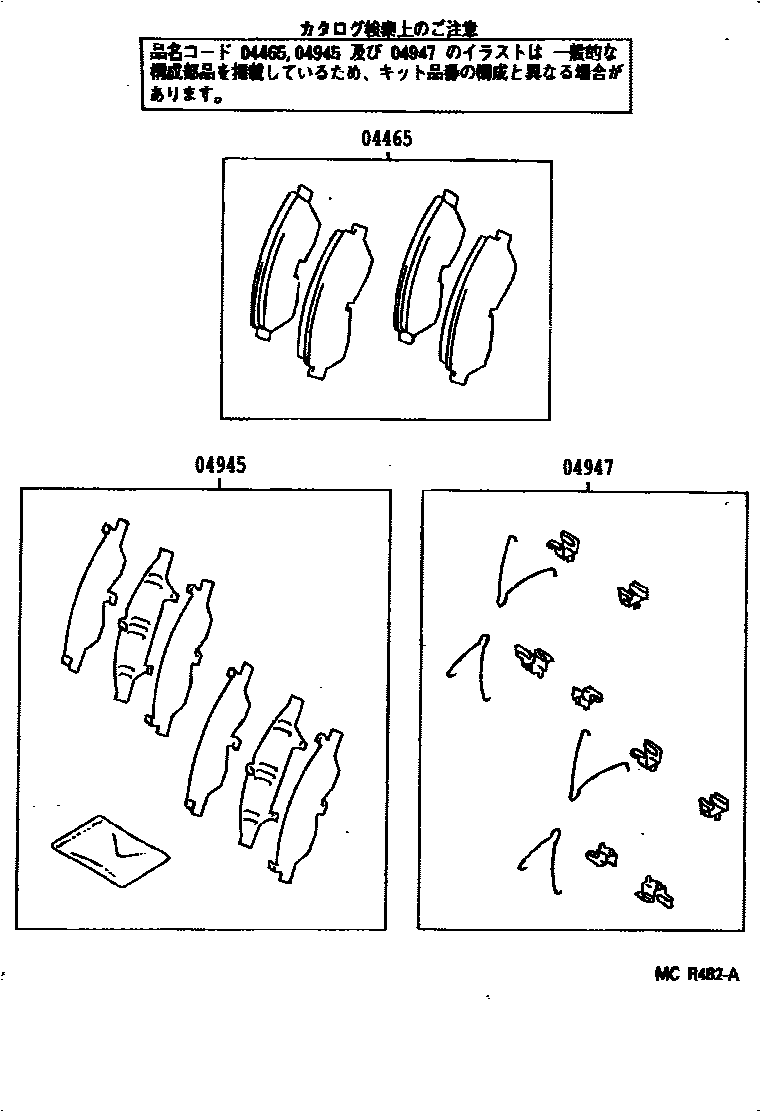

| 04465 | Front disc brake pad assembly | 04465-16031 · 04465-16070 · 04465-32021 |
| 04945 | Front silencer gasket assembly | 04945-32220 |
| 04947 | Front disc brake mounting kit | 04947-32010 · 04947-32070 |

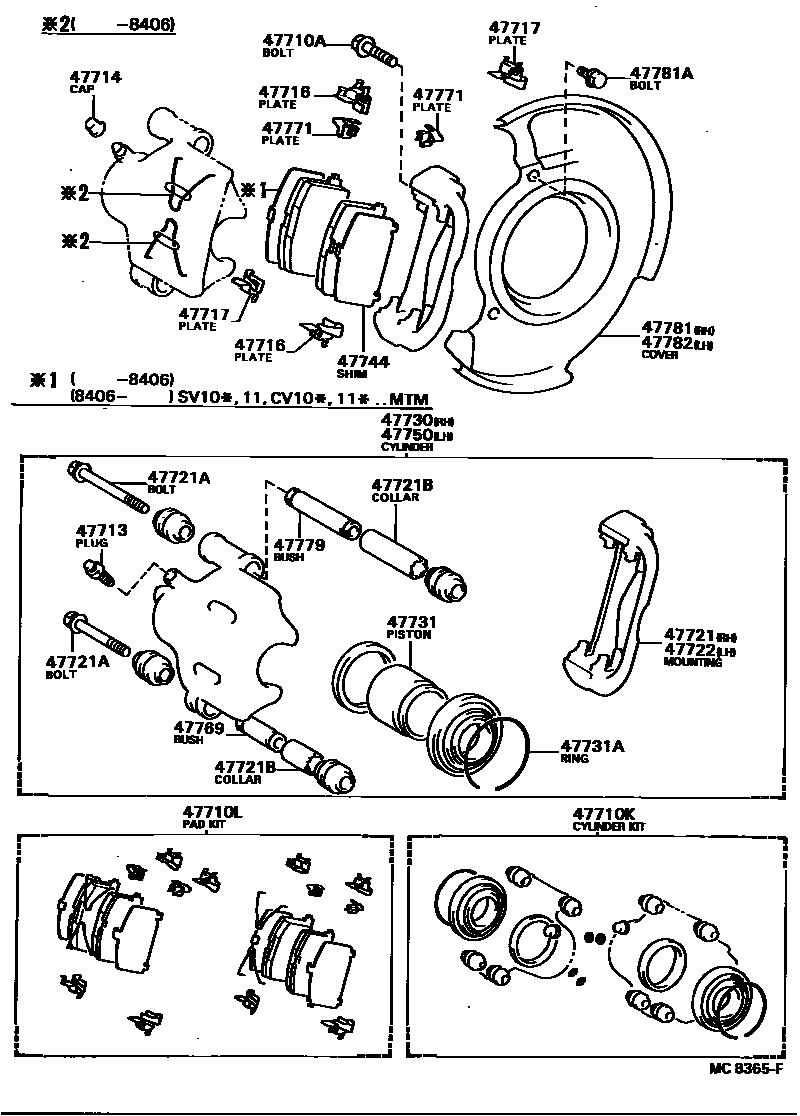

| 47710A | Hexagonal bolt (for front disc brake caliper) | 90119-12040 |
| 47710K | Front disc brake cylinder assembly | 04479-32010 · 04479-32011 |
| 47710L | Front disc brake pad assembly | 04491-32010 · 04491-32040 · 04491-32041 · 04491-32050 |
| 47713 | Bleed plug (for front disc brake) | 47547-20010 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-32010 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-32010 |
| 47721 | Right front disc brake cylinder retainer | 47721-32010 · 47721-32020 · 47721-32030 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-09003 · 90119-09004 |
| 47721B | Collar (for front disc brake cylinder retainer) | 90387-15004 · 90387-15005 |
| 47722 | Left front disc brake cylinder retainer | 47721-32010 · 47721-32020 · 47721-32030 |
| 47730 | Right front disc brake cylinder assembly | 47730-12170 · 47730-17030 · 47730-32010 · 47730-32022 |
| 47731 | Front disc brake piston | 47731-20070 · 47731-32010 |
| 47731A | retaining ring (for front disc brake piston) | 90522-61001 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-32010 |
| 47750 | Left disc brake cylinder assembly | 47750-12170 · 47750-17030 · 47750-32010 · 47750-32022 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-32010 |
| 47771 | No. 1 pad wear indicator plate | 47771-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-32010 |
| 47781 | Right front disc brake dust cover | 47781-32010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06196 · 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-32010 |
