Toyota CAMRY 动力转向配管 — Figure 4503

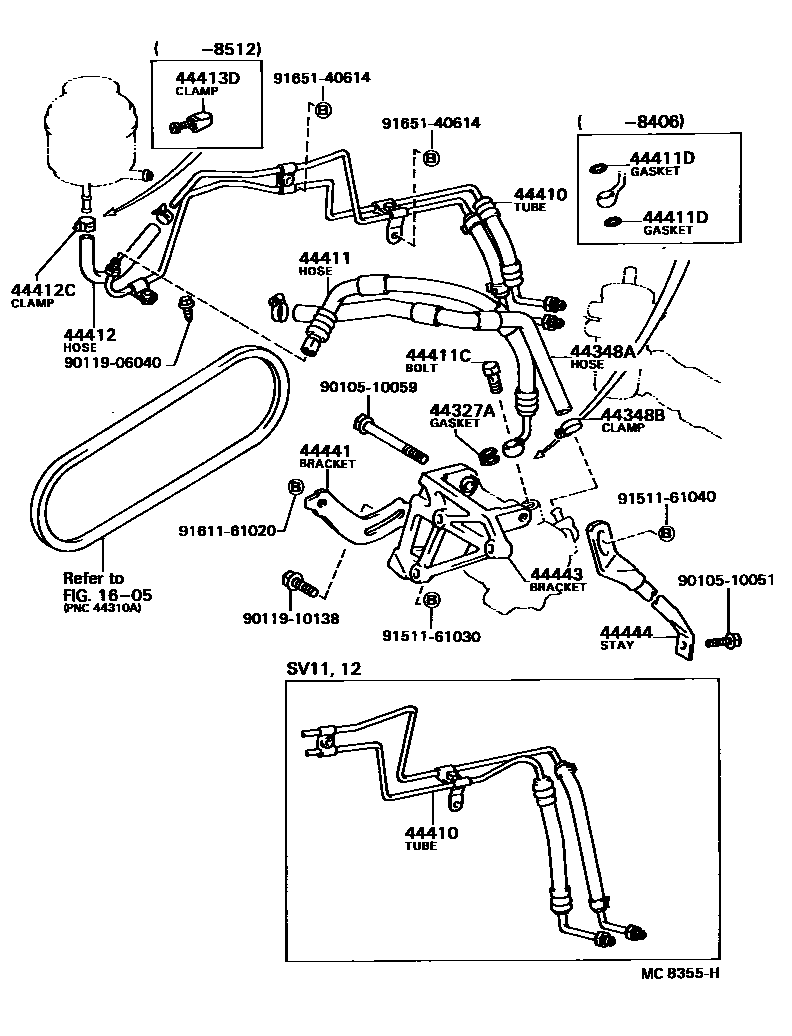

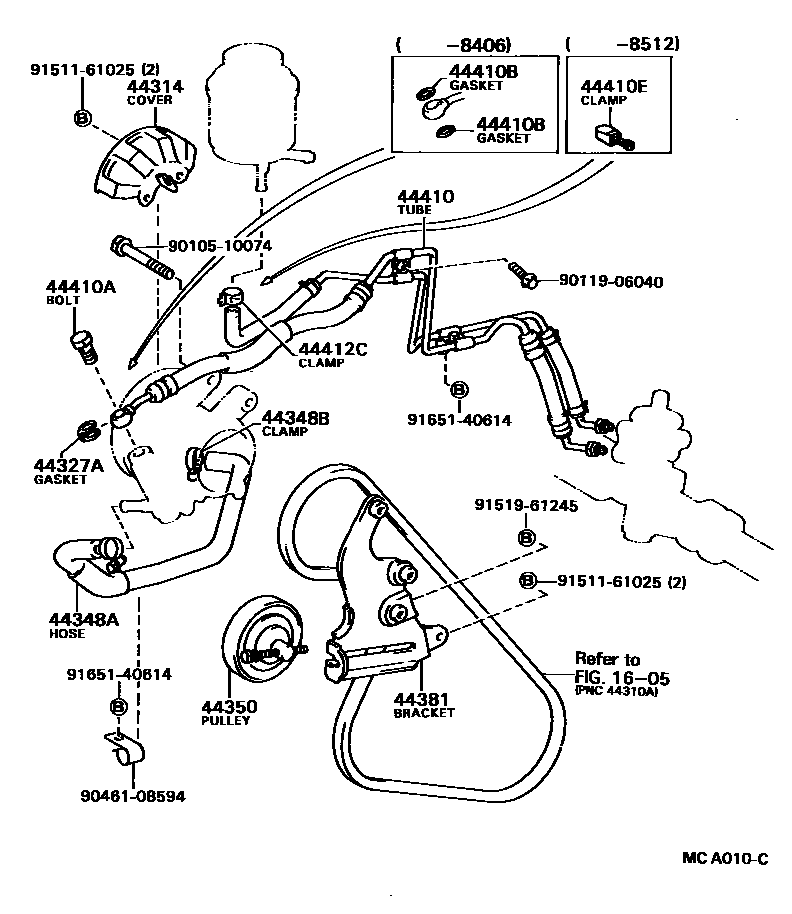

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-12010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-32010 · 44348-32020 · 44348-32030 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 |
| 44350 | Power steering idler assembly | 44350-12050 |
| 44381 | Power steering idler bracket | 44381-12020 |
| 44410 | Pressure supply pipe assembly | 44410-32010 · 44410-32020 · 44410-32040 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16005 · 90401-16008 |
| 44410B | Gasket (for pressure supply pipe) | 90430-16242 |
| 44410E | Clamp (for pressure supply tube) | 90460-01001 |
| 44411 | pressure supply hose | 44411-32010 · 44411-32020 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16004 · 90401-16005 · 90401-16008 |
| 44411D | Gasket (for pressure supply hose) | 90430-16242 |
| 44412 | Oil return hose | 44412-32010 |
| 44412C | Clamp (for oil return hose) | 90467-16008 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-32010 |
| 44444 | Pump back stay | 44444-32010 |
