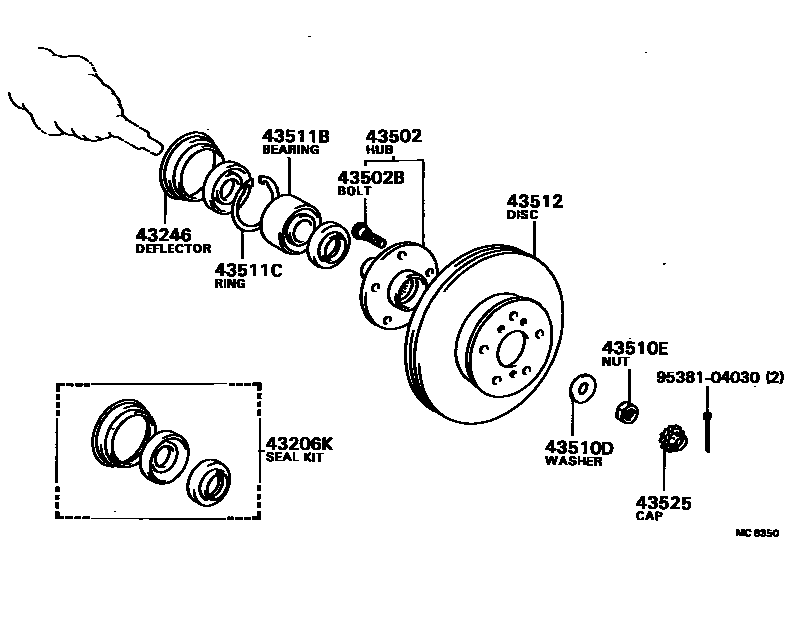

Toyota CAMRY Front Axle Hub — Figure 4303
Toyota CAMRY EPC diagram 4303, Front Axle Hub, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43206K | Front axle oil seal assembly | 04422-32010 |
| 43246 | No. 1 front wheel bearing dust cover | 43246-32011 |
| 43502 | Front axle hub sub-assembly | 43502-20040 · 43502-32010 |
| 43502B | Hub bolts (for front axle) | 90942-02047 |
| 43510D | Jaw washer (for steering knuckle washer) | 90201-20006 · 90201-20012 |
| 43510E | Nut (for steering knuckle) | 90170-19001 |
| 43511B | Bearings (for front axle hub) | 90369-38003 |
| 43511C | Hole snap ring (for front axle hub) | 90521-79002 |
| 43512 | front brake disc | 43512-32010 · 43512-32030 · 43512-32040 · 43512-32110 |
| 43525 | Front wheel adjustment lock cover | 43525-16010 |
