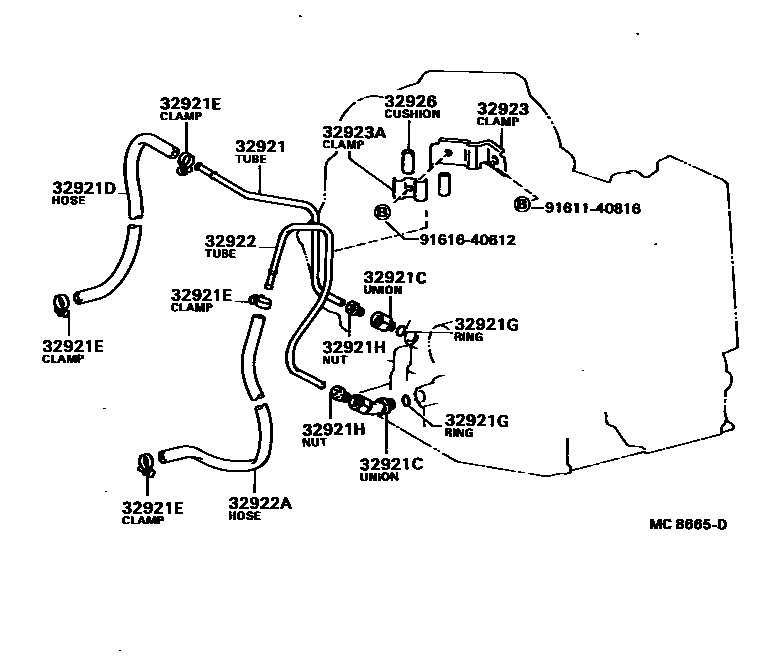

Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514
Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-32011 · 32921-32020 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90407-14004 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-32010 · 90445-14099 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-14085 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921H | Oil pipe nut (for transmission oil cooler pipe) | 90402-14004 · 96310-11400 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-32010 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-14052 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-32010 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
