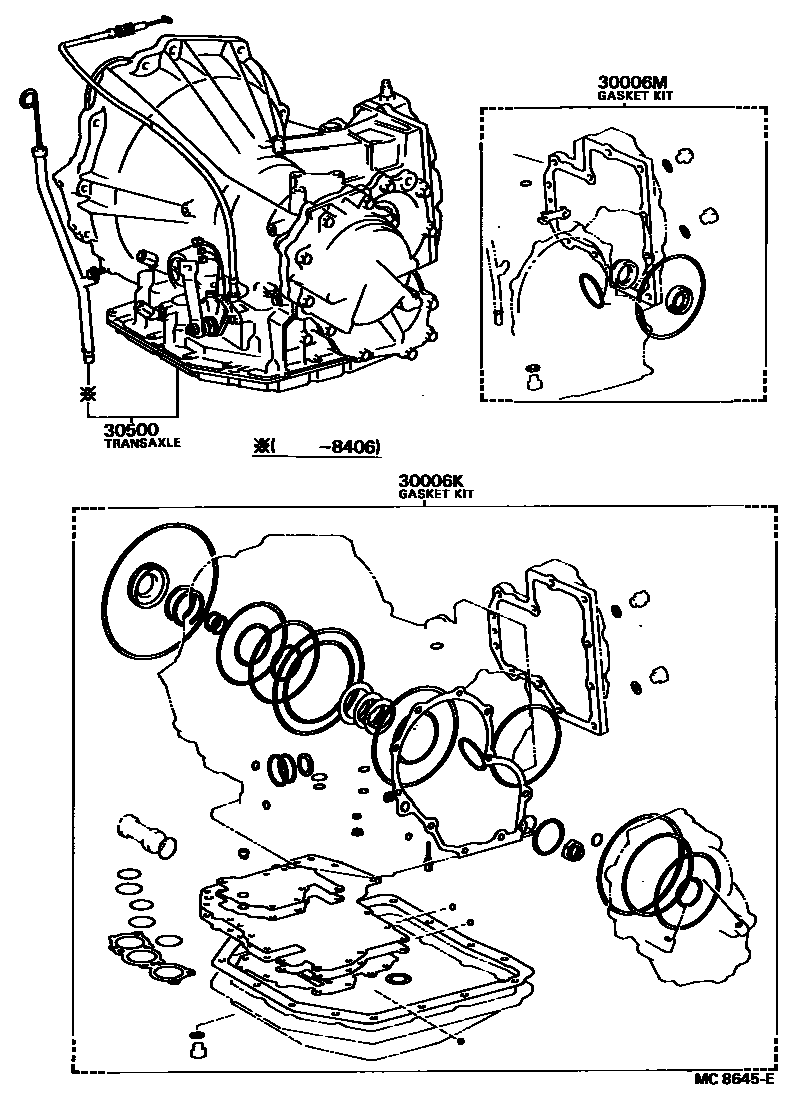

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30006K | Transaxle overhaul gasket assembly (ATM) | 04351-32010 · 04351-32011 · 04351-32020 · 04351-32021 · 04351-32030 |
| 30006M | Differential case gasket assembly (ATM) | 04412-32010 |
| 30500 | Automatic transmission axle assembly | 30500-32010 · 30500-32011 · 30500-32020 · 30500-32021 · 30500-32080 · 30500-32081 · 30500-32110 · 30500-32120 |
