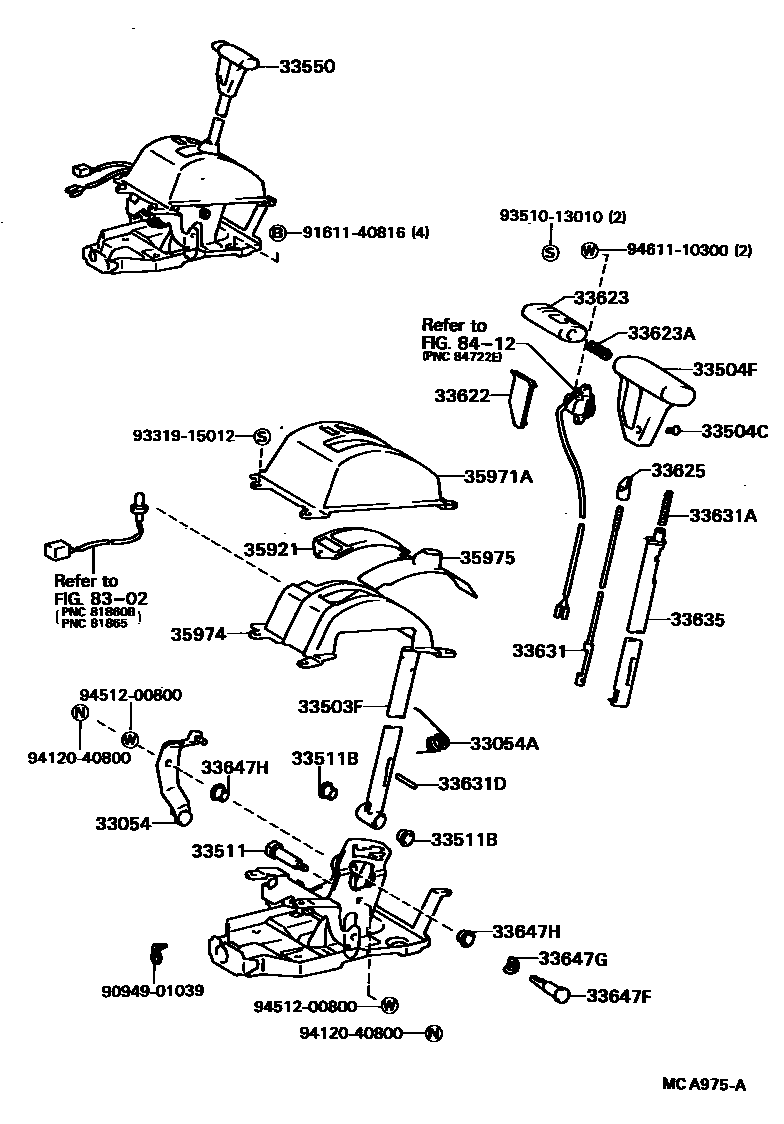

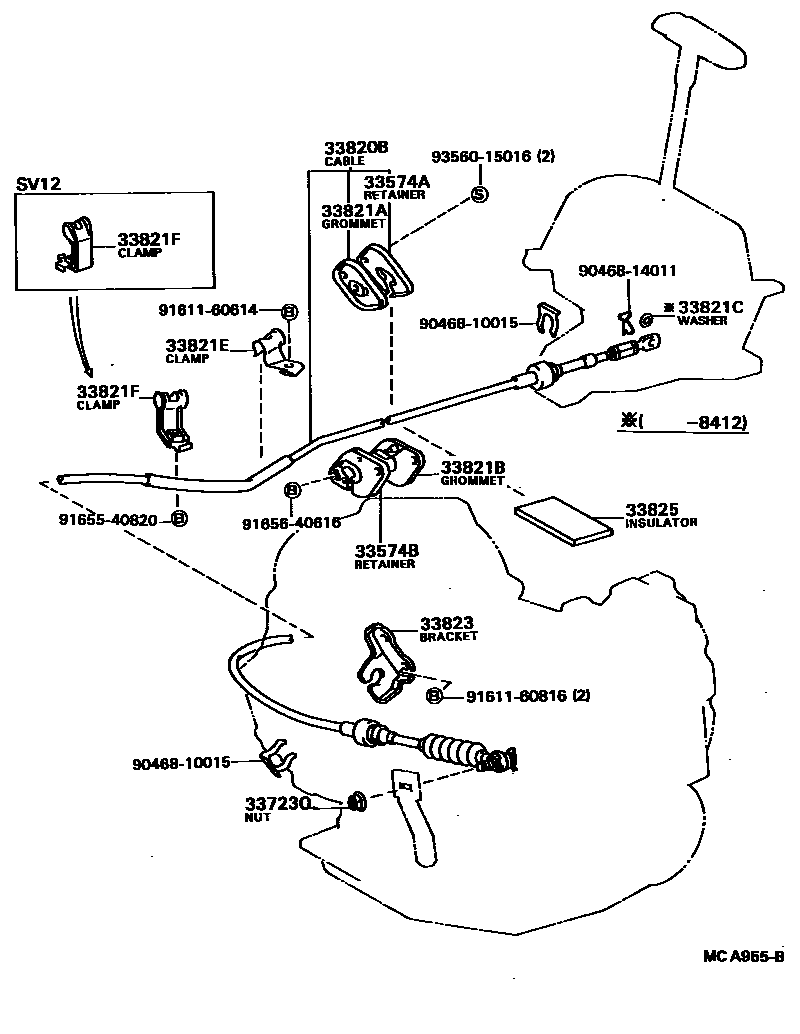

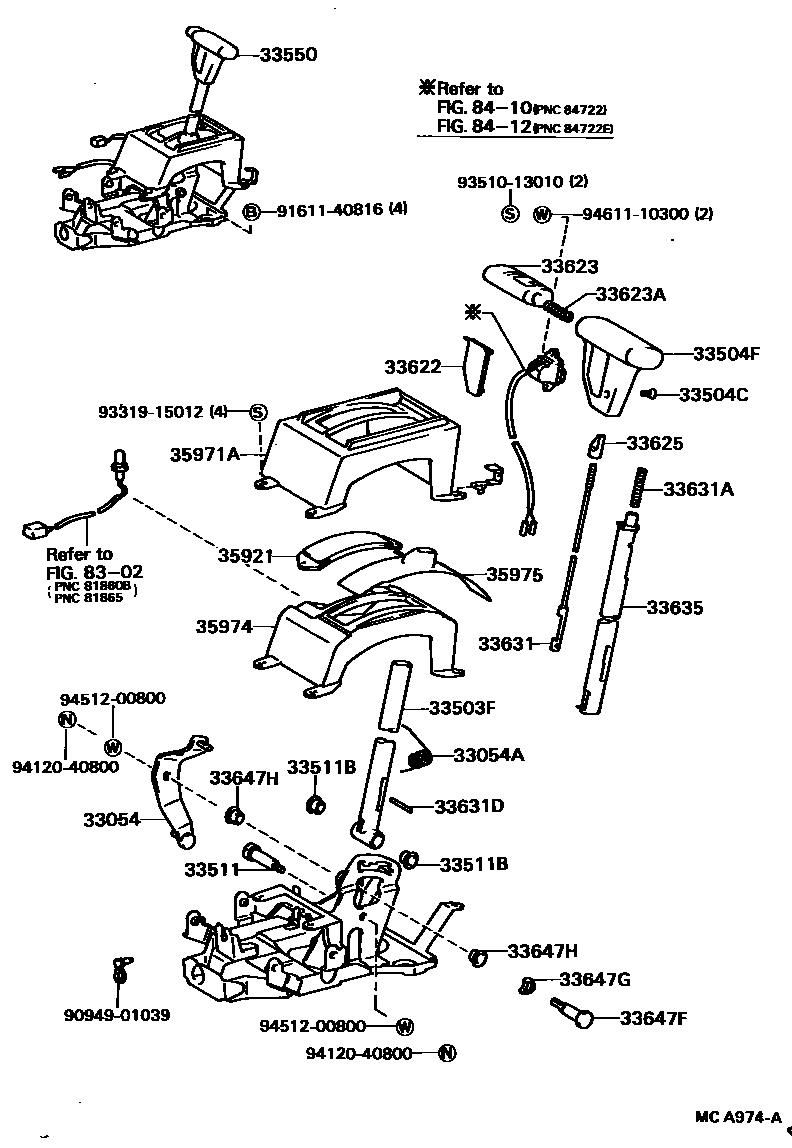

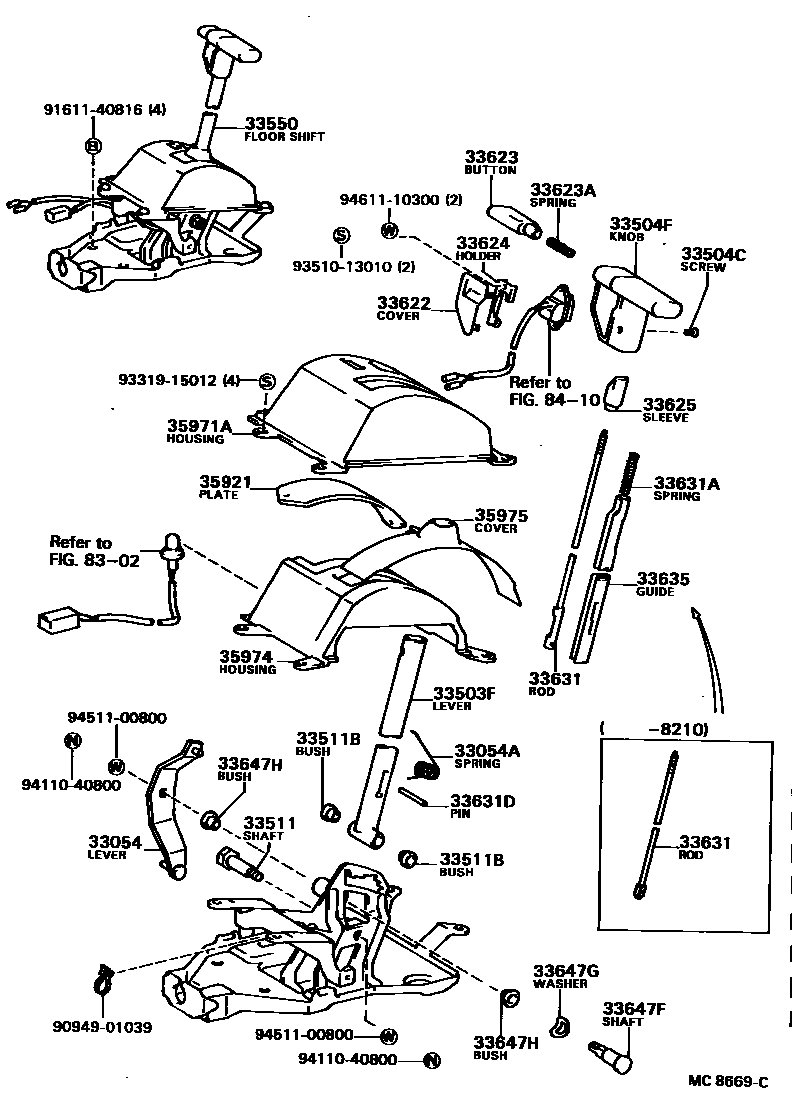

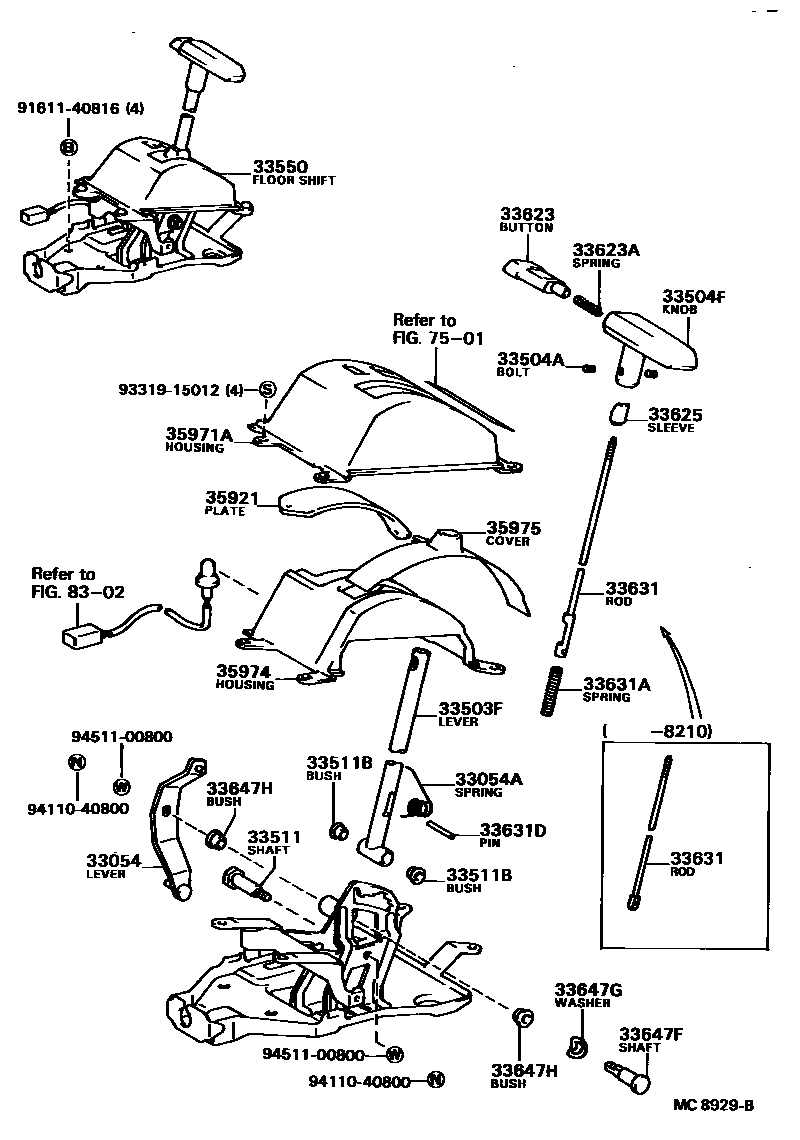

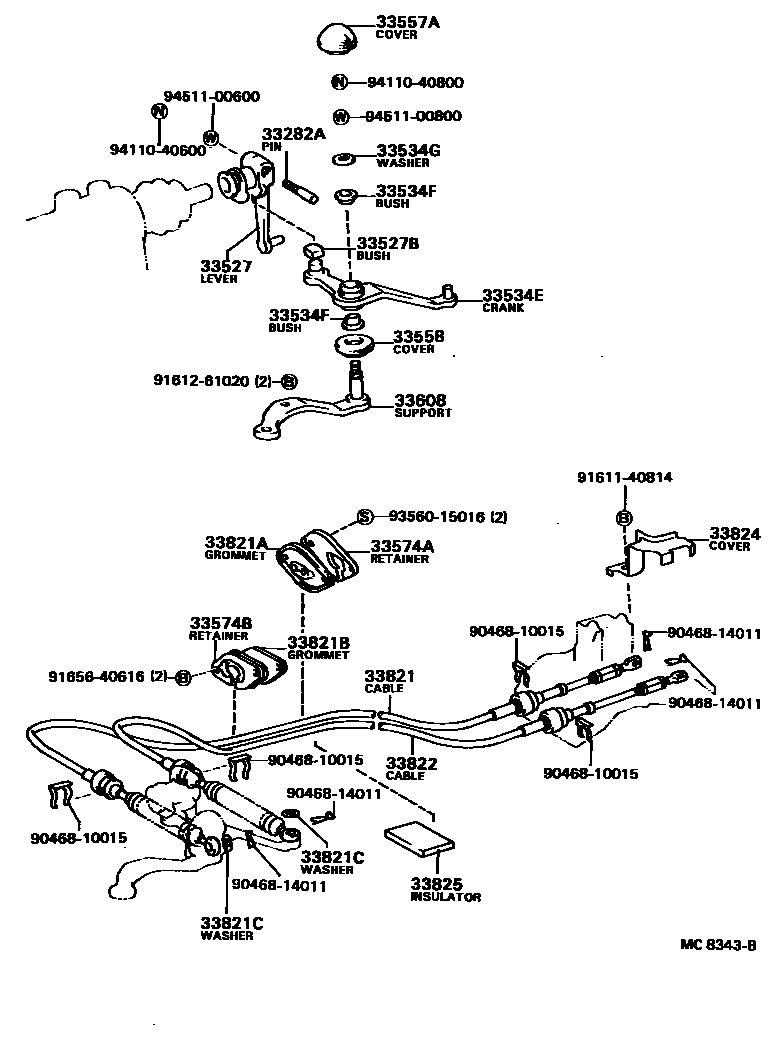

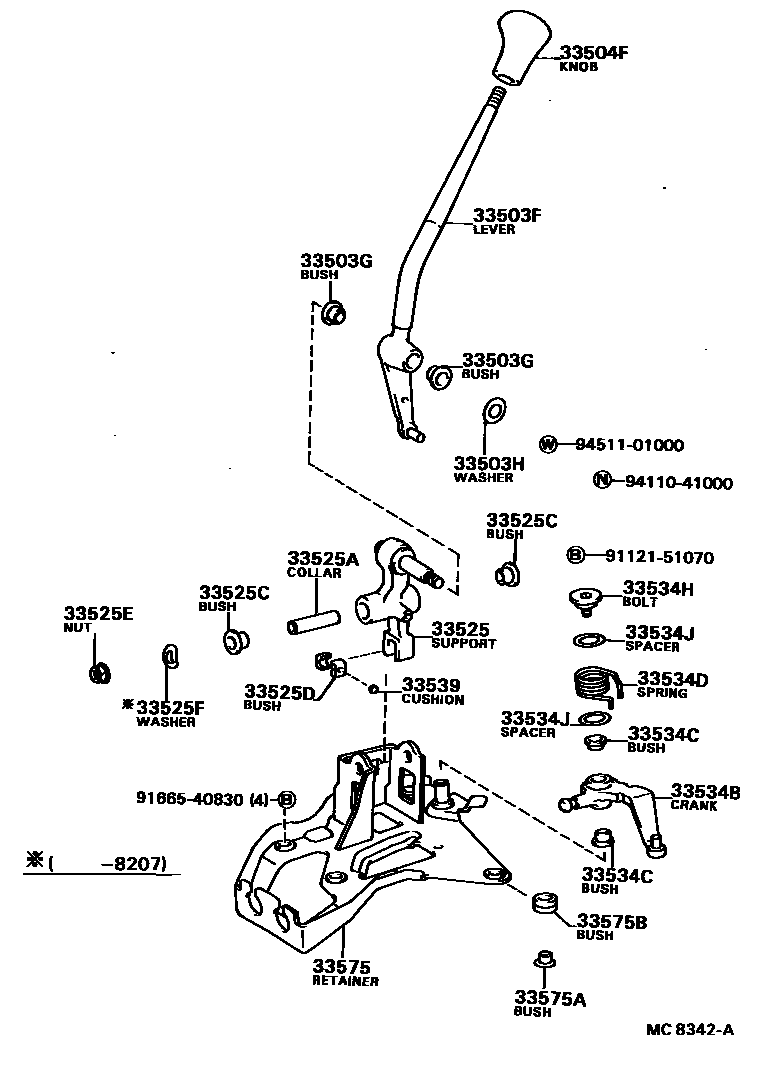

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 7 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-32020 · 33054-32021 · 33054-32040 · 33054-32050 |
| 33054A | Torsion spring (for shift lever No. 2) | 90508-18044 |
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12280 · 33503-32010 · 33503-32020 · 33503-32050 |
| 33503G | Bushing (for shift lever) | 90386-14005 · 90389-14011 |
| 33503H | Flat washer (for shift lever sub-assembly) | 90201-10180 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 |
| 33504C | Screw (for securing shift lever knob) | 90149-40004 |
| 33511 | Control shaft (for floor shifting) | 33511-20240 |
| 33511B | Bushing (for control shaft) | 90385-11003 |
| 33525 | shift lever bracket | 33525-32010 |
| 33525A | Collar (for shift lever bracket) | 90387-10047 |
| 33525C | Bushing No. 1 (for shift lever bracket) | 90386-14005 · 90389-14011 |
| 33525D | Bushing No. 2 (for shift lever bracket) | 90389-10007 |
| 33525E | Nut (for shift lever bracket) | 90179-10043 |
| 33525F | Wave washer (for shift lever bracket) | 90206-14083 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 90389-10009 |
| 33534B | No. 1 gear selection right-angle lever | 33534-32010 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12013 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-26044 |
| 33534E | No. 2 gear selection right-angle lever | 33534-32020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534H | Bolt (for No. 1 gear selector right-angle lever) | 90109-08057 |
| 33534J | Spacer (for No. 1 gear selector right-angle lever) | 90560-23008 |
| 33539 | Gear shifter anti-vibration cushion | 33539-32010 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-32010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-32010 |
| 33574B | No. 2 shift cable seal | 33574-32020 |
| 33575 | Shift lever stop (for floor shift) | 33575-32010 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08031 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-10010 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-32010 |
| 33623 | Shift lever handle button | 33623-22060 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33624 | handle cover fixing | 33624-32010 |
| 33625 | Shift lever handle sleeve | 33625-22020 · 33625-32010 |
| 33631 | Locking lever | 33631-32010 · 33631-32011 · 33631-32020 · 33631-32021 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-08017 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 |
| 33635 | Cable guide (for gear selector) | 33635-12020 · 33635-32010 · 33635-32011 |
| 33647F | Control linkage shaft (for floor shift) | 33647-32010 |
| 33647G | Wave washer (for controlling connecting rod shaft) | 90206-10003 |
| 33647H | Bushing (used to control connecting rod shaft) | 90386-10012 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-32030 · 33820-32070 · 33820-32110 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-32010 · 33821-32090 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01177 · 90480-01212 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01154 · 90480-01155 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01022 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01023 · 90949-01139 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-32010 · 33822-32050 |
| 33823 | No. 1 transmission control cable bracket | 33823-32010 |
| 33824 | Transmission control cable cover | 33824-32010 |
| 33825 | Transmission control cable insulation pad | 33825-32010 |
| 35921 | control position indicator board | 35921-32010 · 35921-32030 · 35921-32050 |
| 35974 | Position indicator light lower shell | 35974-32010 · 35974-32011 · 35974-32030 |
