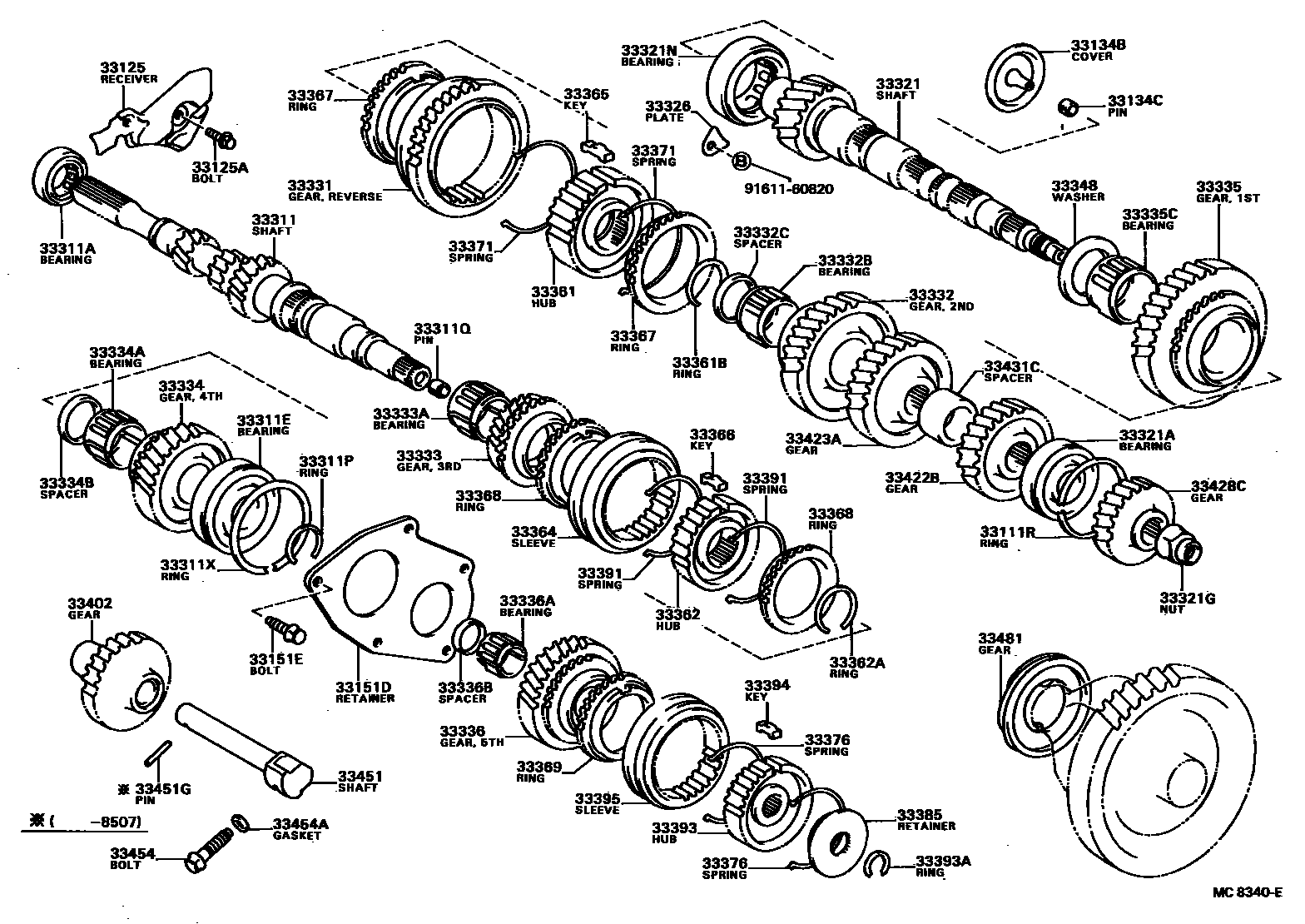

Toyota CAMRY 变速器齿轮(MTM) — Figure 3305
Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111R | Hole snap ring (for output shaft rear bearing) | 90521-66004 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-32010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60616 |
| 33134B | Output shaft cover (MTM) | 33134-32011 |
| 33134C | Slotted spring pin (for output shaft) | 90254-10001 |
| 33151D | Rear bearing retainer (MTM) | 33151-32010 · 33151-32011 |
| 33151E | Bolt (for rear bearing retainer) | 90105-08045 |
| 33311 | input shaft | 33311-20090 · 33311-32012 · 33311-32013 · 33311-32020 · 33311-32021 |
| 33311A | Bearing (for front input shaft) | 90365-30017 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-29002 · 90363-29004 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-27018 · 90520-27019 · 90520-27020 · 90520-27021 · 90520-27022 |
| 33311Q | Slotted spring pin (for input shaft) | 90254-10002 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90521-76001 |
| 33321 | output shaft | 33321-32021 · 33321-32030 |
| 33321A | Bearings (for rear output shaft) | 90363-25020 · 90363-25037 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18003 |
| 33321N | Bearing (for front output shaft) | 90365-32006 · 90365-32012 |
| 33326 | Bearing locking plate | 33326-32010 |
| 33331 | reverse gear | 33331-32010 |
| 33332 | Second gear | 33033-32010 · 33033-32020 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32011 |
| 33332C | Spacer (for second gear bearing) | 90560-32006 |
| 33333 | Third gear | 33034-32011 · 33034-32020 |
| 33333A | Needle roller bearing (for third gear) | 90364-33001 |
| 33334 | fourth gear | 33035-32010 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-32013 |
| 33334B | Spacer (for fourth gear bearing) | 90560-32007 |
| 33335 | first gear | 33032-20050 · 33032-32010 |
| 33335C | Needle roller bearing (for first gear) | 90364-38004 |
| 33336 | fifth gear | 33036-32010 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-27005 |
| 33336B | Spacer (for fifth gear bearing) | 90560-27004 |
| 33348 | First gear thrust washer | 33348-32010 |
| 33361 | No. 1 transmission clutch hub | 33361-32010 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29012 · 90520-29013 · 90520-29014 · 90520-29015 · 90520-29016 · 90520-29017 |
| 33362 | No. 2 transmission clutch hub | 33362-32010 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 |
| 33364 | No. 2 transmission hub sleeve | 33364-32010 · 33364-32011 |
| 33365 | No. 1 synchromesh shift key | 33365-32010 |
| 33366 | No. 2 synchromesh shift key | 33366-32010 |
| 33367 | Synchronizer lock ring No. 1 | 33368-32010 |
| 33368 | Synchronizer lock ring No. 2 | 33367-32010 |
| 33369 | No. 3 synchronizer lock ring | 33367-32010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-20010 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33371-32010 · 33371-32011 |
| 33385 | shift key block | 33385-32010 |
| 33391 | No. 2 synchromesh shift key spring | 33371-32010 · 33371-32011 |
| 33393 | No. 3 transmission clutch hub | 33393-32010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-20022 · 90520-20023 · 90520-20024 · 90520-20025 · 90520-20026 · 90520-20027 · 90520-20028 · 90520-20029 · 90520-20030 · 90520-20031 · 90520-20032 · 90520-20033 · 90520-20034 · 90520-20035 · 90520-20036 |
| 33394 | No. 3 synchromesh shift key | 33366-32010 |
| 33395 | No. 3 transmission hub sleeve | 33395-32010 |
| 33402 | Reverse idler gear sub-assembly | 33402-32010 |
| 33422B | Fourth gear driven gear | 33422-32010 · 33422-32011 |
| 33423A | Third gear driven gear | 33423-32010 · 33423-32020 |
| 33428C | fifth speed driven gear | 33428-32010 |
| 33431C | Output gear spacer | 33431-32010 |
| 33451 | Reverse gear idler shaft | 33451-32010 |
| 33451G | Slotted spring pin (for reverse idler shaft) | 90254-05001 |
| 33454 | Shaft fixing bolt | 90105-08041 |
| 33454A | Pad (for shaft fixing bolt) | 90430-08006 |
