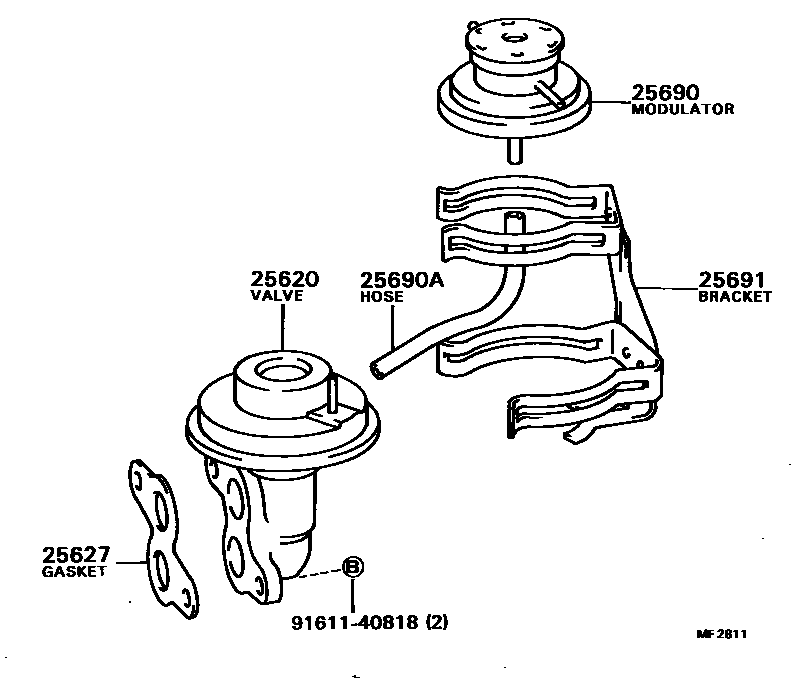

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25620 | EGR valve assembly | 25620-63030 · 25620-63040 |
| 25627 | EGR valve gasket | 25627-63020 |
| 25690 | EGR vacuum regulator assembly | 25690-63010 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11017 |
| 25691 | EGR vacuum regulator bracket | 25691-63020 |
