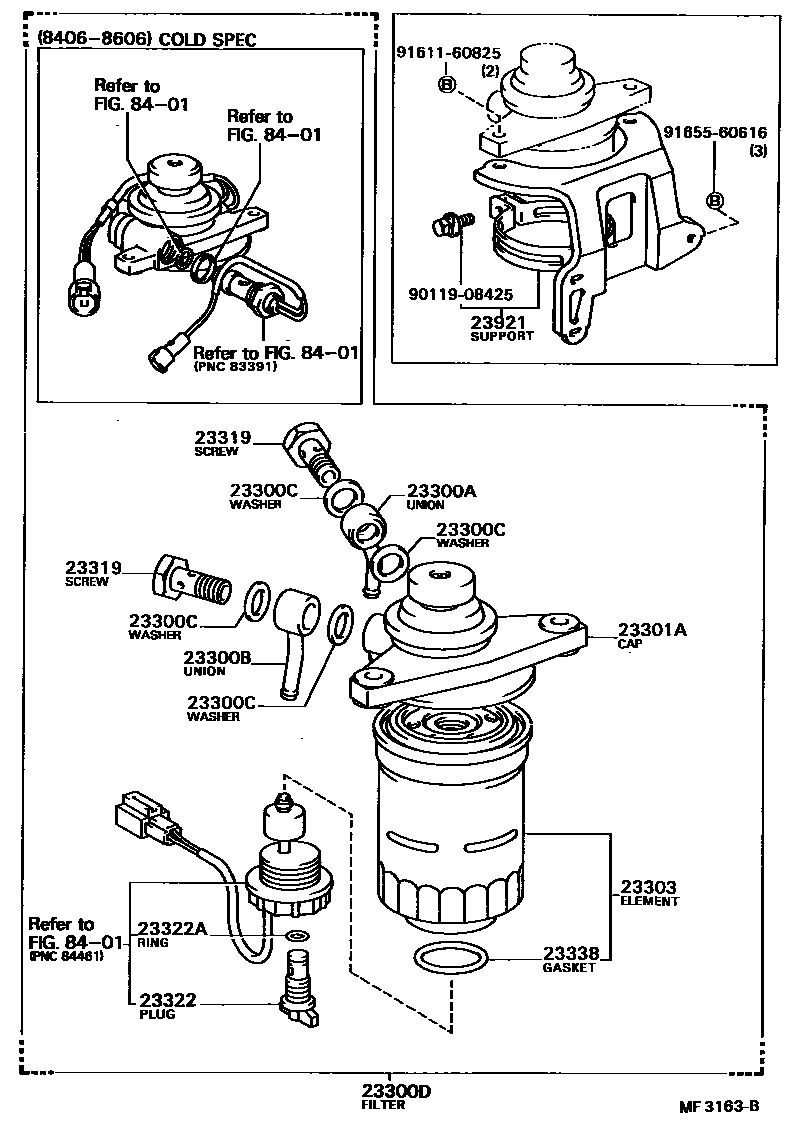

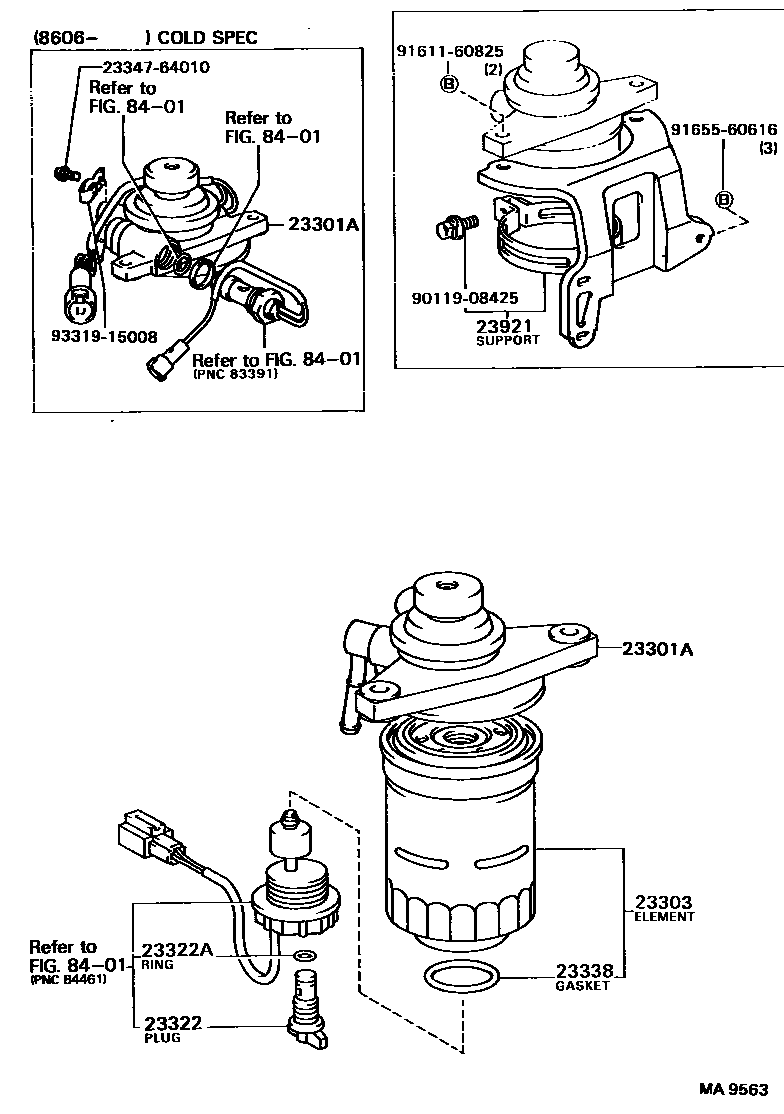

Toyota CAMRY fuel filter — Figure 2302
Toyota CAMRY EPC diagram 2302, fuel filter, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-15010 |
| 23300A | Oil pipe joint (for fuel filter inlet) | 23323-64010 |
| 23300B | Oil pipe joint (for fuel filter outlet) | 23323-64010 |
| 23300C | Gasket (for fuel pipe joint) | 22447-47030 |
| 23300D | Fuel filter assembly (for diesel engine) | 23300-64080 · 23300-64090 |
| 23301A | Fuel filter cover assembly | 23301-64020 · 23301-64030 · 23301-64090 · 23301-64100 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 |
| 23319 | Fuel pipe hollow screw | 90099-18011 |
| 23322 | Drain plug (for fuel filter) | 23322-64020 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23921 | Fuel filter support | 23921-64090 · 90929-01010 |
