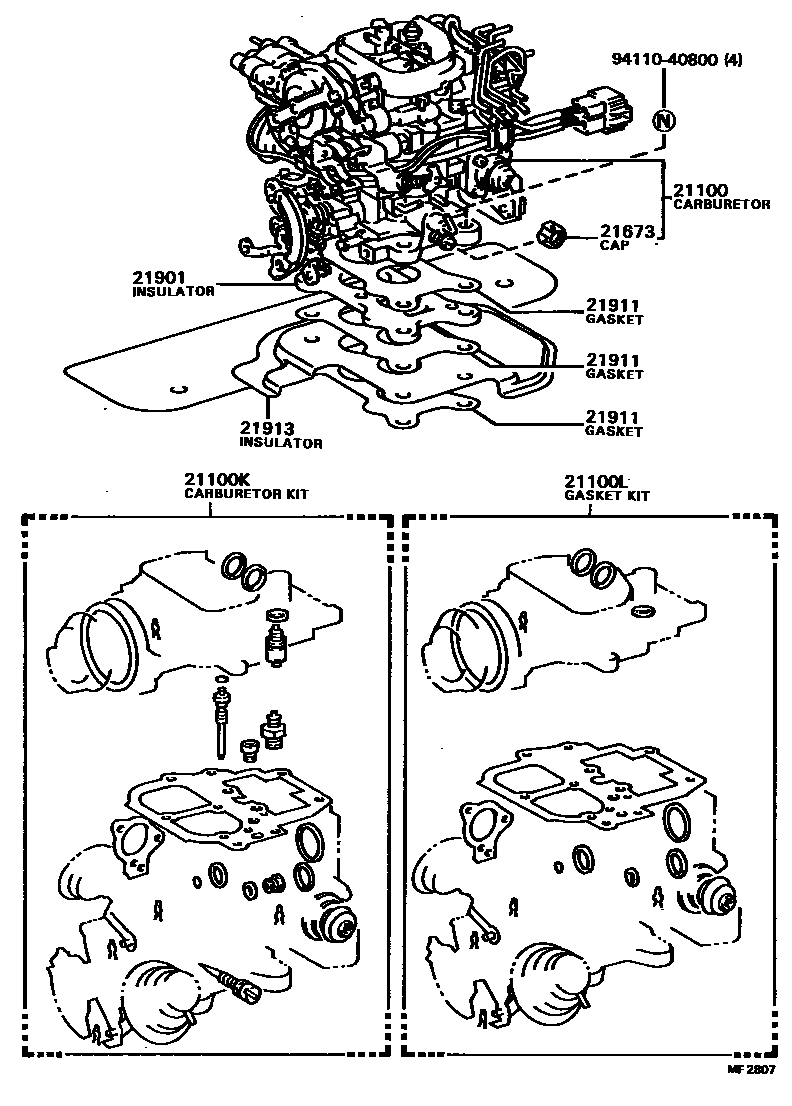

Toyota CAMRY carburetor assembly — Figure 2102
Toyota CAMRY EPC diagram 2102, carburetor assembly, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21100 | carburetor assembly | 21100-63050 · 21100-63051 · 21100-63060 · 21100-63061 · 21100-63120 · 21100-63130 |
| 21100K | carburetor components | 04211-63020 · 04211-63021 · 04211-63022 |
| 21100L | carburetor gasket assembly | 04212-63010 |
| 21673 | Idle speed limit cap | 21673-13280 · 21673-38020 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-63020 |
| 21911 | carburetor gasket | 21911-63010 |
| 21913 | No. 2 carburetor insulation pad | 21902-63020 · 21902-63021 |
