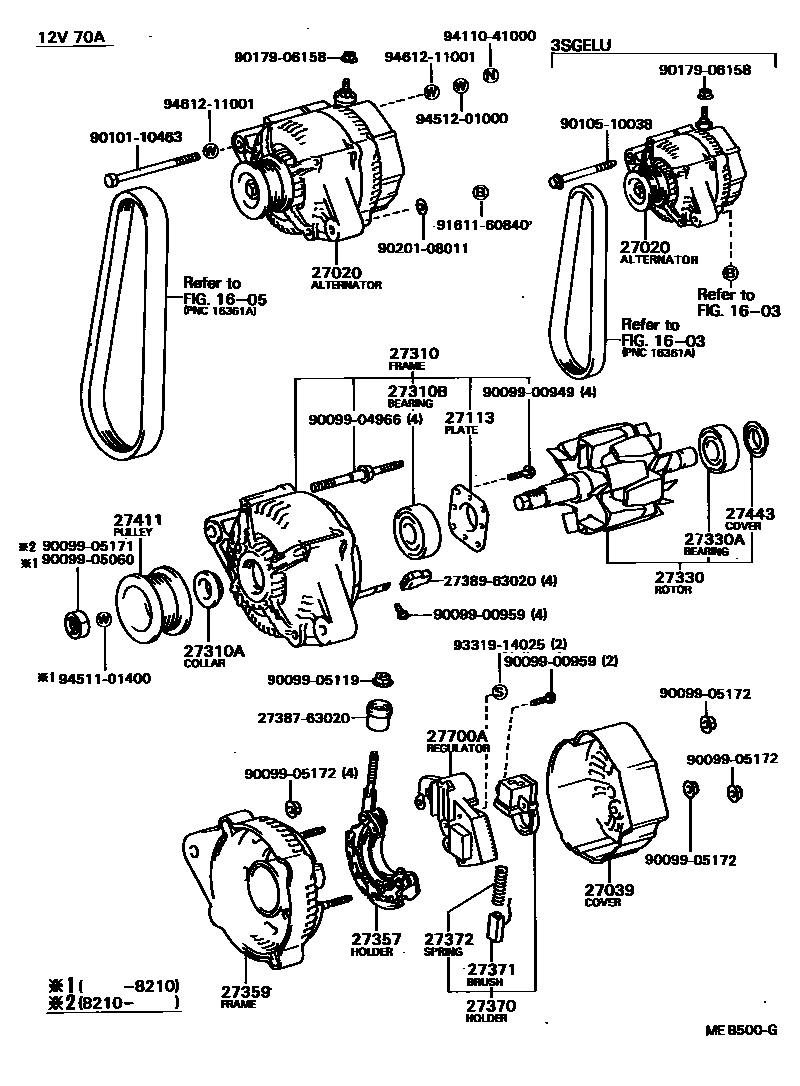

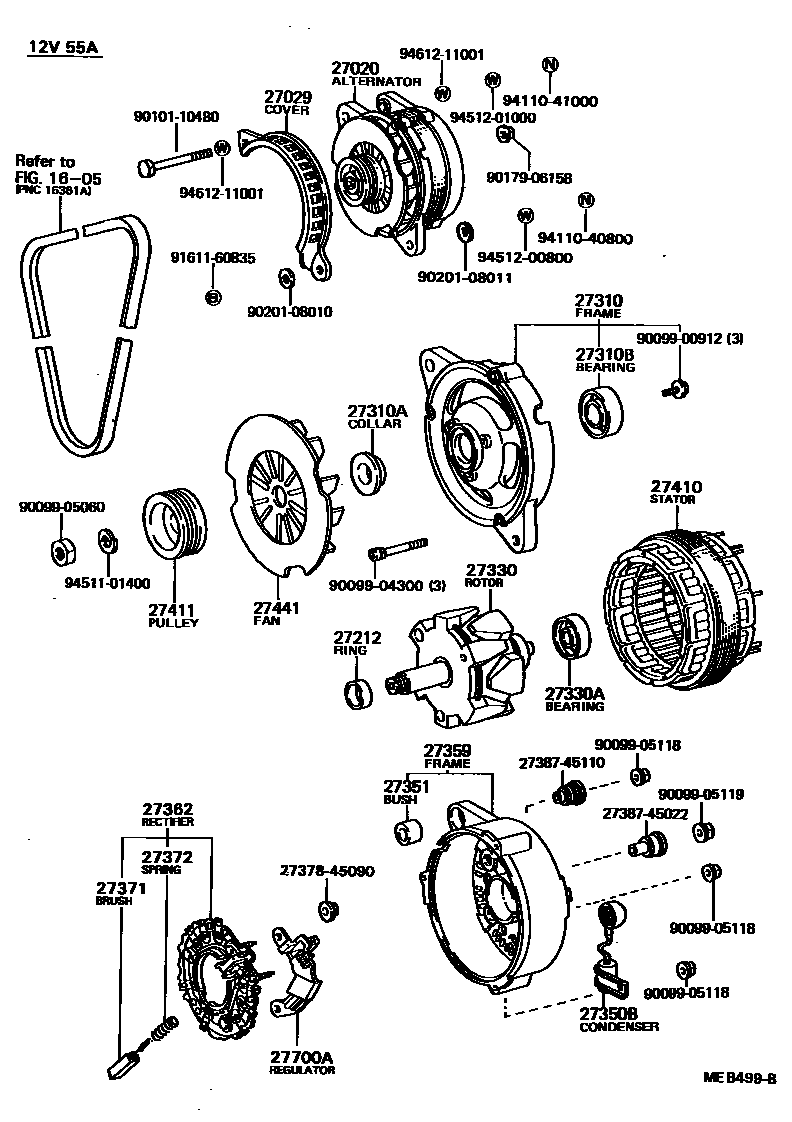

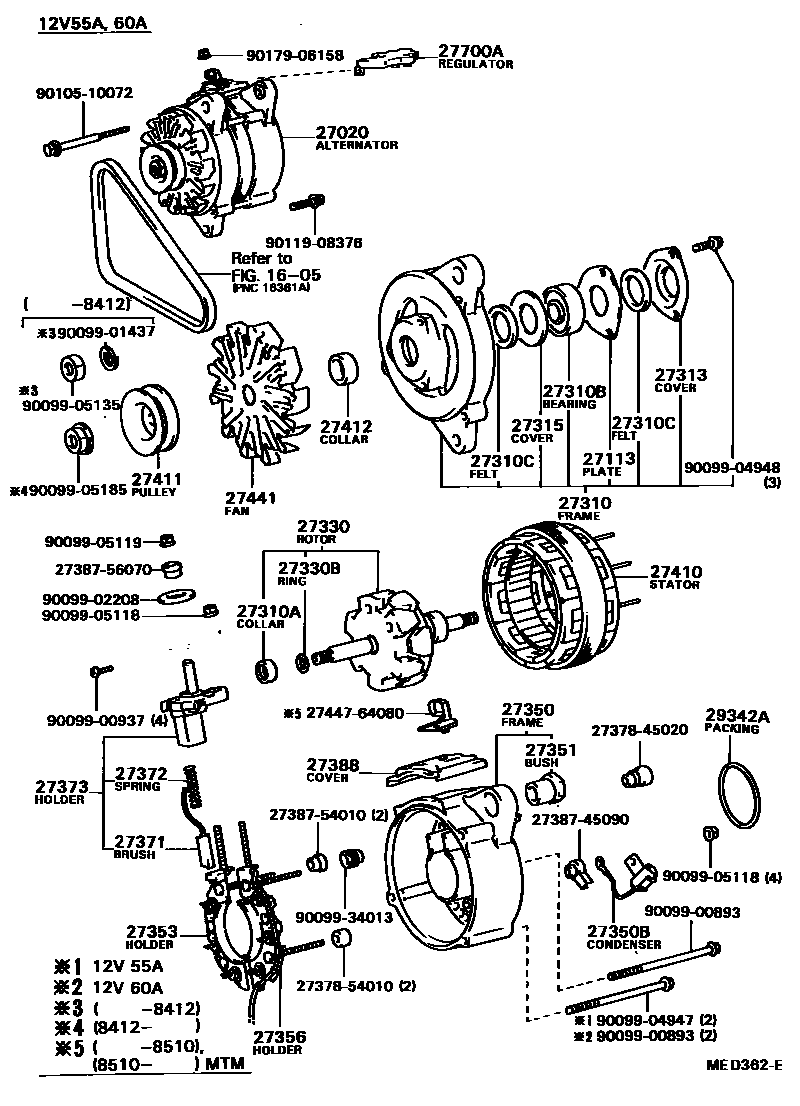

Toyota CAMRY Alternator — Figure 1903
Toyota CAMRY EPC diagram 1903, Alternator, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-64080 · 27020-64100 · 27020-64160 · 27060-63010 · 27060-63020 · 27060-63080 |
| 27029 | generator cover | 27029-63010 |
| 27039 | Alternator Rear End Cover | 27039-63020 · 27039-63021 · 27039-72010 |
| 27113 | Generator bearing block | 27312-57060 · 27312-63020 · 27312-72100 |
| 27212 | Spacer ring (for generator rotor) | 27412-45070 |
| 27310 | Alternator Drive End Frame Assembly | 27310-63020 · 27310-63021 · 27310-63030 · 27310-64060 |
| 27310A | Collar or nut (for generator drive end cover) | 27333-57060 · 27412-63020 · 27412-63030 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10137 · 90099-10141 · 90099-10142 · 90099-10152 · 90099-10159 |
| 27310C | Felt pad (for generator drive end cover) | 90099-02209 |
| 27313 | Generator No. 2 felt pad inner cover | 27313-57060 |
| 27315 | Generator No. 1 felt pad inner cover | 27315-57060 |
| 27330 | Alternator Rotor Assembly | 27330-15070 · 27330-56190 · 27330-63020 · 27330-63021 · 27330-64030 · 27330-72100 |
| 27330A | Bearings (for generator rotor) | 90099-10116 · 90099-10140 |
| 27330B | Snap ring (for generator rotor) | 90099-07103 |
| 27350 | Rectifier end frame assembly | 27350-64060 |
| 27350B | generator capacitor | 90099-52065 · 90099-52066 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 · 27351-64060 |
| 27353 | Generator positive rectifier frame | 27353-54180 · 27353-57070 |
| 27356 | Generator negative rectifier frame | 27356-64080 · 27356-64100 |
| 27357 | Generator rectifier frame | 27357-63020 |
| 27359 | Generator rectifier end frame | 27359-63020 · 27359-63021 · 27359-63030 · 27359-63081 |
| 27362 | Rectifier assembly with brushes | 27362-63030 |
| 27370 | Alternator Brush Holder Assembly | 27370-63020 · 27370-63021 · 27370-72100 |
| 27371 | Generator brushes | 27371-31011 · 27371-56070 · 27371-63020 |
| 27372 | Generator brush spring | 27372-31011 · 27372-56070 · 27372-63020 · 27372-72100 |
| 27373 | Generator A brush holder | 27373-57070 |
| 27388 | Generator brush cover | 27388-64080 |
| 27410 | Generator stator assembly | 27410-41080 · 27410-54180 · 27410-57070 |
| 27411 | Alternator Pulley | 27411-63020 · 27411-63021 · 27411-63030 · 27411-63080 · 27411-63081 · 27411-64060 · 27411-64160 |
| 27412 | Isolator collar (for generator pulley) | 27412-64060 |
| 27441 | generator fan | 27441-63030 · 27441-64060 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-57060 · 27700-63020 · 27700-63021 · 27700-63030 · 27700-64030 |
| 29342A | Vacuum pump seals | 90099-14055 |
