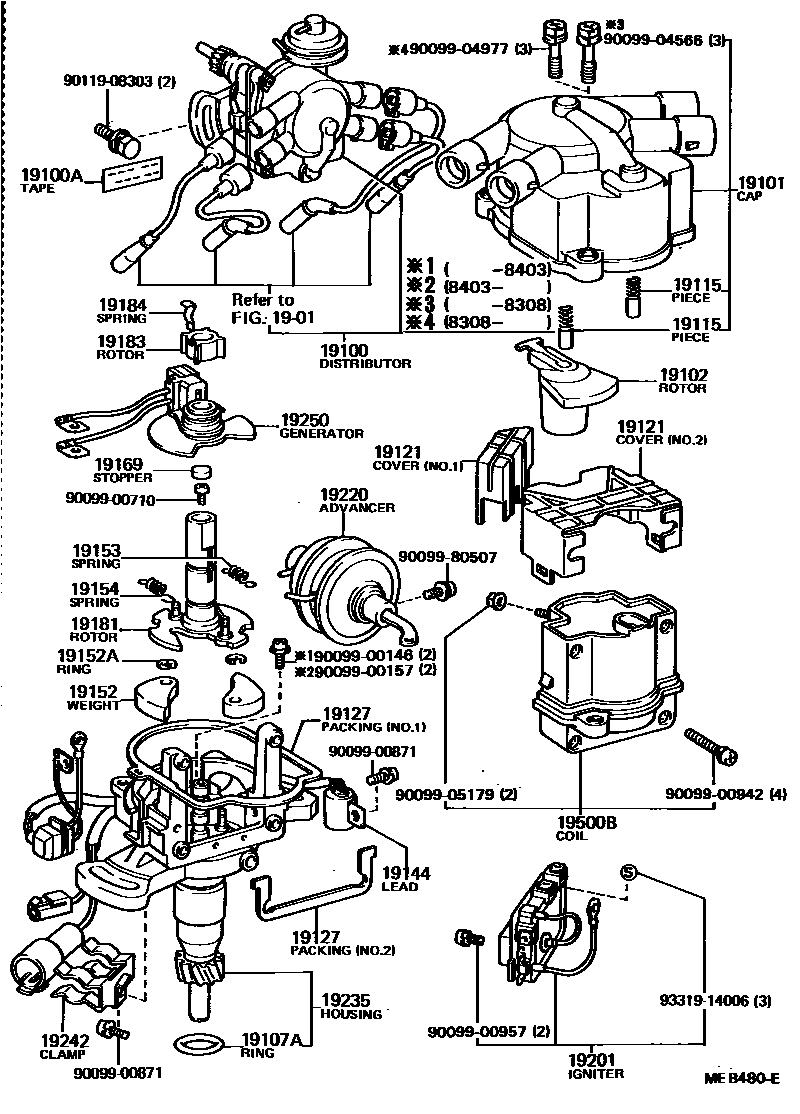

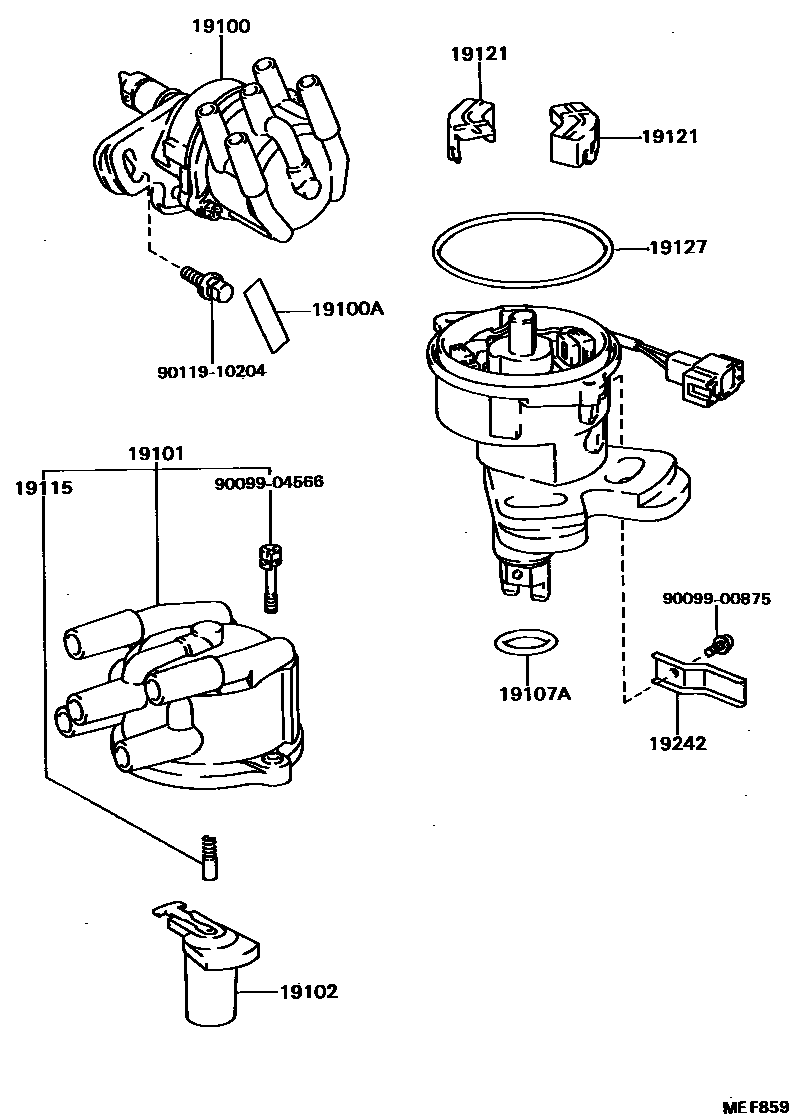

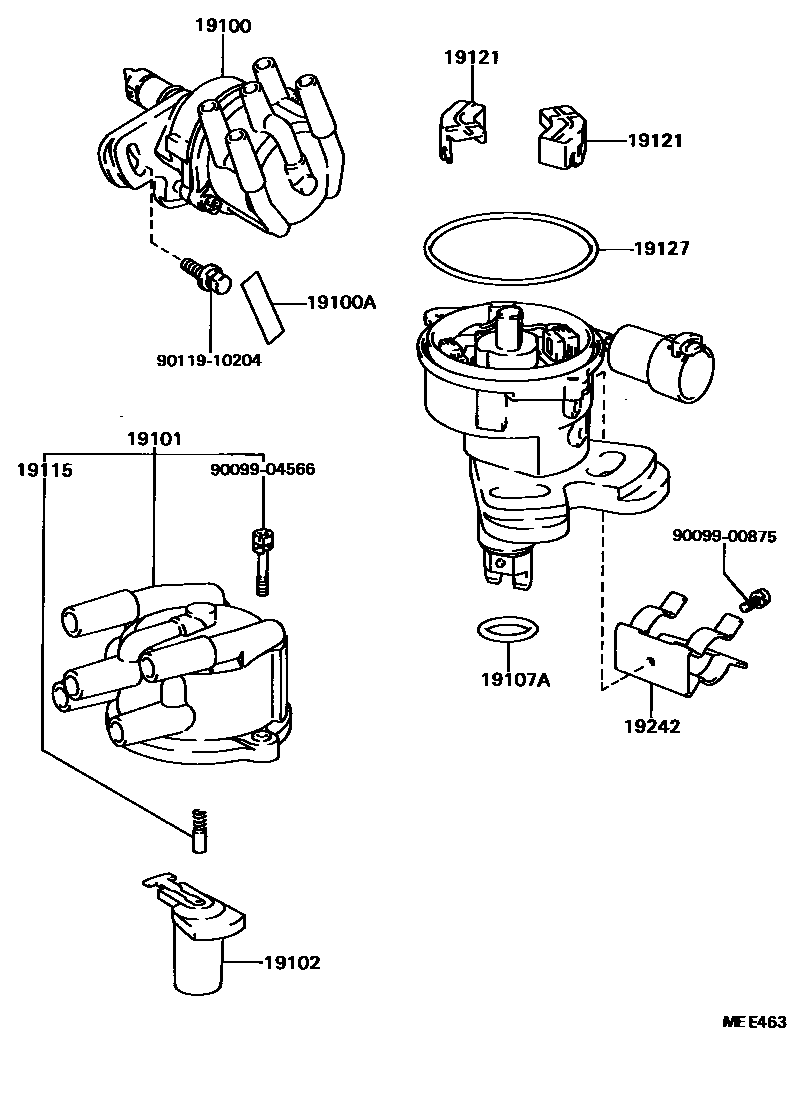

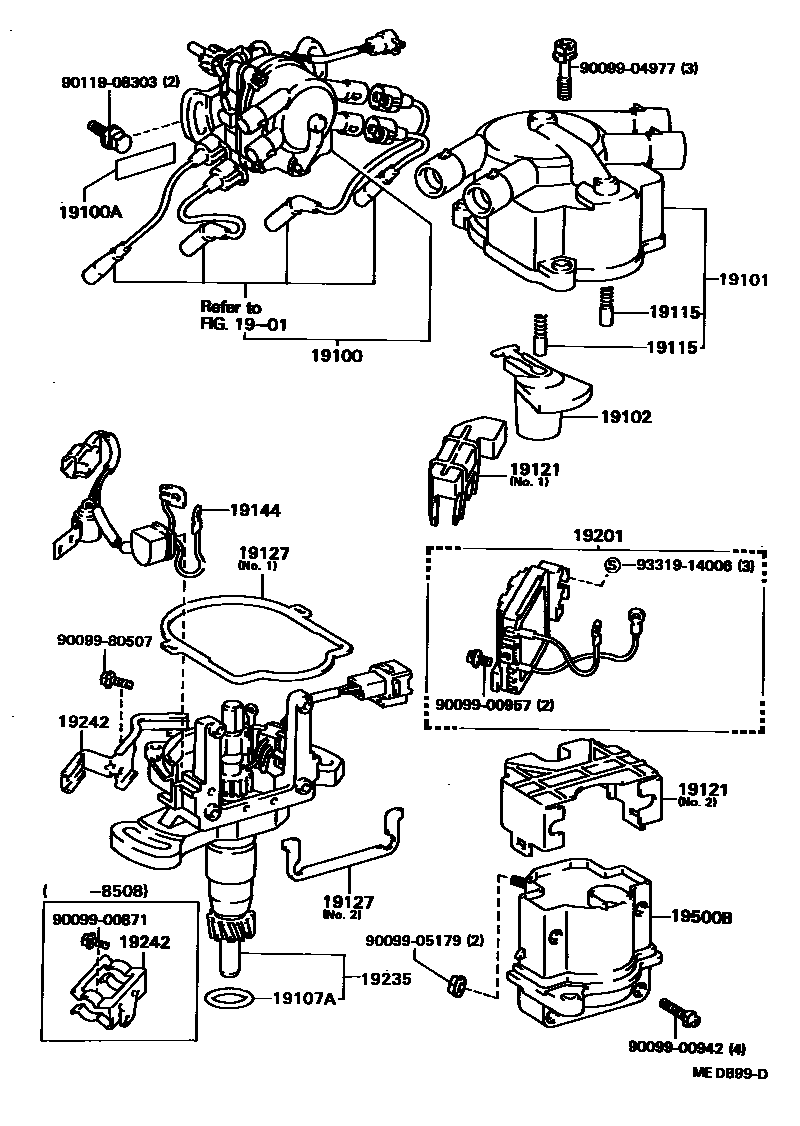

Toyota CAMRY 分电器 — Figure 1902
Toyota CAMRY EPC diagram 1902, 分电器, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-63020 · 19030-63021 · 19030-63030 · 19030-63060 · 19030-63070 · 19030-63100 · 19030-74010 · 19100-88360 · 19100-88361 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-63010 · 19101-63011 · 19101-88360 |
| 19102 | Distributor flame head sub-assembly | 19102-15021 · 19102-16040 · 19102-63010 |
| 19107A | Distributor housing O-ring | 90099-14020 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-16010 · 19121-16040 · 19121-63010 · 19121-63020 · 19121-63030 · 19121-63040 · 19121-63090 |
| 19127 | Dust seal | 19127-15021 · 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-63020 · 19144-63030 · 19144-63032 · 19144-63100 · 19144-74010 |
| 19152 | Speed regulator weight | 19152-35030 · 19152-44170 · 19152-63010 |
| 19152A | Snap ring (for governor weight) | 90099-07109 · 90099-07122 |
| 19153 | A governor spring | 19153-63020 · 19153-63021 · 19153-63023 · 19153-74010 |
| 19154 | B governor spring | 19153-74010 · 19154-63020 · 19154-63021 · 19154-63023 |
| 19169 | Cam grease stop | 19169-32010 |
| 19181 | Distributor signal distributor | 19181-63020 · 19181-63021 · 19181-63030 · 19181-74010 |
| 19183 | Signal splitter | 19183-63010 · 19183-63030 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-14210 · 89620-20190 · 89620-20250 · 89620-28030 · 89620-32010 · 89620-32020 |
| 19220 | Distributor vacuum advance device assembly | 19220-63020 · 19220-74010 |
| 19235 | Distributor housing | 19235-63010 · 19235-63011 · 19235-63013 · 19235-63060 · 19235-63100 · 19235-74010 · 19235-74011 · 19235-74013 |
| 19242 | Cable clip | 19242-63020 · 19242-74010 · 19242-88300 · 19242-88361 |
| 19250 | Signal generator assembly | 19251-63010 · 19251-63011 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 · 90919-02157 |
