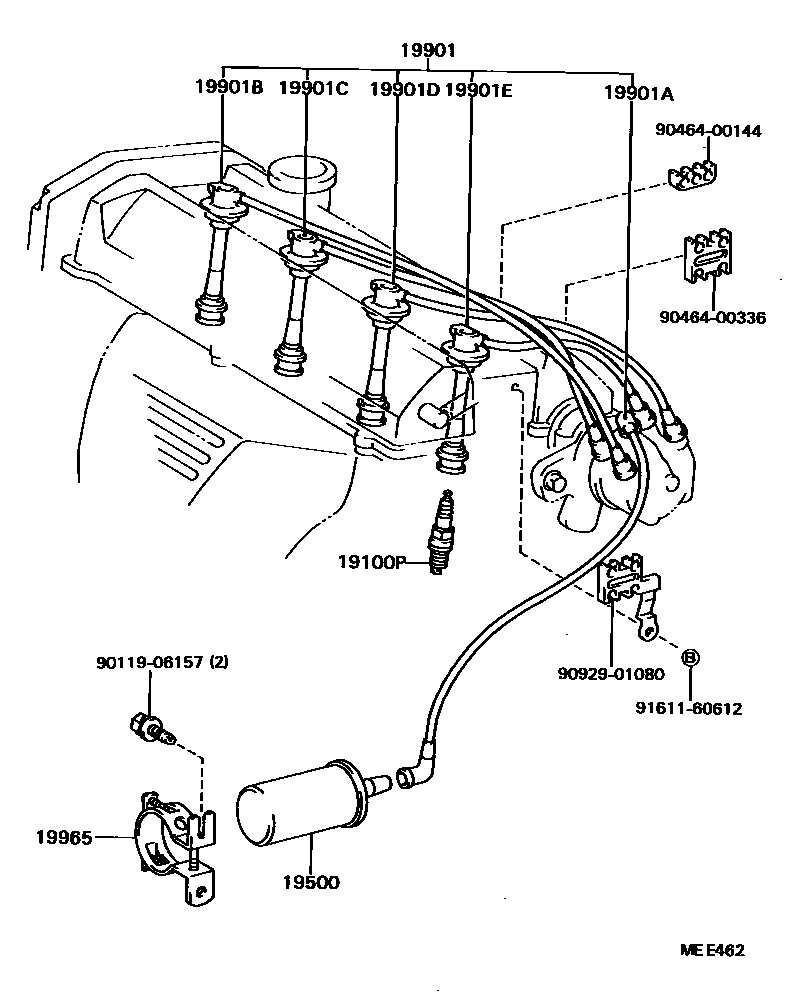

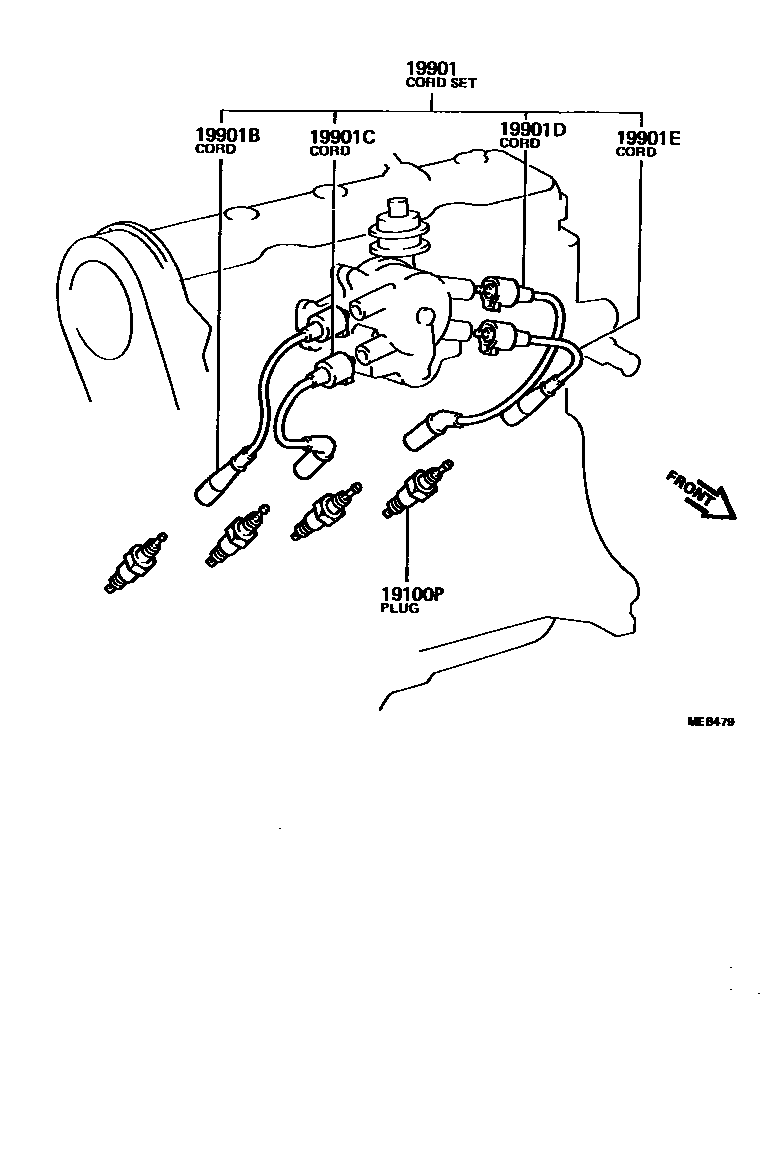

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01091 · 90919-01104 · 90919-01121 · 90919-01122 |
| 19500 | Ignition coil assembly | 90919-02113 |
| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64020 · 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21351 · 90919-22113 |
| 19901A | coil damping line | 90919-13230 |
| 19901B | No. 1 spark plug damper wire | 90919-12391 · 90919-12394 · 90919-12546 |
| 19901C | No. 2 spark plug damper wire | 90919-12392 · 90919-12547 |
| 19901D | No. 3 spark plug damper wire | 90919-12392 · 90919-12393 · 90919-12548 |
| 19901E | No. 4 spark plug damper wire | 90919-12394 · 90919-12549 |
| 19965 | No. 1 ignition coil band | 90919-03086 |
