Toyota CAMRY vacuum tube — Figure 1708

Toyota CAMRY EPC diagram 1708, vacuum tube, with 9 images and 30 PNC and OE references.

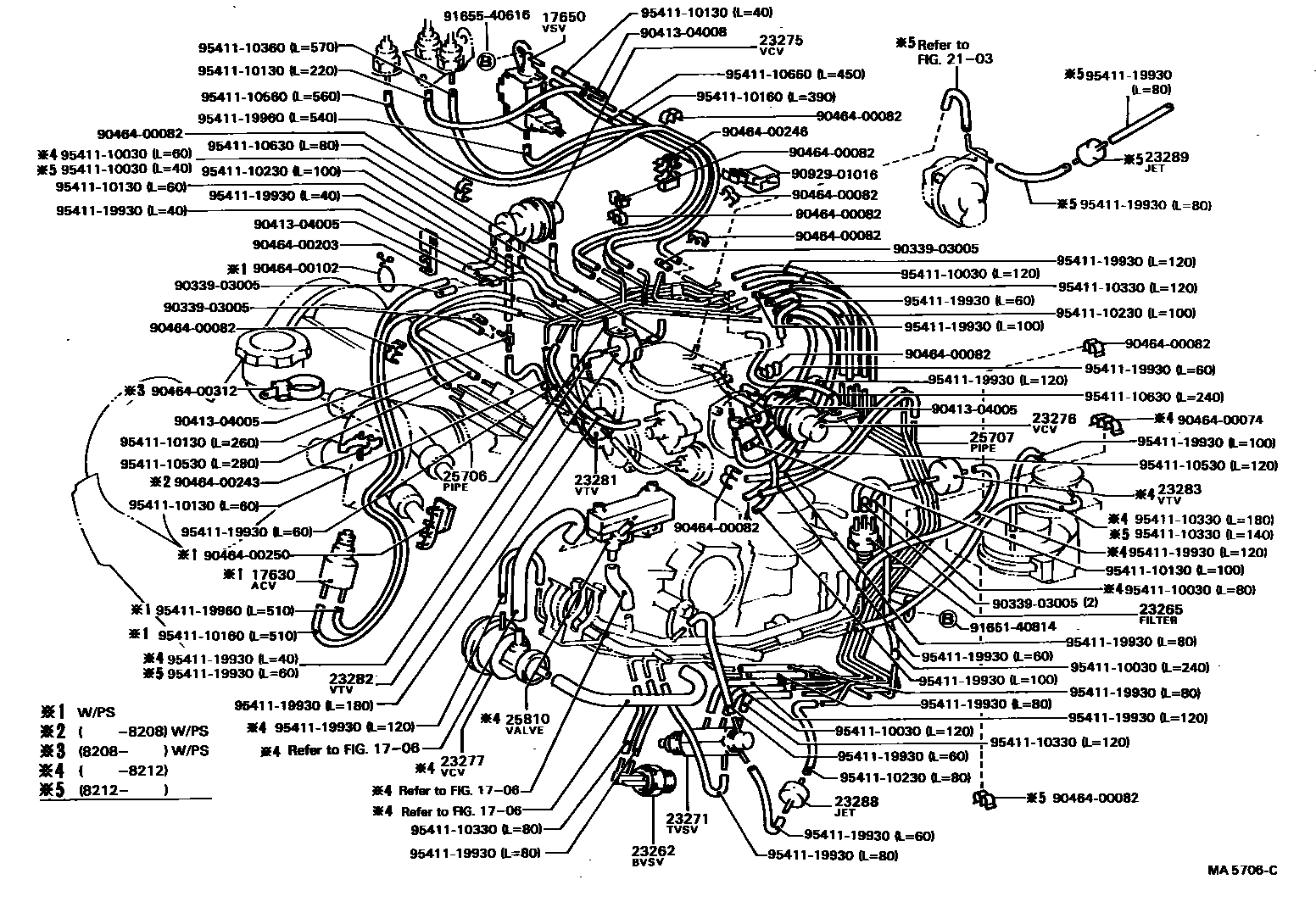

Toyota CAMRY vacuum tube EPC diagram — MA5706C — vacuum tube — MA5706C (198203 – 198406)

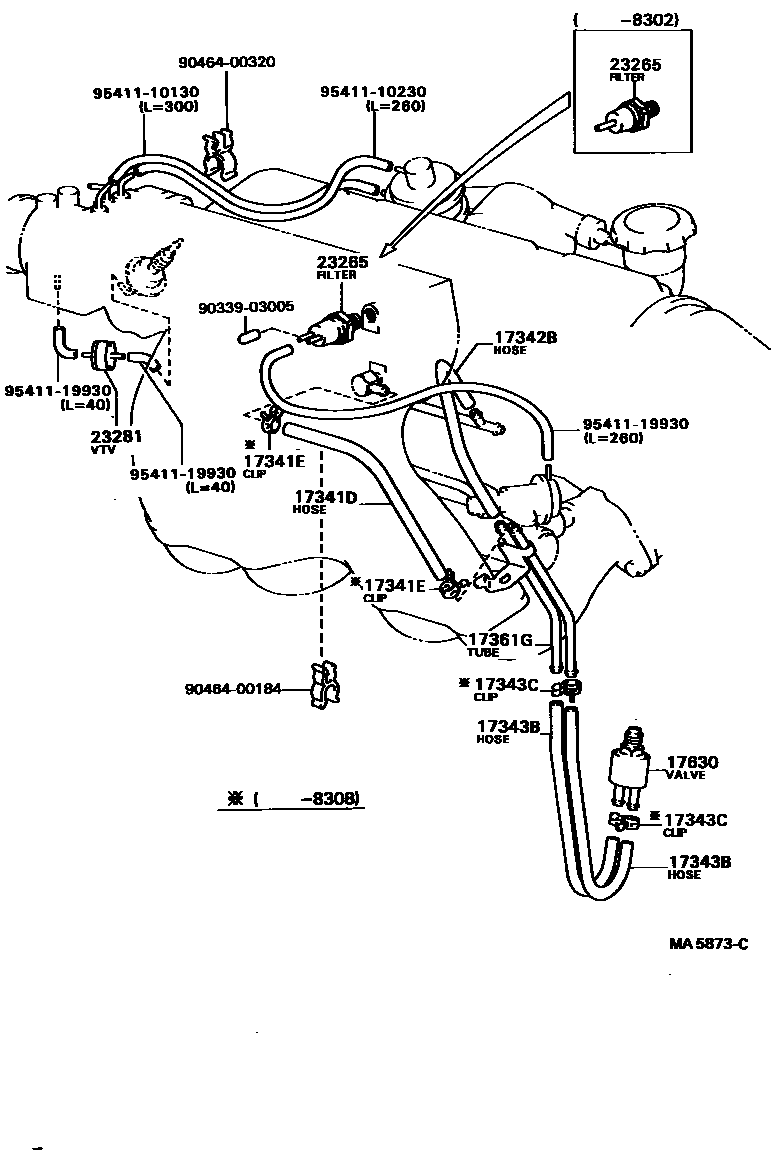

Toyota CAMRY vacuum tube EPC diagram — MA5873C — vacuum tube — MA5873C (198208 – 999999)

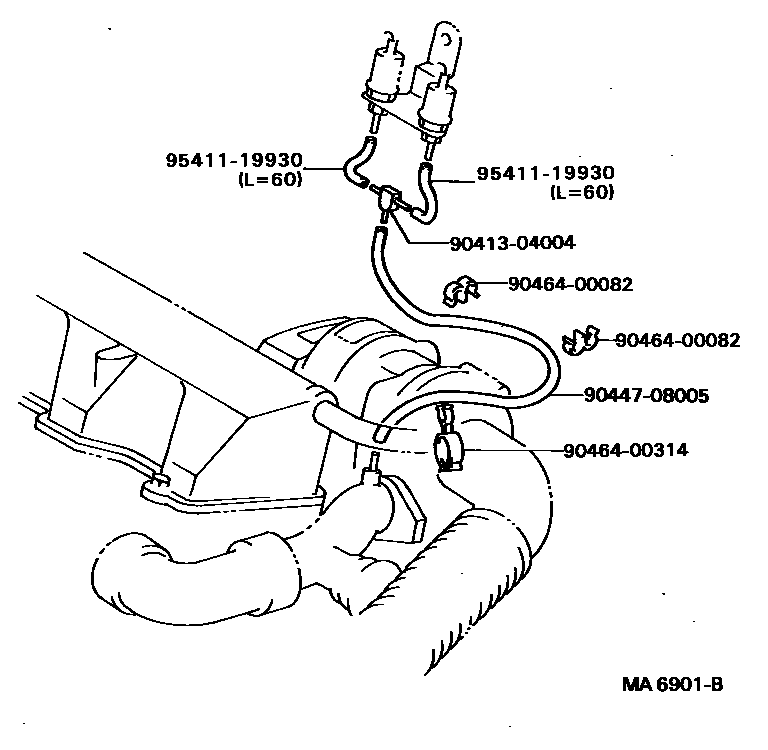

Toyota CAMRY vacuum tube EPC diagram — MA6901B — vacuum tube — MA6901B (198308 – 198508)

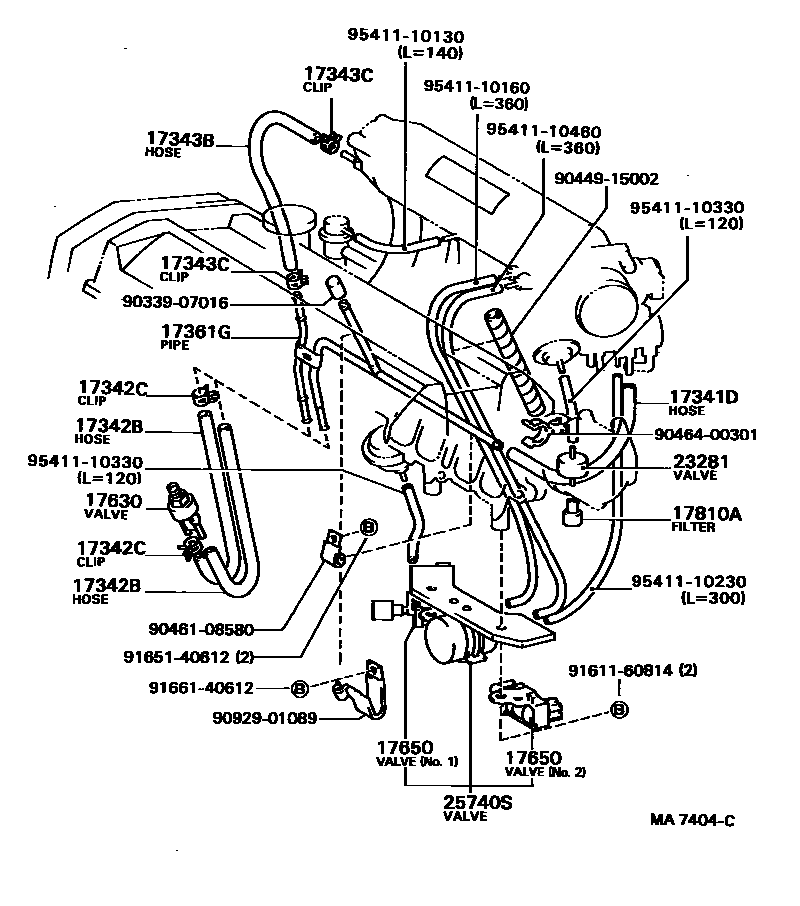

Toyota CAMRY vacuum tube EPC diagram — MA7404C — vacuum tube — MA7404C (198406 – 198507)

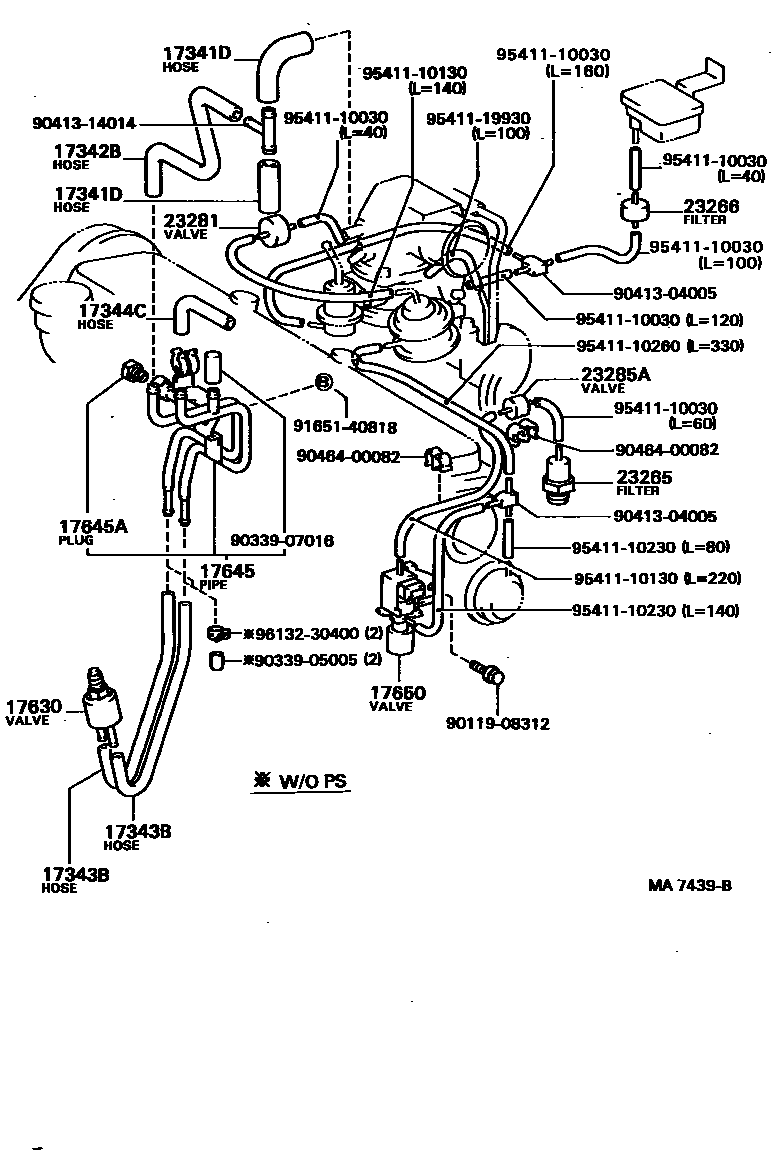

Toyota CAMRY vacuum tube EPC diagram — MA7439B — vacuum tube — MA7439B (198406 – 198508)

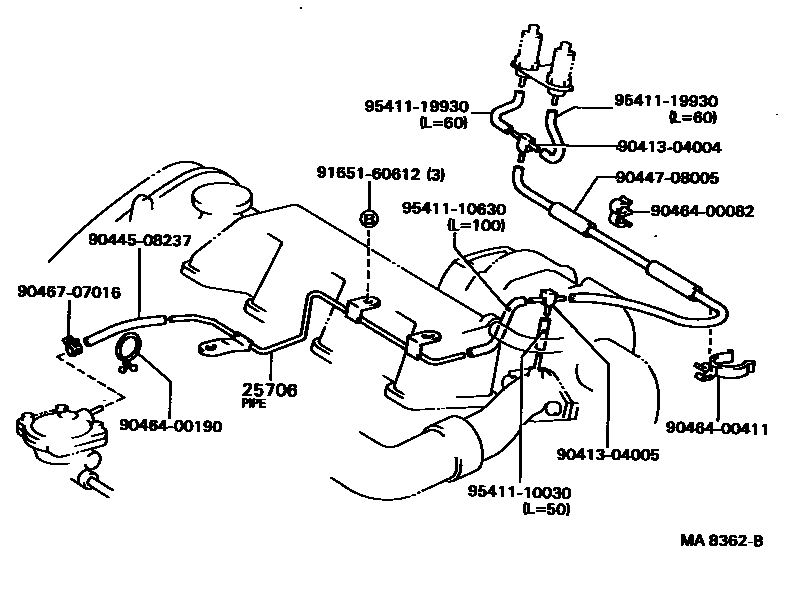

Toyota CAMRY vacuum tube EPC diagram — MA8362B — vacuum tube — MA8362B (198508 – 999999)

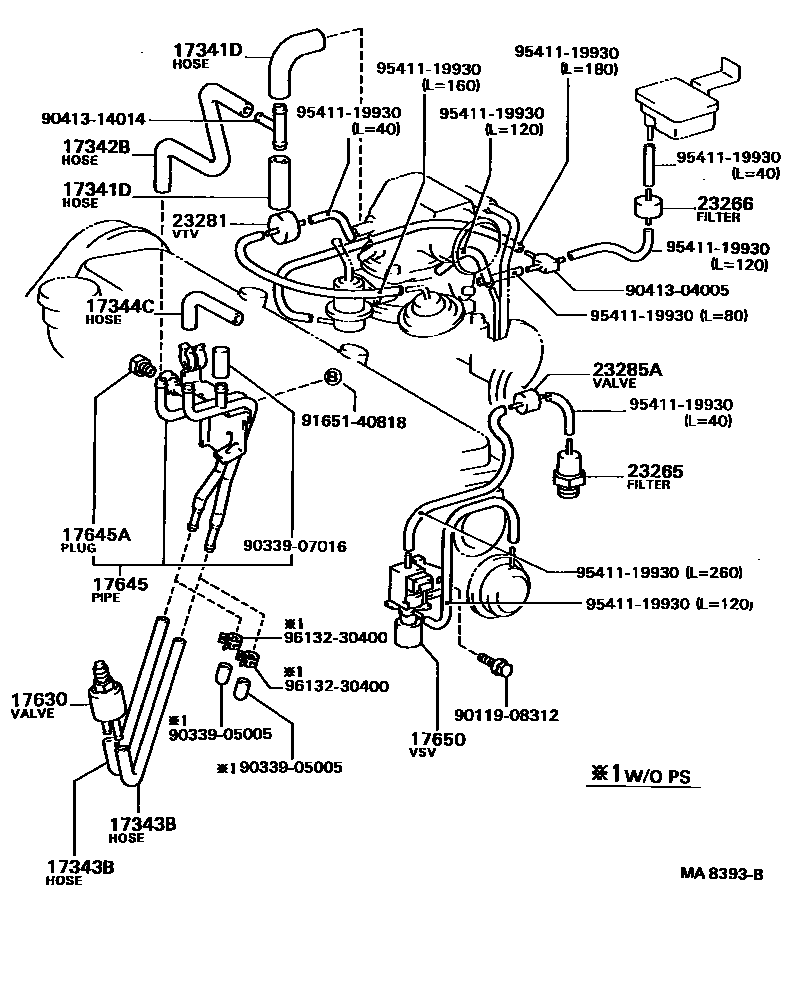

Toyota CAMRY vacuum tube EPC diagram — MA8393B — vacuum tube — MA8393B (198508 – 999999)

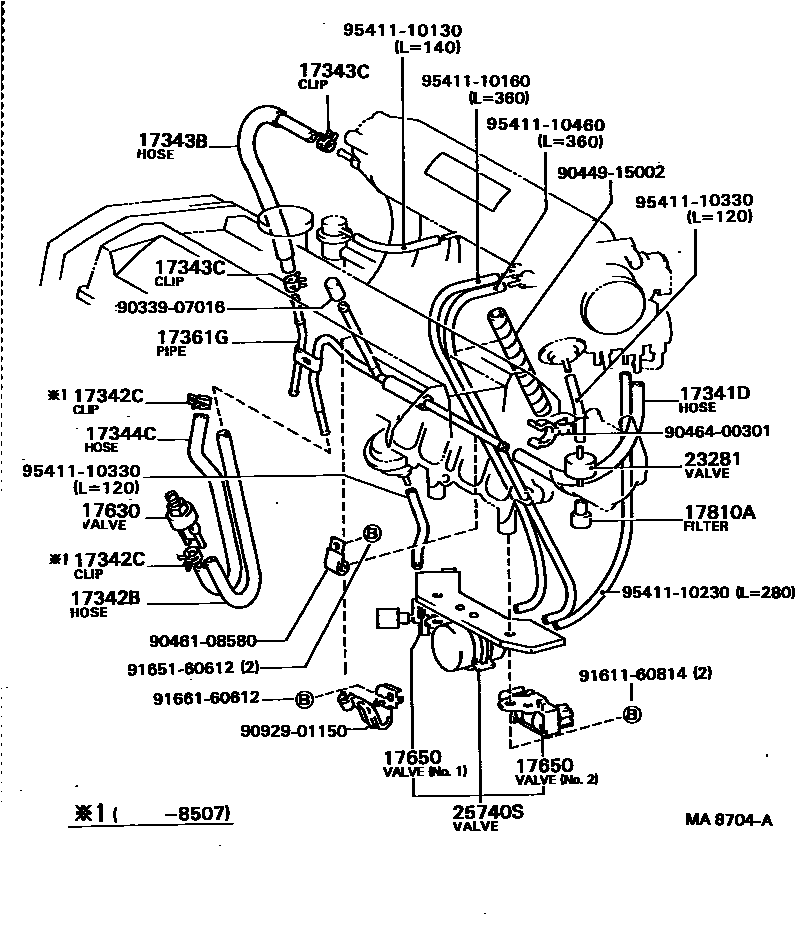

Toyota CAMRY vacuum tube EPC diagram — MA8704A — vacuum tube — MA8704A (198507 – 999999)

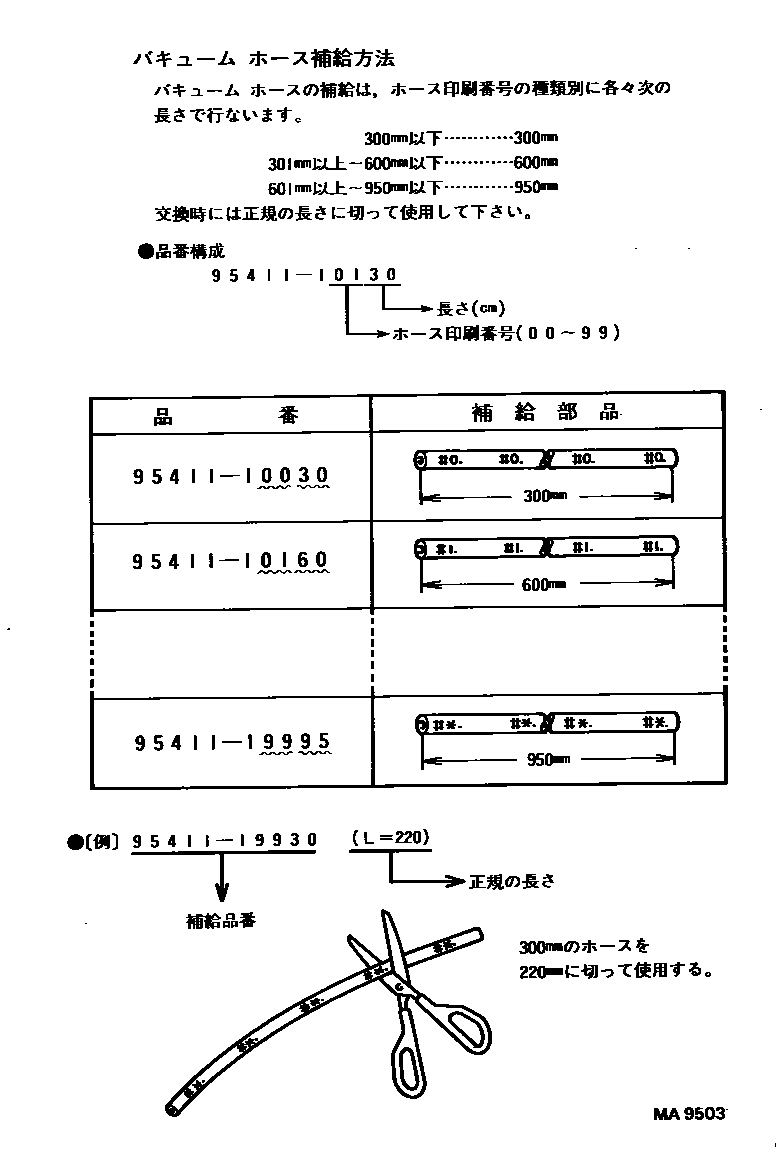

Toyota CAMRY vacuum tube EPC diagram — MA9503 — vacuum tube — MA9503 (198203 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17341D	No. 1 hose (for idle boost)	17341-63030 · 17341-63050 · 17341-88360 · 90445-11040 · 90445-19002
17341E	Clamp No. 1 (for idle lift hose)	96132-30400
17342B	No. 2 hose (for idle boost)	17342-74010 · 17342-88360 · 17344-63010 · 90445-13006
17342C	Clamp No. 2 (for idle lift hose)	96132-30400
17343B	No. 3 hose (for idle speed boost)	17343-74010 · 17343-88360 · 17343-88361
17343C	Clamp No. 3 (for idle lifting hose)	96132-30400
17344C	No. 4 hose (for idle speed boost)	17344-88360 · 17345-63010
17361G	Air pipe (for idle boost)	17361-74010 · 17361-88360 · 17361-88361
17630	Air control valve assembly	17630-15010 · 17630-28010 · 17630-70020
17645	idle riser	17645-63010 · 17645-63020
17645A	Screw plug (for idle riser)	90072-34107
17650	Vacuum switch valve assembly	89570-20220 · 89570-32010 · 89570-88360 · 89570-88365 · 90910-12011
17810A	air filter assembly	90925-06006
23262	No. 1 bimetallic vacuum switch valve	90925-05047
23265	No. 1 gas filter	90917-11022 · 90917-11023 · 90917-11024
23266	No. 2 gas filter	90917-11021
23271	No. 1 thermostatic vacuum switching valve	90925-02075
23275	Vacuum control valve No. 1	90925-03135
23276	Vacuum control valve No. 2	90925-03136 · 90925-03139
23277	No. 3 vacuum control valve	90925-03140
23281	Vacuum Transfer Valve No. 1	90925-01015 · 90925-01029 · 90925-01041 · 90925-01062
23282	Vacuum Transfer Valve No. 2	90925-01092
23283	Vacuum Transfer Valve No. 3	90925-01062
23285A	No. 1 one-way valve	90917-10049
23288	Nozzle No. 1	90925-04004
23289	Nozzle No. 2	90925-04006
25706	No. 1 vacuum transfer tube sub-assembly	25706-63040 · 25706-63041 · 25706-64020
25707	No. 2 vacuum transfer pipe sub-assembly	25707-63030
25740S	Air control valve assembly (for idle speed control)	25740-88360
25810	Bimetal valve assembly	25810-63010
