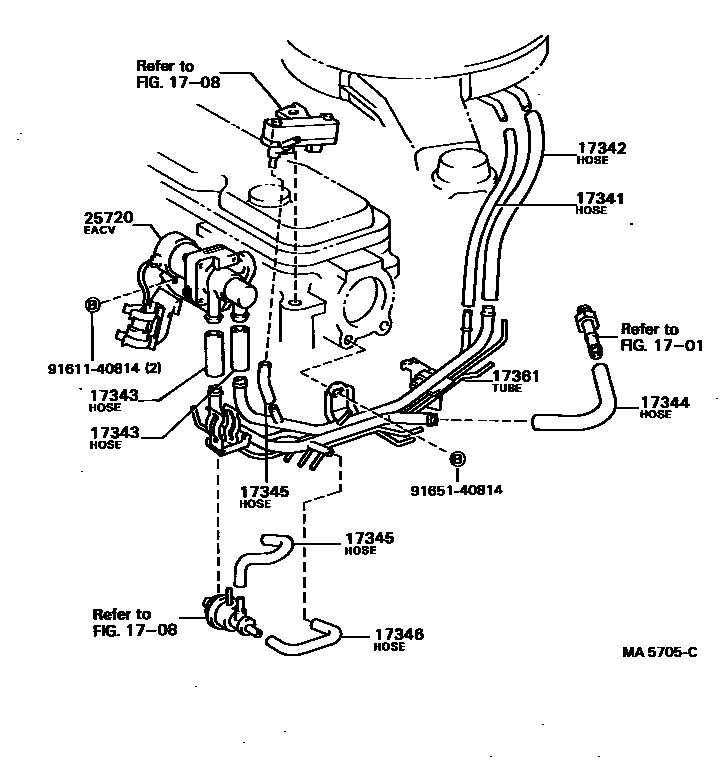

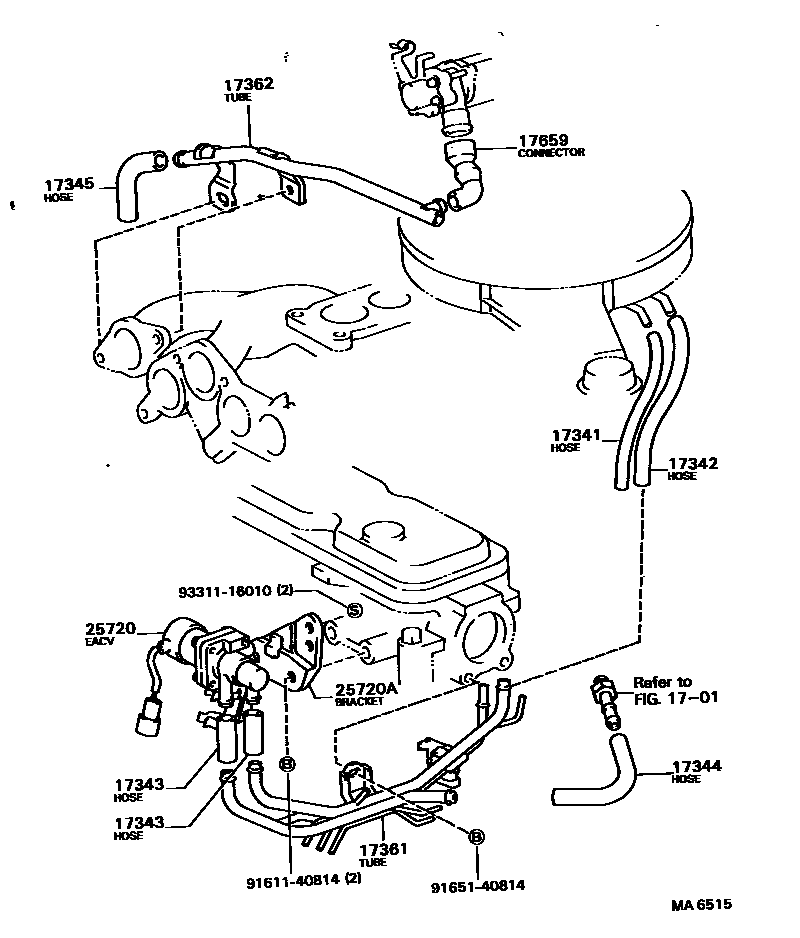

Toyota CAMRY 歧管喷气系统 — Figure 1706
Toyota CAMRY EPC diagram 1706, 歧管喷气系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 90445-11961 |
| 17342 | Hoses No. 2 (for air injection systems) | 90445-15006 |
| 17343 | No. 3 hose (for air injection system) | 90445-16012 |
| 17344 | No. 4 hose (for air injection system) | 90445-16009 · 90445-17055 |
| 17345 | No. 5 hose (for air injection system) | 17342-63010 · 17342-63030 · 90445-11059 |
| 17346 | No. 6 hose (for air injection system) | 17343-63010 |
| 17361 | air tube | 17361-63010 · 17361-63011 |
| 17362 | No. 2 air pipe | 17362-63010 |
| 17659 | Air connector (for air tube) | 17659-63010 |
| 25720 | Electronic air control valve assembly | 25704-63010 · 25720-63020 |
| 25720A | Electronic air control valve bracket | 25724-63020 |
