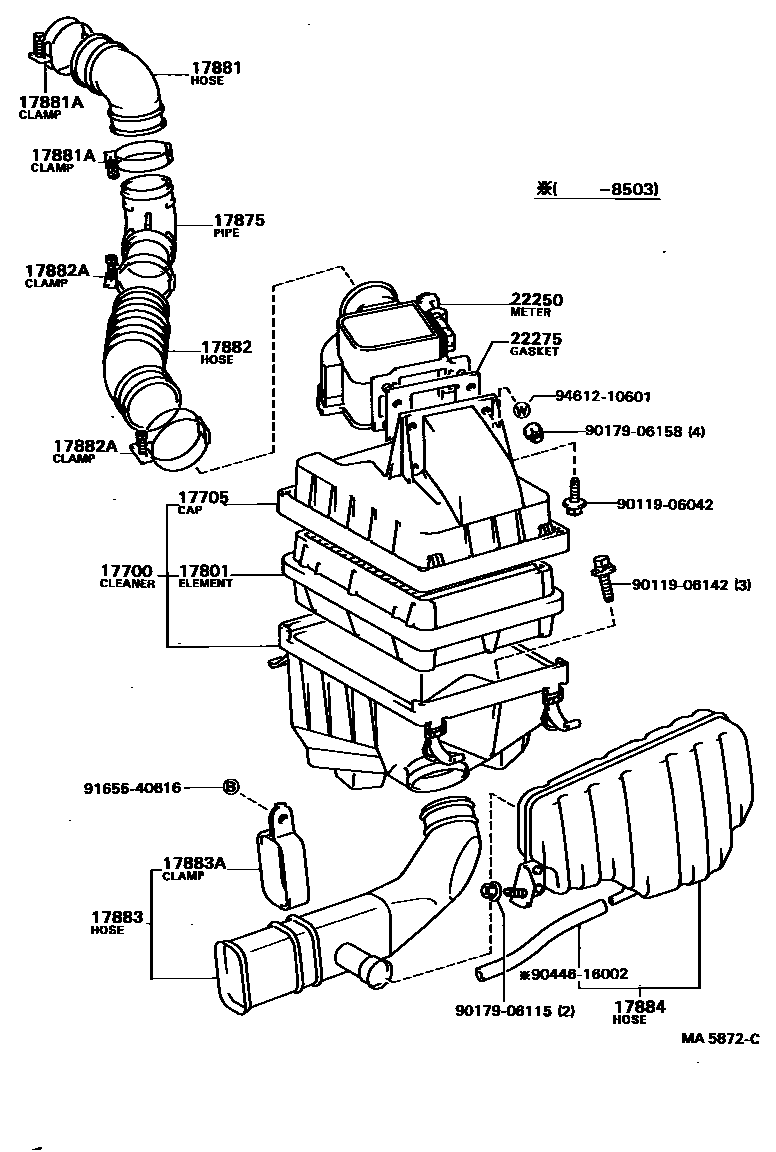

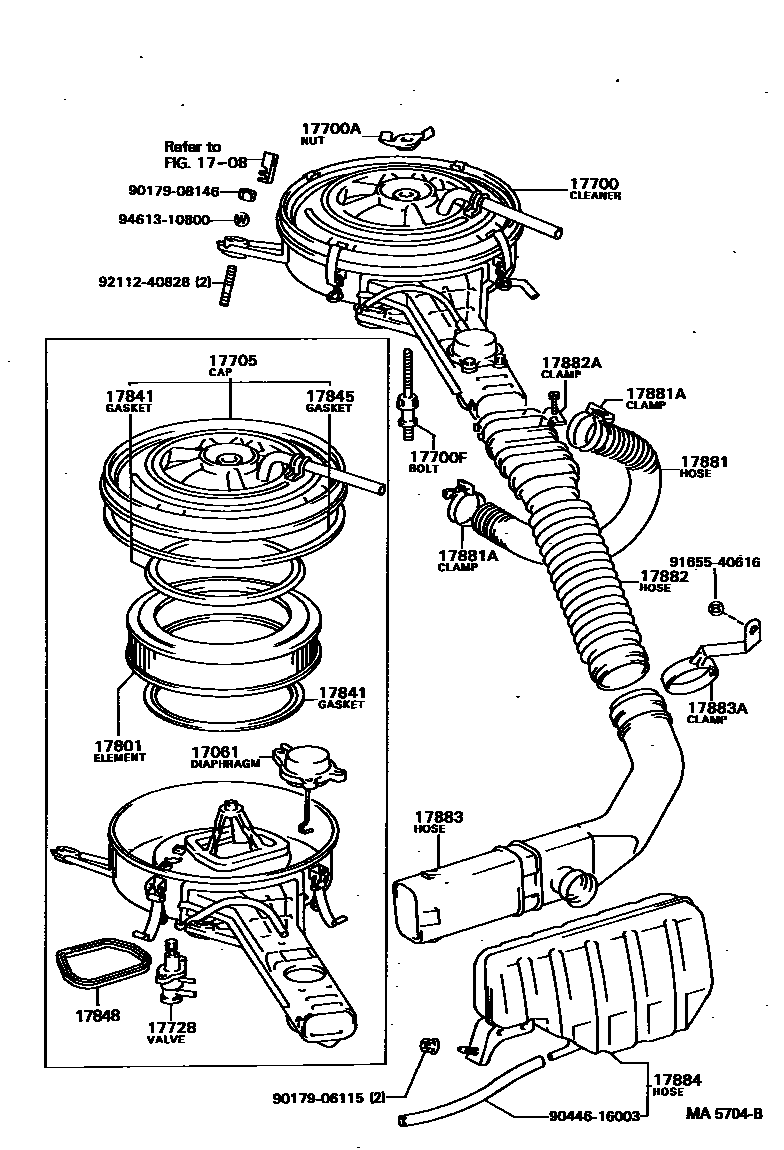

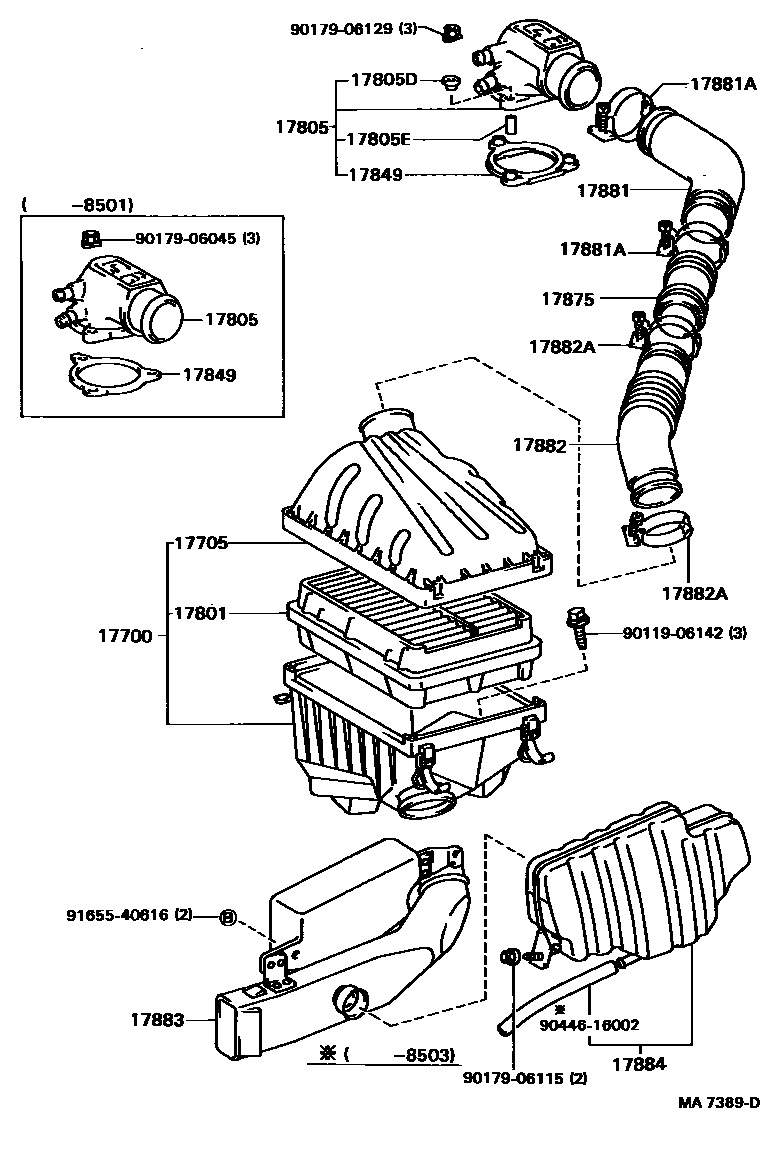

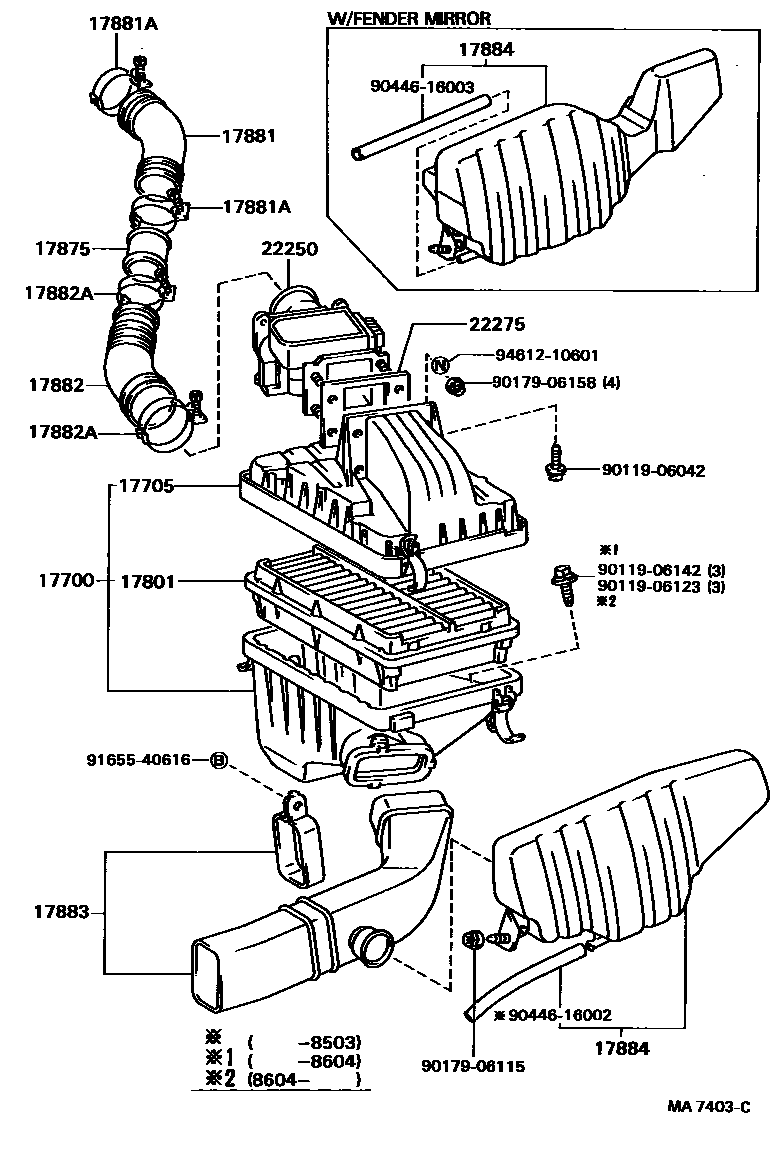

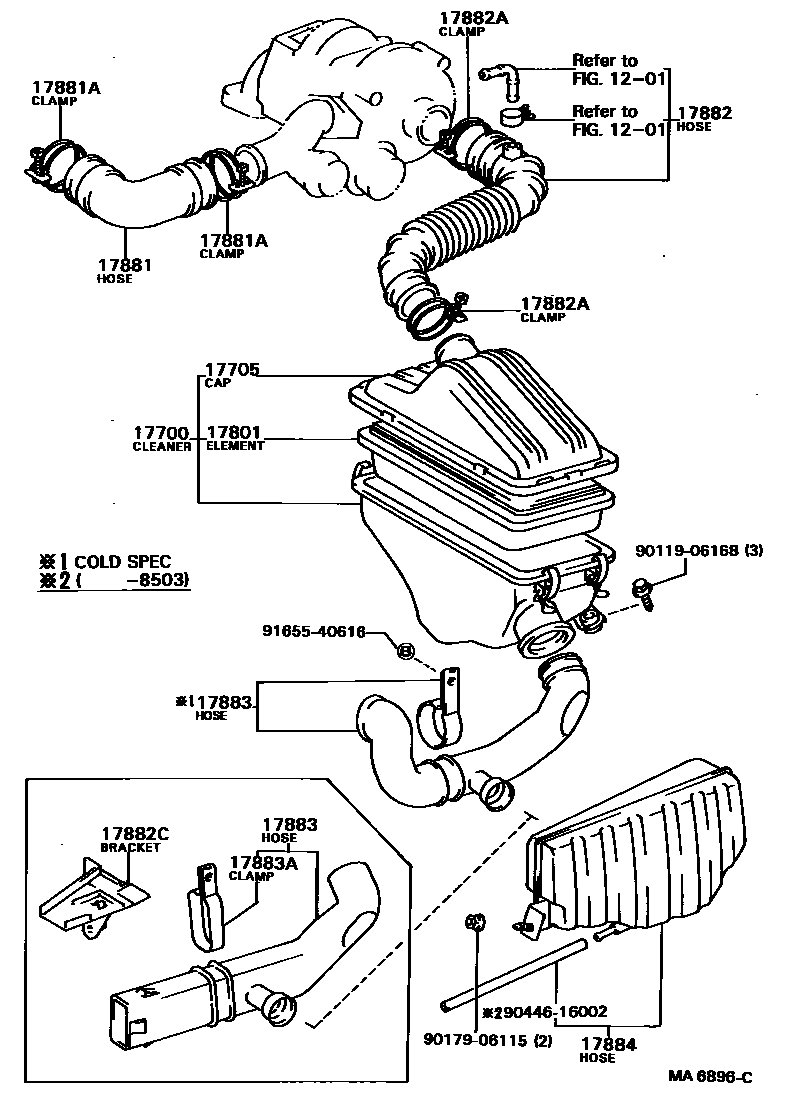

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-63020 |
| 17700 | air filter assembly | 17700-63020 · 17700-63022 · 17700-63080 · 17700-64100 · 17700-64140 · 17700-74010 · 17700-74030 · 17700-74031 |
| 17700A | Wing nut (for air cleaner) | 90175-06011 |
| 17700F | Stud bolt (for securing air filter) | 90116-06026 |
| 17705 | Air filter cover sub-assembly | 17705-63020 · 17705-63060 · 17705-64030 · 17705-74010 · 17705-74030 · 17705-74031 |
| 17728 | thermostat valve | 17728-63020 |
| 17801 | Air filter element sub-assembly | 17801-25010 · 17801-64040 · 17801-64050 · 17801-74010 |
| 17805 | Intake connecting pipe sub-assembly | 17805-63010 · 17860-63010 |
| 17805D | Gasket (for air intake connection pipe) | 90480-12011 |
| 17805E | Collar (for intake connecting pipe) | 90387-06029 |
| 17841 | filter liner | 17841-63010 |
| 17845 | air cleaner cover gasket | 17845-37020 · 17845-63020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-37011 |
| 17849 | Intake connecting pipe gasket | 17849-63010 · 17849-63011 |
| 17875 | Intake connecting pipe | 17875-63010 · 17875-74011 · 17875-74020 |
| 17881 | No. 1 air cleaner hose | 17341-64020 · 17881-63020 · 17881-63030 · 17881-74010 · 17881-74050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70001 · 96111-10460 · 96111-10710 · 96111-10780 |
| 17882 | No. 2 air cleaner hose | 17880-64040 · 17881-32010 · 17882-63050 · 17882-74010 · 17882-74030 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 · 90460-75001 · 96111-10670 · 96111-10710 · 96111-10780 · 96111-10800 · 96111-10900 |
| 17882C | Bracket (for cold air intake pipe) | 53849-32010 · 53849-32020 |
| 17883 | No. 3 air cleaner hose | 17880-32020 · 17882-32010 · 17882-32020 · 17882-32030 · 17882-32040 · 17882-32050 · 17882-32060 · 17882-32070 · 17882-32080 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01028 · 90460-60002 |
| 17884 | No. 4 air cleaner hose | 17883-32010 · 17883-32020 · 17883-32030 · 17883-32040 · 17883-32050 |
| 22250 | Intake air flow meter assembly | 22250-74010 · 22250-74040 · 22250-74041 |
| 22275 | air flow meter gasket | 22275-41010 · 22275-43010 |
