Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 2 images and 7 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MA4481B
Oil Filter — MA4481B (198203 – 999999)

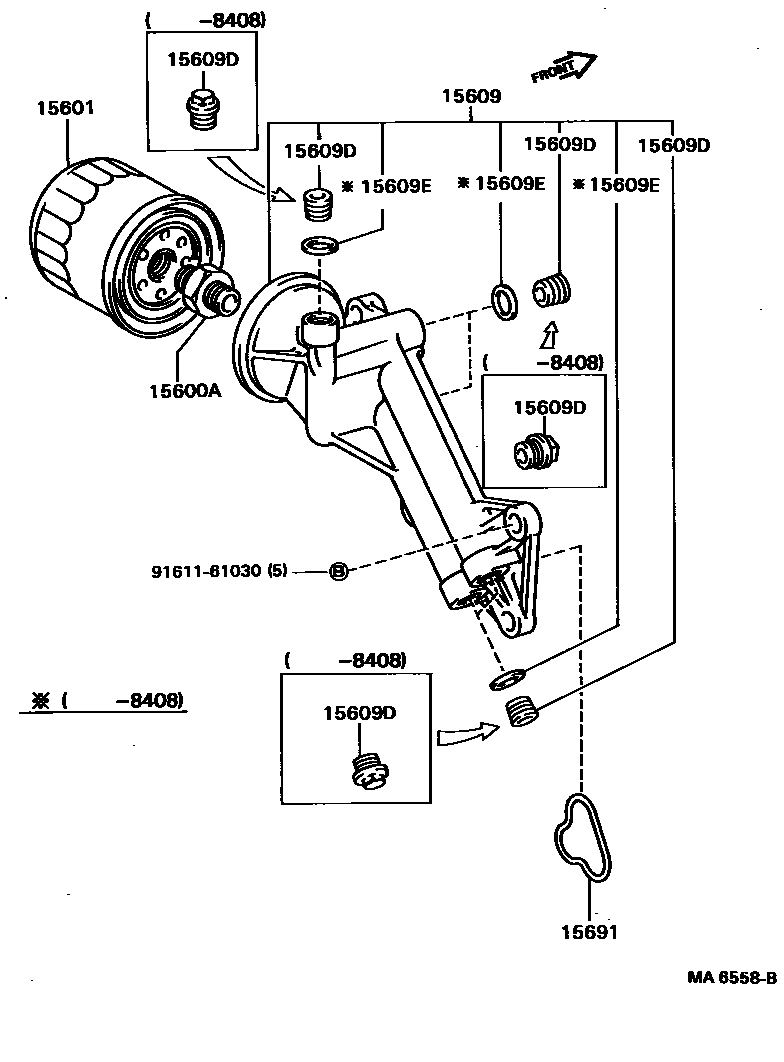

Toyota CAMRY Oil Filter EPC diagram — MA6558B
Oil Filter — MA6558B (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19002 · 90404-19004
15601Oil filter sub-assembly15600-25010 · 15601-13010 · 15601-13011
15609Oil filter bracket sub-assembly15608-64010
15609DStraight threaded plug with head (for oil filter bracket)90341-16009 · 90344-53002
15609EHeaded straight thread plug liner90430-16242
15621Oil filter body gasket15621-22010
15691oil filter gasket15691-64020
