Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 7 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — AS0439
Ventilation Hose — AS0439 (198406 – 999999)

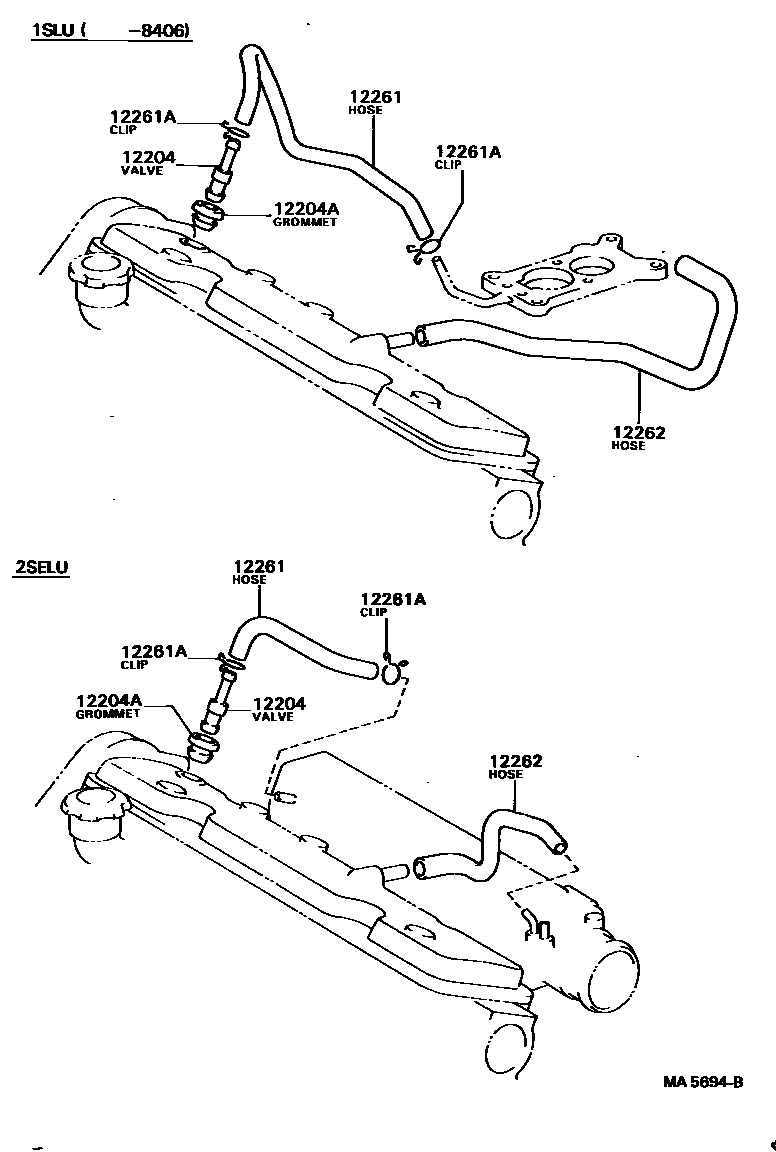

Toyota CAMRY Ventilation Hose EPC diagram — MA5694B
Ventilation Hose — MA5694B (198203 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MA6892
Ventilation Hose — MA6892 (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-28010 · 12204-63010
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-12002
12222BClip (for ventilation duct)96132-31000
12261Ventilation Hose12261-63020 · 12261-63030 · 12261-64040 · 12261-74010 · 12261-88360 · 12261-88361
12261AClip or clip (for vent hose)90467-14082 · 90467-15120
12262Ventilation hose No. 212262-63010 · 12262-63020 · 12262-74010
